480L AIR INTAKE PIPE GSX R1000RZAL8 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

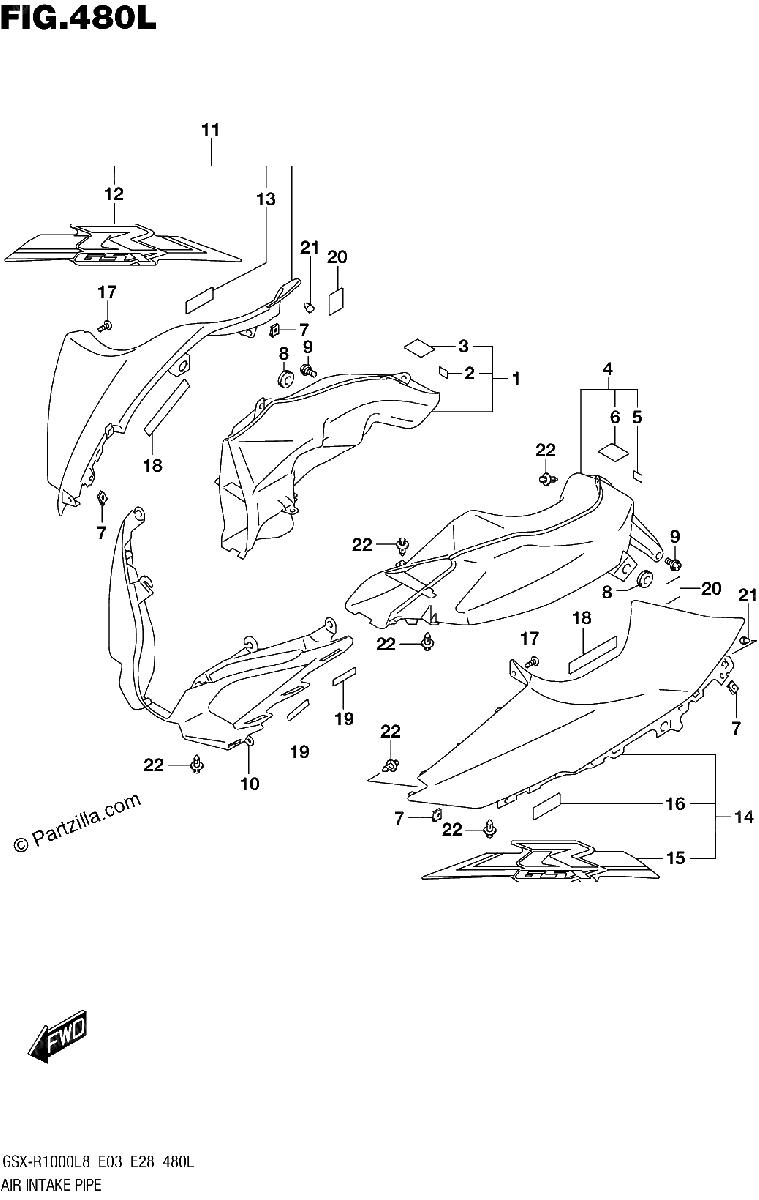

Diagrama de 480L AIR INTAKE PIPE GSX R1000RZAL8 E03

Repuestos

#1
94420-17K00
PIPE, AIR INTAKE RH
$75.16¢37 581
1
#2
63115-37H00
.CUSHION, PIVOT COVER NO.1
$4.45¢2 225
1
#3
36930-60A10
CUSHION, COVER
$3.65¢1 825
1
#4
94430-17K00
PIPE, AIR INTAKE LH
$97.34¢48 669
1
#5
63115-37H00
.CUSHION, PIVOT COVER NO.1
$4.45¢2 225
1
#6
36930-60A10
CUSHION, COVER
$3.65¢1 825
1
#7
09148-05052
NUT
$3.96¢1 981
1
#8
09320-08028
CUSHION
$3.65¢1 825
1
#9
09111-06106
BOLT (6X12)
$2.88¢1 438
1
#13
73415-70A00
.PAD
$1.95¢975
1
#16
73415-70A00
.PAD
$1.95¢975
1
#17
09132-05050
SCREW (5X12)
$2.40¢1 200
1
#18
36930-82010
PROTECTOR, HARNESS
$3.75¢1 875
1
#19
94476-38C00
CUSHION, HEAT SHIELD
No Disponible
1
#20
94633-31J00
.CUSHION, COVER SIDE
$3.16¢1 581
1
#21
09321-06013
CUSHION
$1.98¢988
1
#22
09409-06314
CLIP
$3.60¢1 800
1
#10-1
94671-17K00-YKV
COVER, INTAKE (BLACK) *{FOR YVB}*
$116.85¢58 425
1
#10-2
94671-17K00-YWW
COVER, INTAKE (WHITE) *{FOR YWW}*
$121.94¢60 969
1
#11-1
94670-17K10-YVB
COVER, INTAKE RH (BLACK)
$244.91¢122 456
1
#11-2
94670-17K10-YWW
COVER, INTAKE RH (WHITE)
$244.91¢122 456
1
#12-1
68275-17K10-BQR
TAPE, INTAKE COVER RH *{FOR YVB}*
$35.75¢17 875
1
#12-2
68275-17K10-BQQ
TAPE, INTAKE COVER RH *{FOR YWW}*
$35.75¢17 875
1
#14-1
94680-17K10-YVB
COVER, INTAKE LH (BLACK)
$254.25¢127 125
1
#14-2
94680-17K10-YWW
COVER, INTAKE LH (WHITE)
$244.91¢122 456
1
#15-1
68276-17K10-BQR
TAPE, INTAKE COVER LH *{FOR YVB}*
No Disponible
1
#15-2
68276-17K10-BQQ
TAPE, INTAKE COVER LH *{FOR YWW}*
$35.75¢17 875
1
