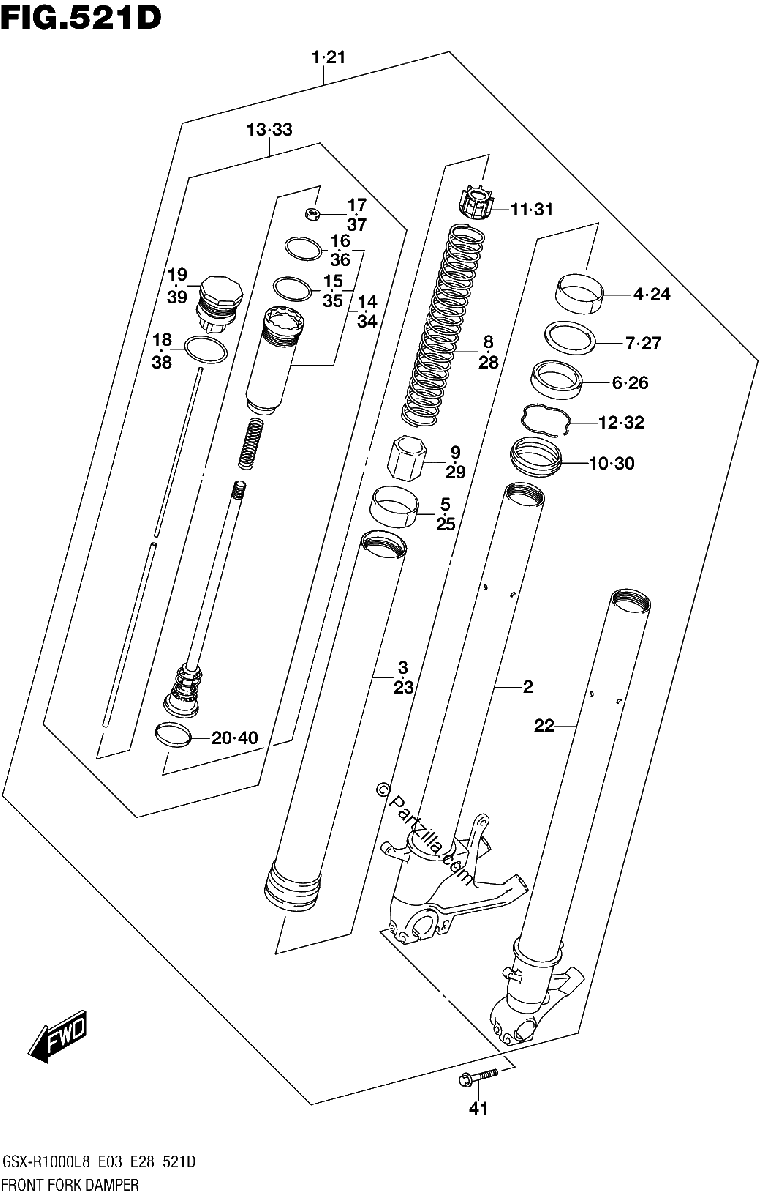

FRONT FORK DAMPER GSX R1000AL8 E28
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY, FRONT FORK RH
$1663.59¢831 794
#2
TUBE, INNER RH
$772.06¢386 031
#3
TUBE, OUTER
$663.66¢331 831
#4
.BUSH, GUIDE
$16.94¢8 469
#5
.BUSH, SLIDE
$18.10¢9 050
#6
.SEAL, OIL
$32.09¢16 044
#7
.SPACER, SEAL
$10.35¢5 175
#8
.SPRING
No Disponible
#9
.COLLAR, SPRING
$88.29¢44 144
#10
.SEAL, DUST
$31.70¢15 850
#11
.COLLAR, SPRING
No Disponible
#12
.RING
$8.61¢4 306
#13
ROD, PISTON
No Disponible
#14
CASE, ROD GUIDE
$151.71¢75 856
#15
...RING, PISTON
$24.82¢12 413
#16
...O-RING
$11.21¢5 606
#17
..NUT
No Disponible
#18
..O RING
$8.49¢4 244
#19
BOLT
$192.21¢96 106
#20
..RING, PISTON
$17.40¢8 700
#21
DAMPER ASSY, FRONT FORK LH
$1998.60¢999 300
#22
TUBE, INNER LH
$772.06¢386 031
#23
TUBE, OUTER
$663.66¢331 831
#24
.BUSH, GUIDE
$16.94¢8 469
#25
.BUSH, SLIDE
$18.10¢9 050
#26
.SEAL, OIL
$32.09¢16 044
#27
.SPACER, SEAL
$10.35¢5 175
#28
.SPRING
No Disponible
#29
.COLLAR, SPRING
$88.29¢44 144
#30
.SEAL, DUST
$31.70¢15 850
#31
.COLLAR, SPRING
No Disponible
#32
.RING
$8.61¢4 306
#33
ROD, PISTON
No Disponible
#34
CASE, ROD GUIDE
$151.71¢75 856
#35
...RING, PISTON
$24.82¢12 413
#36
...O-RING
$11.21¢5 606
#37
..NUT
No Disponible
#38
..O RING
$8.49¢4 244
#39
BOLT
$192.21¢96 106
#40
..RING, PISTON
$17.40¢8 700
#41
BOLT
$7.09¢3 544
