550A REAR WHEEL DR Z125L8 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

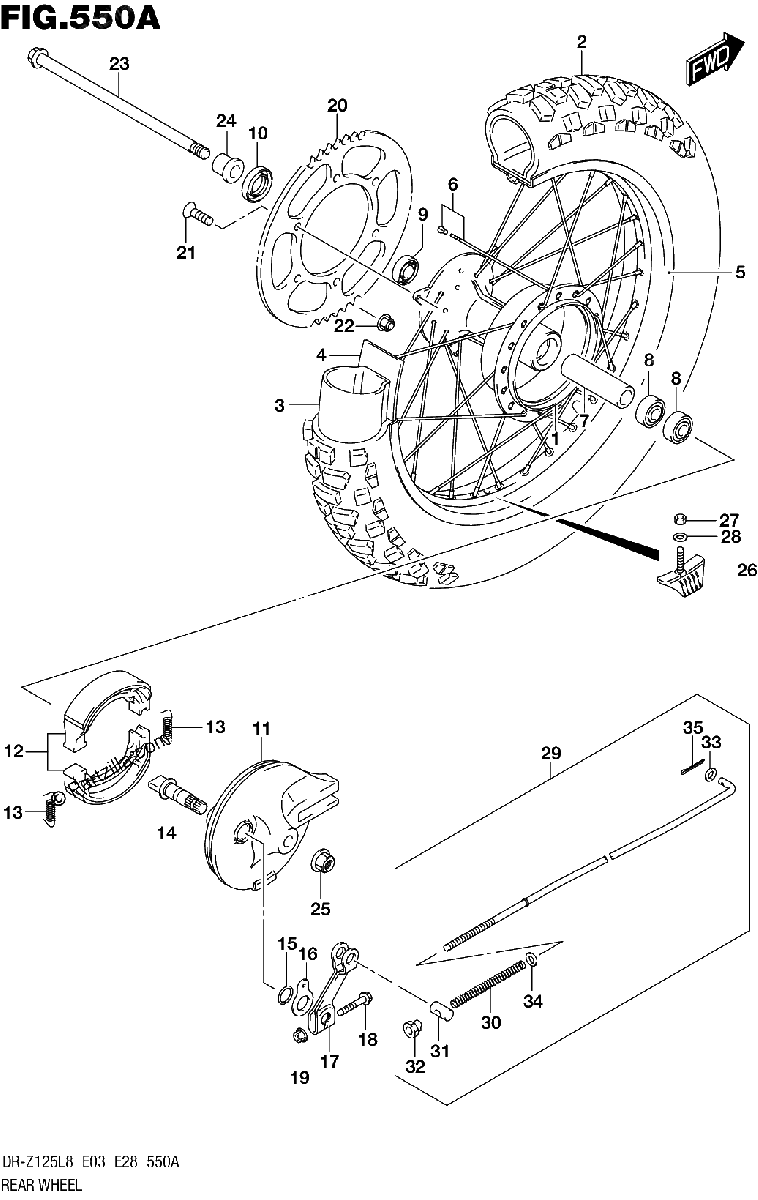

Diagrama de 550A REAR WHEEL DR Z125L8 E28

Repuestos

#1
64110-08G10
HUB, REAR WHEEL
$532.68¢266 340
1
#2
65110-08G00
TIRE, REAR (90/100-14 49M) | XB211 IRC
$160.88¢80 443
1
#3
65200-08G00
TUBE ASSY, WHEEL INNER
$32.28¢16 140
1
#4
65261-08G20
PROTECTOR, WHEEL INNER TUBE
No Disponible
1
#5
65311-08G20
RIM, REAR WHEEL (14X1.60)
$381.37¢190 687
1
#6
65320-08G20
SPOKE SET, REAR WHEEL
$92.09¢46 046
1
#7
09180-12151
SPACER (12.5X19X45.5)
$13.80¢6 900
1
#8
09262-12040
BEARING
$15.92¢7 958
1
#9
08123-63017
BEARING | LH
$15.25¢7 624
1
#10
09283-20025
OIL SEAL (20X37X7)
$6.20¢3 099
1
#11
64210-08G00
PANEL, REAR BRAKE ANCHOR
$223.70¢111 849
1
#12
54401-43840
SHOE SET, BRAKE
$34.89¢17 446
1
#13
09443-07044
SPRING
$3.36¢1 679
1
#14
64441-13G00
CAM, BRAKE
$30.11¢15 053
1
#15
09280-14011
O RING (D:2.5,ID:13.8)
$5.15¢2 576
1
#16
54492-13G00
PLATE, BRAKE LINING INDICATOR
$6.38¢3 191
1
#17
64451-08G00
LEVER, REAR BRAKE CAM
$33.73¢16 865
1
#18
01550-0635A
BOLT
$2.77¢1 386
1
#19
08316-1006A
NUT
$2.62¢1 311
1
#20
64511-08G00
SPROCKET, REAR (NT:51)
$76.27¢38 134
1
#21
09120-08010
BOLT (8X30.5)
$2.79¢1 397
1
#22
08319-3108A
NUT
$2.77¢1 386
1
#23
64711-08G00
AXLE, REAR
$45.39¢22 695
1
#24
64751-08G00
SPACER, AXLE
$15.74¢7 872
1
#25
08319-3112A
NUT
$4.05¢2 024
1
#26
65270-08G00
STOPPER, BEAD
$67.99¢33 994
1
#27
08310-0008A
NUT
$2.23¢1 116
1
#28
08322-0108A
WASHER
$2.28¢1 138
1
#29
43300-08G00
ROD ASSY, REAR BRAKE
$19.96¢9 982
1
#30
09440-09004
.SPRING
$2.39¢1 196
1
#31
09209-11002
.PIN (11X18)
$2.52¢1 259
1
#32
09150-06010
.NUT
$3.36¢1 679
1
#33
08322-0105A
WASHER
$2.20¢1 098
1
#34
08322-0106A
WASHER
$2.20¢1 098
1
#35
04111-2020A
PIN, COTTER
$1.46¢730
1
