545A REAR SHOCK ABSORBER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

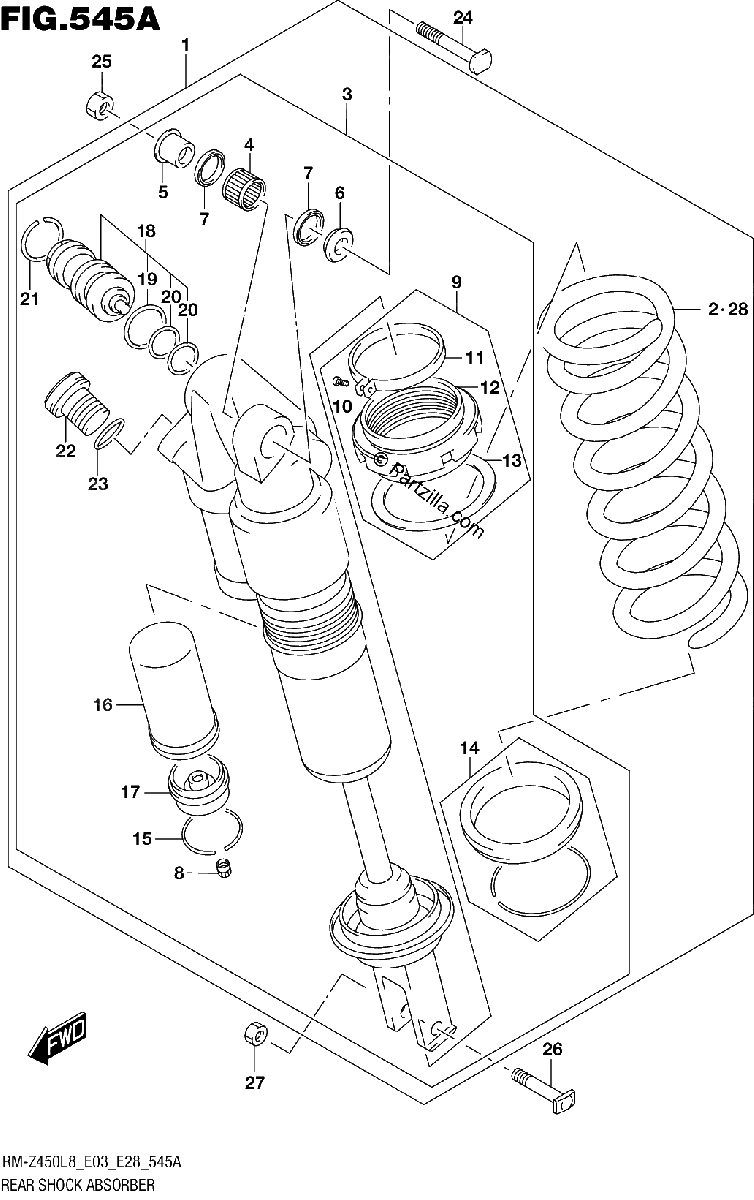

Diagrama de 545A REAR SHOCK ABSORBER

Repuestos

#1
62100-37K10-019
ABSORBER ASSY, RR SHOCK (BLACK)
$1700.39¢850 195
1
#2
62211-37K00-019
.SPRING, REAR
$254.53¢127 265
1
#3
62210-37K10
.DAMPER REAR
$967.53¢483 765
1
#4
09263-16033
.BEARING (16X22X12)
$21.91¢10 954
1
#5
62684-36F00
.SPACER, UPPER BEARING RH
$28.66¢14 329
1
#6
62685-36F00
.SPACER, UPPER BEARING LH
$18.97¢9 487
1
#7
09284-16005
.OIL SEAL (16X22X2.5)
$7.51¢3 755
1
#8
52194-46686
.CAP
No Disponible
1
#9
62190-37K00
..ADJUSTER SET
$84.89¢42 446
1
#10
51579-29EC0
...BOLT, GUIDE BOOT
$3.54¢1 771
1
#11
62197-37K00
...LOCK, SPRING ADJUSTER
$11.10¢5 549
1
#12
62191-37K00
...ADJUSTER, SPRING
$53.99¢26 996
1
#13
62224-37K00
...SPRING SEAT
$22.00¢11 000
1
#14
62220-36F00
.SPRING SEAT SET
$106.86¢53 429
1
#15
62279-27C40
..RING, STOPPER
No Disponible
1
#16
62273-43D10
..BLADDER
$36.59¢18 297
1
#17
62275-37K00
..CAP, CHAMBER
$47.47¢23 736
1
#18
62130-37K00
..BOLT, PLUG
$156.23¢78 114
1
#19
62156-37K00
...O RING
$6.42¢3 209
1
#20
51134-28H40
...O RING
$6.07¢3 036
1
#21
62132-37K00
..RING, STOPPER
$7.44¢3 720
1
#22
62133-37K00
..CAP
$45.16¢22 580
1
#23
62154-37K00
..O RING
$3.08¢1 541
1
#24
62311-28H00
BOLT, RR SHOCK ABSORBER UPR
$12.22¢6 112
1
#25
09159-10067
NUT
$6.70¢3 352
1
#26
62221-37F30
BOLT, RR SHOCK ABSORBER LWR
$9.29¢4 646
1
#27
09159-10067
NUT
$6.70¢3 352
1
#28-1
62211-37K10-019
SPRING, REAR
$254.53¢127 265
1
#28-2
62211-37K20-019
SPRING, REAR
$254.53¢127 265
1
