550A REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

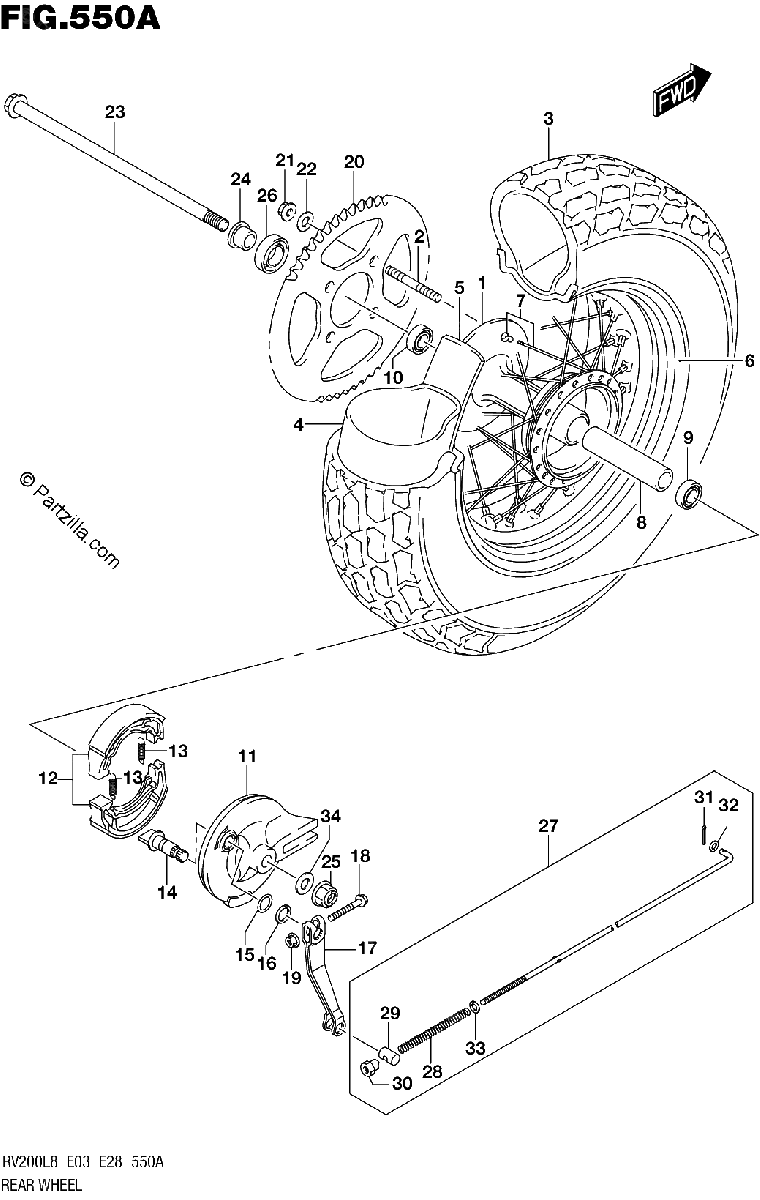

Diagrama de 550A REAR WHEEL

Repuestos

#1
64110-13G00
HUB, REAR WHEEL
$261.71¢130 856
1
#2
09108-10061
.STUD BOLT
$11.35¢5 675
1
#3
65110-13G10
TIRE, REAR (180/80-14M/C 78P)
No Disponible
1
#4
65200-13G00
TUBE ASSY, WHEEL INNER
$55.75¢27 875
1
#5
65261-13G00
PROTECTOR, WHEEL INNER TUBE
$8.41¢4 206
1
#6
65311-13G00
RIM, REAR WHEEL (14M/CXMT4.50
$501.16¢250 581
1
#7
65320-13G00
SPOKE SET, REAR WHEEL
$126.59¢63 294
1
#8
64731-13G00
SPACER, REAR HUB BEARING
$28.84¢14 419
1
#9
08143-62027
BEARING | RH
$18.81¢9 406
1
#10
08123-63027
BEARING | LH
$26.72¢13 362
1
#11
64210-13G10
PANEL, REAR BRAKE ANCHOR
$181.06¢90 531
1
#12
54402-35820
SHOE SET, BRAKE
$45.04¢22 519
1
#13
09443-07044
SPRING
$3.65¢1 825
1
#14
54441-29305
CAM, BRAKE
$27.03¢13 513
1
#15
09280-14003
O RING (D:2.4, ID:13.8)
$5.60¢2 800
1
#16
09160-14055
WASHER (14.5X22X1.6)
$3.13¢1 563
1
#17
64451-13G10
LEVER, REAR BRAKE CAM
No Disponible
1
#18
01550-0635B
BOLT
$3.57¢1 787
1
#19
08316-1006B
NUT
$3.25¢1 625
1
#20
64511-13G00
SPROCKET, REAR (NT:46)
$90.15¢45 075
1
#21
08319-3110A
NUT
$3.55¢1 775
1
#22
08322-01107
WASHER
$2.45¢1 225
1
#23
64711-13G00
AXLE, REAR
$59.04¢29 519
1
#24
64751-13G10
SPACER, REAR AXLE
No Disponible
1
#25
08319-3114A
NUT
$11.53¢5 763
1
#26
09284-24001
OIL SEAL (24X43X6)
$10.56¢5 281
1
#27
43300-13G30
ROD ASSY, RR BRAKE
$21.65¢10 825
1
#28
09440-09004
.SPRING
$2.60¢1 300
1
#29
09209-11002
.PIN (11X18)
$2.74¢1 369
1
#30
09150-06010
.NUT
$3.65¢1 825
1
#31
04111-2020A
PIN, COTTER
$1.59¢794
1
#32
08322-0105B
WASHER
$2.92¢1 463
1
#33
08322-0106B
.WASHER
$2.92¢1 463
1
#34
09160-15039
WASHER (15.5X30X3.2)
$2.94¢1 469
1
