TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

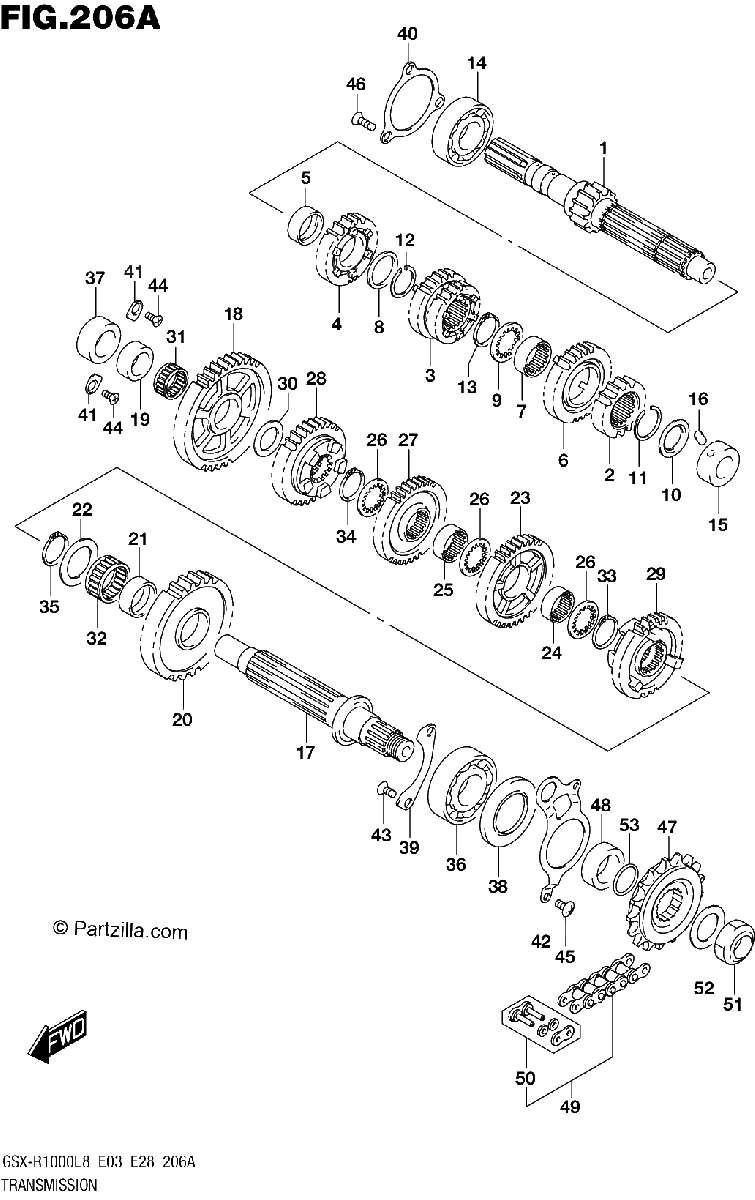

Diagrama de TRANSMISSION

Repuestos

#1
24120-17K00
SHAFT, CNTR (NT:16)
$358.40¢179 200
1
#2
24221-40F30
GEAR, 2ND DRIVE (NT:19)
$159.41¢79 706
1
#3
24231-47H10
GEAR, 3RD & 4TH DRIVE (NT:21/24)
$209.40¢104 700
1
#4
24251-47H20
GEAR, 5TH DRIVE (NT:25)
$168.38¢84 188
1
#5
24252-24F20
BUSH, 5TH DRIVE GEAR
$74.65¢37 325
1
#6
24261-47H20
GEAR, 6TH DRIVE (NT:26)
$168.38¢84 188
1
#7
24262-24F20
BUSH, 6TH DRIVE GEAR
$49.69¢24 844
1
#8
09160-27008
WASHER (27X36X1)
$4.84¢2 419
1
#9
09167-27001
LOCK WASHER
$3.09¢1 544
1
#10
09285-20006
OIL SEAL (20X31.2X2.7)
$7.66¢3 831
1
#11
09380-27004
CIRCLIP
$4.34¢2 169
1
#12
09380-27006
CIRCLIP
$3.55¢1 775
1
#13
09380-27006
CIRCLIP
$3.55¢1 775
1
#14
09262-25001
BEARING
$69.63¢34 813
1
#15
09263-20114
BEARING
$87.85¢43 925
1
#16
04221-07129
PIN
$2.45¢1 225
1
#17
24131-17K00
SHAFT, DRIVE
$320.71¢160 356
1
#18
24311-47H00
GEAR, 1ST DRIVEN (NT:41)
$230.85¢115 425
1
#19
24315-17K00
SPACER, 1ST DRIVEN GEAR
$38.63¢19 313
1
#20
24321-17K00
GEAR, 2ND DRIVEN (NT:39)
$170.52¢85 262
1
#21
24322-17K00
BUSH, 2ND DRIVEN GEAR
$42.88¢21 438
1
#22
24323-17K00
WASHER, 2ND DRIVEN GEAR
$6.90¢3 450
1
#23
24331-47H20
GEAR, 3RD DRIVEN (NT:36)
$170.52¢85 262
1
#24
24332-24F20
BUSH, 4TH DRIVEN GEAR
$49.69¢24 844
1
#25
24332-24F20
BUSH, 4TH DRIVEN GEAR
$49.69¢24 844
1
#26
24333-47H00
WASHER, 3RD 4TH DRIVE
$10.48¢5 238
1
#27
24341-47H10
GEAR, 4TH DRIVEN (NT:36)
$251.53¢125 763
1
#28
24351-47H00
GEAR, 5TH DRIVEN (NT:34)
$230.85¢115 425
1
#29
24361-17K00
GEAR, 6TH DRIVEN (NT:33)
$174.48¢87 238
1
#30
09181-24005
SHIM (24X34X1)
$4.19¢2 094
1
#31
09263-24030
BEARING (24X28X13)
$33.29¢16 644
1
#32
09263-35045
BEARING (35X40X12)
$30.71¢15 356
1
#33
09380-30009
CIRCLIP
$4.11¢2 056
1
#34
09380-30009
CIRCLIP
$4.11¢2 056
1
#35
09380-30009
CIRCLIP
$4.11¢2 056
1
#36
09262-30001
BEARING
$73.96¢36 981
1
#37
09263-22074
BEARING
$87.85¢43 925
1
#38
09283-40043
OIL SEAL
$27.45¢13 725
1
#39
24741-06G00
RETAINER, DRIVE SHAFT
$10.88¢5 438
1
#40
24741-17K00
RETAINER, COUNTER SHAFT BRG
$26.85¢13 425
1
#41
24741-20A00
RETAINER, BEARING
$3.65¢1 825
1
#42
24751-17K00
RETAINER, CL PUSH ROD OIL SEA
$17.04¢8 519
1
#43
09126-06011
SCREW (6X12)
$2.63¢1 313
1
#44
09126-06011
SCREW (6X12)
$2.63¢1 313
1
#45
09139-06153
SCREW (6X13)
$3.40¢1 700
1
#46
09139-06159
SCREW (6X20)
$5.38¢2 688
1
#47
27510-17K00
SPROCKET, ENGINE (NT:17)
$142.56¢71 281
1
#48
27531-17K00
SPACER, ENGINE SPROCKET
$34.41¢17 206
1
#49
27600-17K00-120
CHAIN ASSY, DRIVE (DID525HV3)
$406.63¢203 313
1
#50
27620-17K00
.JOINT SET, DRIVE CHAIN
$23.41¢11 706
1
#51
09159-22008
NUT
$35.48¢17 738
1
#52
09181-27016
SHIM (27X42X1.5)
$6.81¢3 406
1
#53
09280-26005
O RING (D:2.4,ID:26.2)
$3.01¢1 506
1
