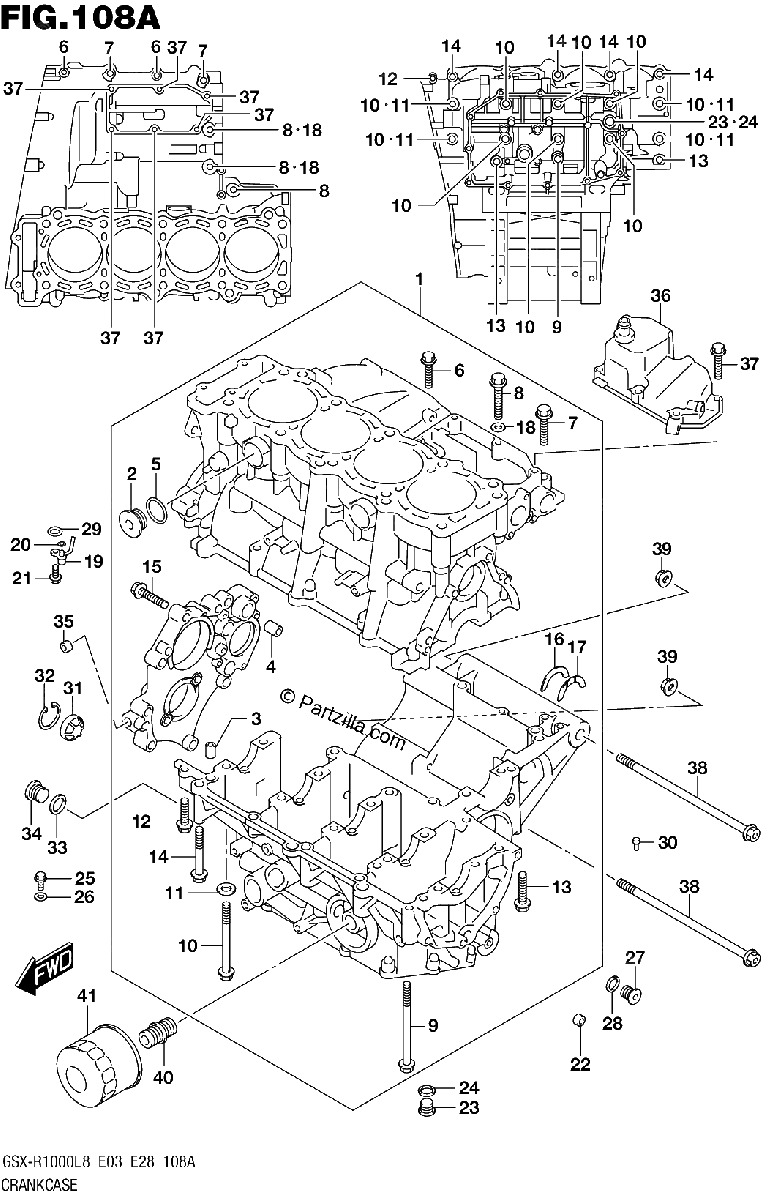

108A CRANKCASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CRANKCASE SET
$3629.61¢1 814 806
#2
.PLUG, WATER JACKET
$22.65¢11 325
#3
.PIN, CRANKCASE
$6.52¢3 262
#4
.PIN, CRANKCASE
$6.52¢3 262
#5
.O RING (D:3.1,ID:19.4)
$2.49¢1 244
#6
BOLT
$3.01¢1 506
#7
.BOLT
$3.65¢1 825
#8
.BOLT
$4.81¢2 406
#9
.BOLT (8X110)
$4.46¢2 231
#10
.BOLT (9X95)
$10.30¢5 150
#11
.GASKET (10.2X20X2.3)
$2.63¢1 313
#12
BOLT
$3.01¢1 506
#13
.BOLT
$3.65¢1 825
#14
.BOLT
$4.19¢2 094
#15
BOLT
$4.24¢2 119
#16
.BEARING, THRUST LH (GREEN)
$11.46¢5 731
#18
.GASKET (8.2X14X1)
$2.14¢1 069
#19
JET, PISTON COOLING
$67.81¢33 906
#20
O RING (D:1.2,ID:4)
$2.21¢1 106
#21
BOLT (6X12)
$3.25¢1 625
#22
PLUG
$5.59¢2 794
#23
PLUG (L:12)
$10.44¢5 219
#24
GASKET (12.1X16.2X3.7)
$2.06¢1 031
#25
BOLT
$2.63¢1 313
#26
GASKET (6.2X13X1.2)
$2.21¢1 106
#27
PLUG (10X10)
$4.97¢2 488
#28
GASKET (10X14X3.6)
$2.48¢1 238
#29
O RING (D:1.9,ID:7.8)
$4.33¢2 163
#30
JET (140)
$22.15¢11 075
#31
.LENS, OIL LEVEL CHECK
$21.70¢10 850
#32
CIRCLIP
$3.56¢1 781
#33
GASKET (16X22X2)
$2.46¢1 231
#34
PLUG
$5.74¢2 869
#35
PLUG
$5.59¢2 794
#36
COVER, BREATHER
$201.98¢100 988
#37
BOLT
$3.01¢1 506
#38
BOLT (12X275)
$25.21¢12 606
#39
NUT
$9.47¢4 738
#40
.UNION, OIL FILTER STAND
$8.40¢4 200
#41
FILTER ASSY, ENGINE OIL
$15.61¢7 806
#17-1
.BEARING, THRUST LH (BROWN)
$15.60¢7 800
#17-2
BEARING, THRUST LH (RED)
$15.34¢7 669
#17-3
.BEARING, THRUST LH (YELLOW)
$15.90¢7 950
#17-4
.BEARING, THRUST LH (GREEN)
$11.46¢5 731
#17-5
BEARING, THRUST LH (BLUE)
$15.90¢7 950
#17-6
BEARING, THRUST LH (ORANGE)
$15.90¢7 950
#17-7
BEARING, THRUST LH (BLACK)
$11.84¢5 919
