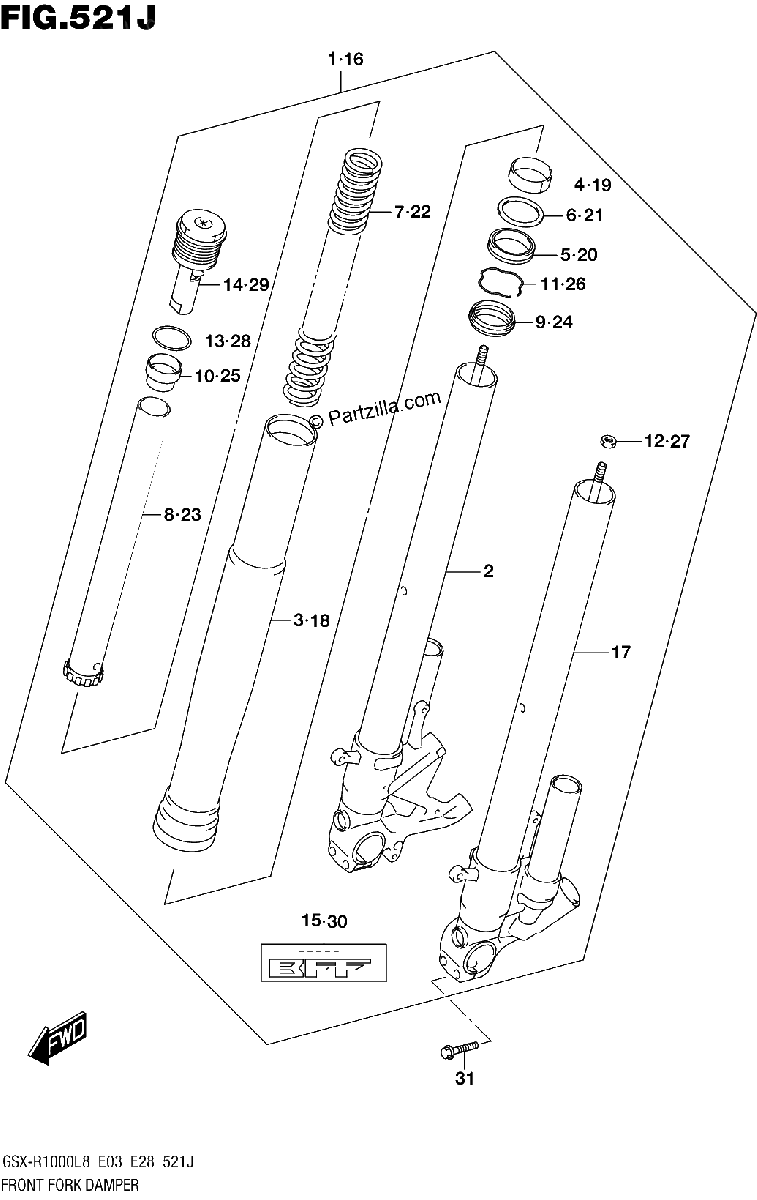

521J FRONT FORK DAMPER GSX R1000RAL8 E03
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY, FRONT FORK RH
$4147.65¢2 073 825
#2
TUBE, INNER RH
$4652.35¢2 326 175
#3
TUBE, OUTER
$828.60¢414 300
#4
.BUSH, GUIDE
$16.94¢8 469
#5
.OIL SEAL
$27.51¢13 756
#6
.SPACER, SEAL
$10.35¢5 175
#7
SPRING
$174.48¢87 238
#8
COLLAR, SPRING
$166.10¢83 050
#9
.SEAL, DUST
$31.70¢15 850
#10
COLLAR, SPRING
$85.44¢42 719
#11
.RING
$8.61¢4 306
#12
..NUT
No Disponible
#13
..O RING
$8.49¢4 244
#14
BOLT
$385.21¢192 606
#15
LABEL
$10.15¢5 075
#16
DAMPER ASSY, FRONT FORK LH
$3728.56¢1 864 281
#17
TUBE, INNER LH
$4652.35¢2 326 175
#18
TUBE, OUTER
$828.60¢414 300
#19
.BUSH, GUIDE
$16.94¢8 469
#20
.OIL SEAL
$27.51¢13 756
#21
.SPACER, SEAL
$10.35¢5 175
#22
SPRING
$174.48¢87 238
#23
COLLAR, SPRING
$166.10¢83 050
#24
.SEAL, DUST
$31.70¢15 850
#25
COLLAR, SPRING
$85.44¢42 719
#26
.RING
$8.61¢4 306
#27
..NUT
No Disponible
#28
..O RING
$8.49¢4 244
#29
BOLT
$385.21¢192 606
#30
LABEL
$10.15¢5 075
#31
BOLT
$7.09¢3 544
