SIDE LOWER COVER GSX R1000AL8 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

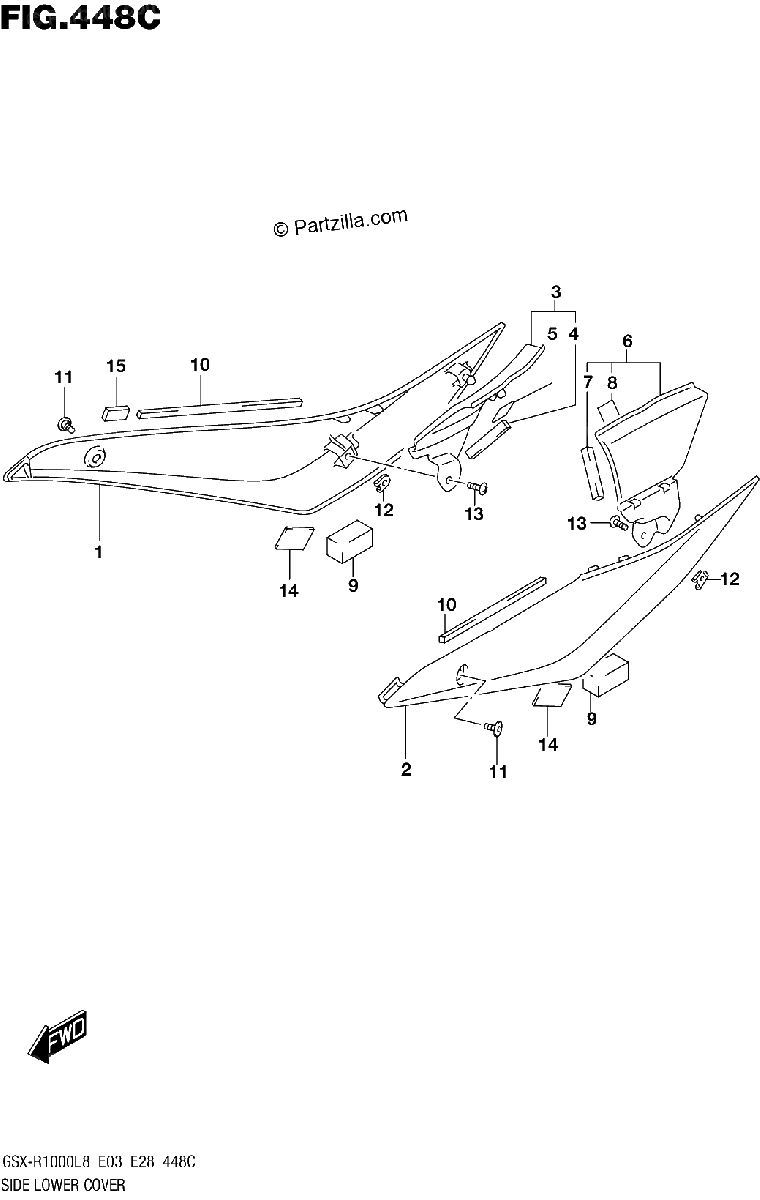

Diagrama de SIDE LOWER COVER GSX R1000AL8 E03

Repuestos

#1
47511-17K00
COVER, FRAME FRONT RH
$48.51¢24 254
1
#2
47611-17K00
COVER, FRAME FRONT LH
$50.37¢25 185
1
#4
47122-17K00
CUSHION
$2.39¢1 196
1
#5
47123-17K00
CUSHION, FRAME COVER NO.3
$4.70¢2 352
1
#7
47122-17K00
CUSHION
$2.39¢1 196
1
#8
47123-17K00
CUSHION, FRAME COVER NO.3
$4.70¢2 352
1
#9
33652-38F20
CUSHION
$3.24¢1 621
1
#10
47121-17K00
CUSHION, FRAME COVER UPPER
$3.36¢1 679
1
#11
09139-05092
SCREW
$2.67¢1 334
1
#12
09148-05045
NUT
$2.92¢1 461
1
#13
03541-0516A
SCREW
$1.64¢822
1
#14
44572-13G00
FASTENER
$12.13¢6 066
1
#15
33652-47F00
CUSHION, LICENSE PLATE
$4.05¢2 024
1
#3-1
47710-17K00-YKV
COVER, FRAME FRONT NO.2 RH (BLACK)
$101.89¢50 945
1
#3-2
47710-17K00-YWW
COVER, FRAME FRONT NO.2 RH (WHITE)
$101.89¢50 945
1
#3-3
47710-17K00-YSF
COVER, FRAME FRONT NO.2 RH (BLUE)
$99.38¢49 692
1
#6-1
47810-17K00-YKV
COVER, FRAME FRONT NO.2 LH (BLACK)
$101.89¢50 945
1
#6-2
47810-17K00-YWW
COVER, FRAME FRONT NO.2 LH (WHITE)
$101.89¢50 945
1
#6-3
47810-17K00-YSF
COVER, FRAME FRONT NO.2 LH (BLUE)
$54.67¢27 335
1
