339A REAR COMBINATION LAMP VL1500BL8 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

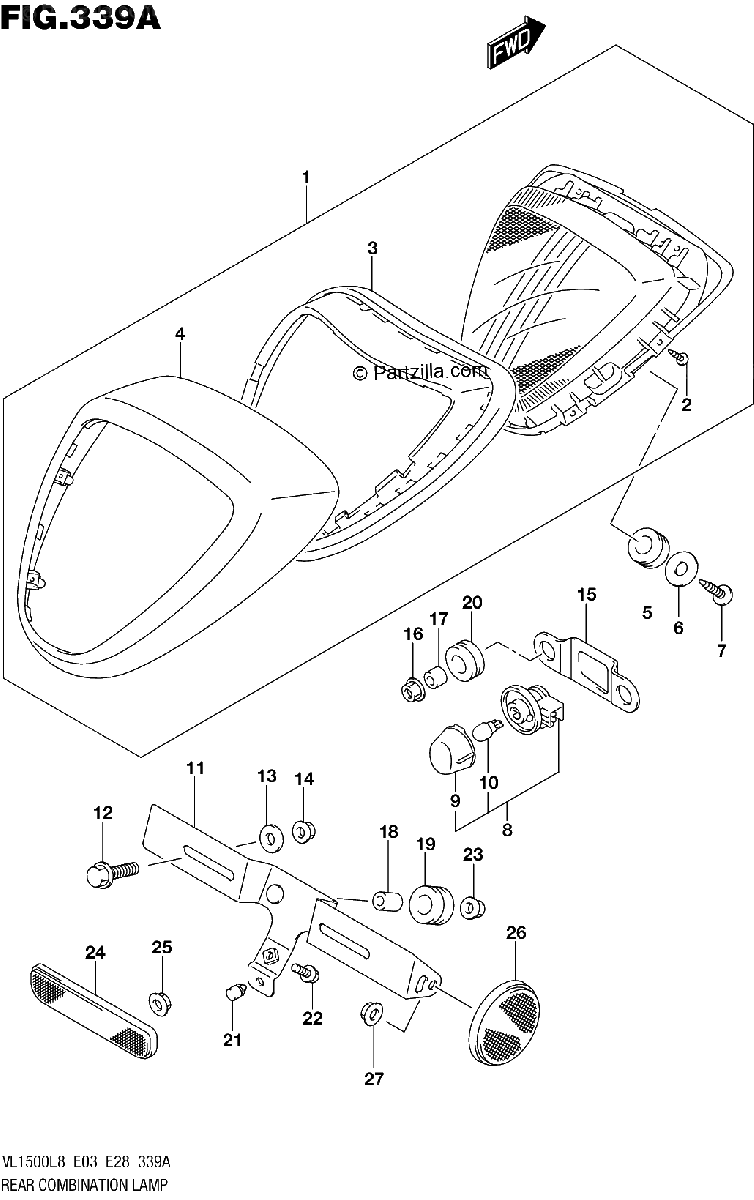

Diagrama de 339A REAR COMBINATION LAMP VL1500BL8 E03

Repuestos

#1
35710-06JB0
LAMP ASSY, REAR COMBINATION
$1178.76¢589 381
1
#2
35623-41400
.SCREW (3X12)
No Disponible
1
#3
35713-06J00
.RUBBER
No Disponible
1
#4
35717-06JB0
.COVER
$442.39¢221 194
1
#5
09320-10067
CUSHION
$4.77¢2 387
1
#6
09160-05501
WASHER (5.5X20X1.2)
$2.42¢1 213
1
#7
03541-0512A
SCREW
$1.79¢894
1
#8
35910-14F01
LAMP ASSY, LICENSE
$40.79¢20 394
1
#9
35912-14F11
.LENS
$11.19¢5 594
1
#10
09471-12216
.BULB (12V5W)
$6.30¢3 150
1
#11
35927-06J30
BRACKET, LICENSE PLATE
$50.91¢25 456
1
#12
09116-06168
BOLT (6X16)
$3.25¢1 625
1
#13
09160-06077
WASHER (6.5X20X1.2)
$2.46¢1 231
1
#14
08316-1006A
NUT
$2.85¢1 425
1
#15
35928-43H00
BRACKET, LICENSE LAMP
$15.48¢7 738
1
#16
09159-05049
NUT
$3.02¢1 513
1
#17
09180-05066
SPACER (5.5X9.5X10.5)
No Disponible
1
#18
09180-06290
SPACER (6.5X10X12)
$2.63¢1 313
1
#19
09320-10051
CUSHION
$3.66¢1 831
1
#20
09320-10054
CUSHION
$2.66¢1 331
1
#21
09321-06013
CUSHION
$1.98¢988
1
#22
01550-0625A
SCREW
$2.56¢1 281
1
#23
08316-1006A
NUT
$2.85¢1 425
1
#24
35970-05H00
REFLECTOR ASSY, RR
$39.60¢19 800
1
#25
08316-1005A
NUT
$2.85¢1 425
1
#26
35970-14A20
REFLECTOR ASSY, REAR SIDE
$18.54¢9 269
1
#27
08316-1005A
NUT
$2.85¢1 425
1
