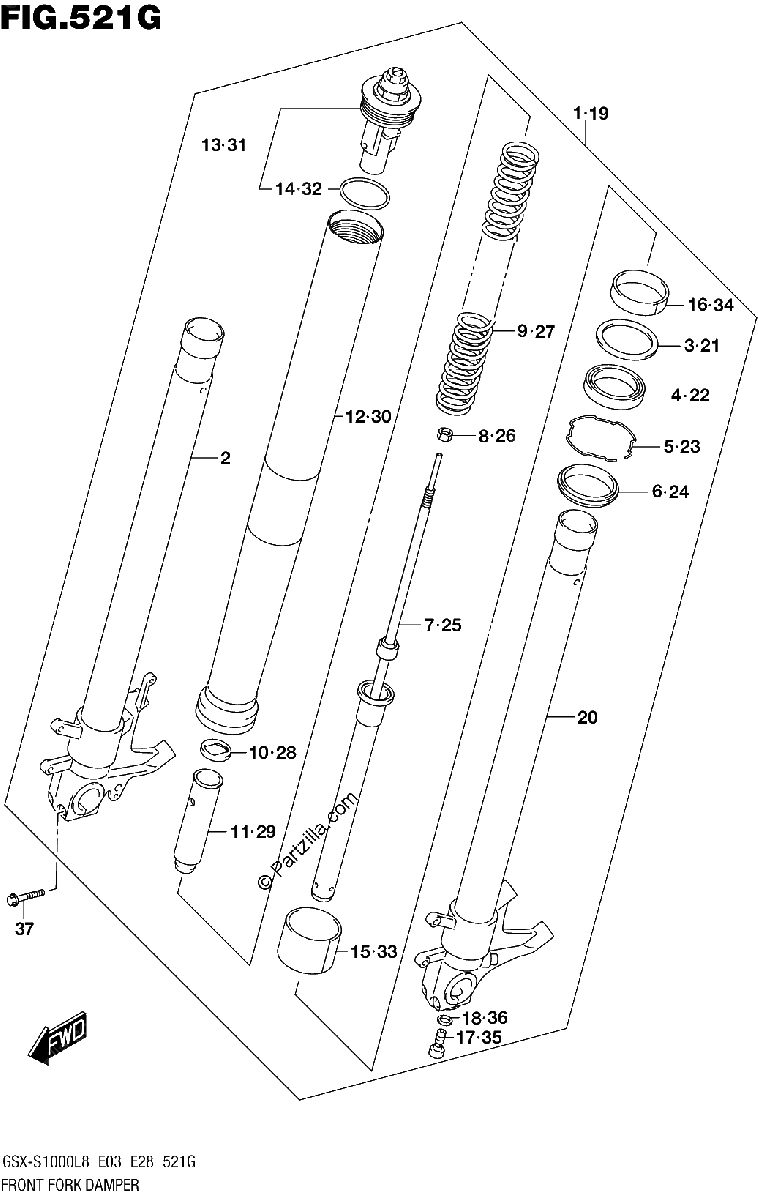

FRONT FORK DAMPER GSX S1000AL8 E33
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY, FRONT FORK RH
$1870.33¢935 163
#2
.TUBE, INNER RH
$786.94¢393 472
#3
.WASHER
$5.69¢2 846
#4
.OIL SEAL
$35.18¢17 589
#5
.RING, OIL SEAL STOPPER
$5.54¢2 772
#6
.SEAL, DUST
$29.16¢14 582
#7
CYLINDER
$440.19¢220 093
#8
.NUT, ROD
$3.77¢1 886
#9
SPRING
$78.68¢39 342
#10
.GUIDE, SPRING
$12.94¢6 469
#11
.SPACER, SPRING
$32.77¢16 388
#12
TUBE, OUTER
$616.51¢308 258
#13
CAP
No Disponible
#14
..O RING
$4.42¢2 208
#15
.PISTON
$13.48¢6 739
#16
.SLIDEMETAL
$12.90¢6 452
#17
.BOLT
$10.84¢5 422
#18
.GASKET
$2.46¢1 231
#19
DAMPER ASSY, FRONT FORK LH
No Disponible
#20
.TUBE, INNER LH
$573.36¢286 678
#21
.WASHER
$5.69¢2 846
#22
.OIL SEAL
$35.18¢17 589
#23
.RING, OIL SEAL STOPPER
$5.54¢2 772
#24
.SEAL, DUST
$29.16¢14 582
#25
CYLINDER
$440.19¢220 093
#26
.NUT, ROD
$3.77¢1 886
#27
SPRING
$78.68¢39 342
#28
.GUIDE, SPRING
$12.94¢6 469
#29
.SPACER, SPRING
$32.77¢16 388
#30
TUBE, OUTER
$616.51¢308 258
#31
CAP
No Disponible
#32
..O RING
$4.42¢2 208
#33
.PISTON
$13.48¢6 739
#34
.SLIDEMETAL
$12.90¢6 452
#35
.BOLT
$10.84¢5 422
#36
.GASKET
$2.46¢1 231
#37
BOLT
$6.12¢3 059
