CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

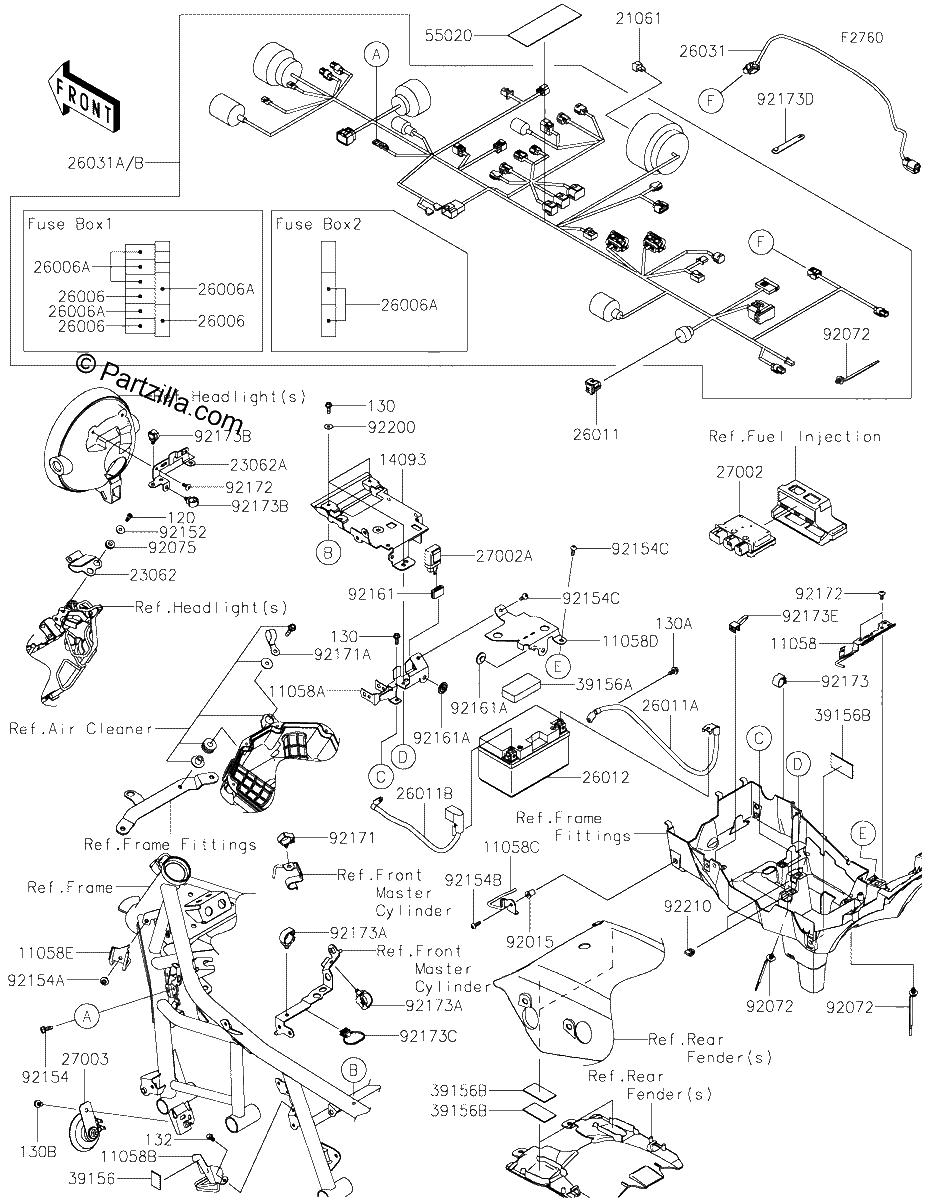

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#120
120CA0514
BOLT SOCKET,5X14
$5.53¢2 763
1
#130
130BA0516
BOLT FLANGED,5X16
$0.95¢475
1
#130B
130BB0610
BOLT-FLANGED,6X10 | [CA]
$2.30¢1 150
1
#130A
130BA0612
BOLT-FLANGED,6X12 | [CA]
$1.64¢819
1
#132
132BB0610
BOLT-FLANGED-SMALL,6X10
$2.30¢1 150
1
#11058
11058-0361
BRACKET,FUSE BOX
$13.55¢6 775
1
#11058A
11058-0364
BRACKET,RELAY
$23.49¢11 744
1
#11058B
11058-0381
BRACKET,ACG CONNECTOR
$13.44¢6 719
1
#11058C
11058-0494
BRACKET
$9.16¢4 581
1
#11058D
11058-1026
BRACKET,BATTERY
$18.34¢9 169
1
#11058E
11058-1356
BRACKET
$9.45¢4 725
1
#14093
14093-1558
COVER
$43.96¢21 981
1
#21061
21061-1003
RECTIFIER
$35.54¢17 769
1
#23062
23062-1408
BRACKET-COMP
$16.90¢8 450
1
#23062A
23062-1409
BRACKET-COMP
$12.91¢6 456
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
1
#26006A
26006-1078
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
1
#26011
26011-1901
WIRE-LEAD,DIAG CONNECTOR
$44.84¢22 419
1
#26011A
26011-2416
WIRE-LEAD,BATTERY(-)
$49.25¢24 625
1
#26011B
26011-2457
WIRE-LEAD,BATTERY(+)
$54.26¢27 131
1
#26012
26012-0689
BATTERY,YTZ10,12V 8.6AH
No Disponible
1
#26031
26031-3971
HARNESS,SUB
$26.29¢13 144
1
#26031A
26031-4201
HARNESS,MAIN
$1090.85¢545 425
1
#26031A
26031-4202
HARNESS,MAIN
$1090.85¢545 425
1
#27002
27002-0061
RELAY Assembly
$214.27¢107 137
1
#27002A
27002-0062
RELAY Assembly,SIGNAL LAMP
$90.79¢45 394
1
#27003
27003-0065
HORN
$82.71¢41 356
1
#39156A
39156-2837
PAD,70X35X15
$14.11¢7 056
1
#39156B
39156-2840
PAD,55X30X2
$1.17¢587
1
#39156
39156-2462
PAD,31X23X2
$1.56¢781
1
#55020
55020-2478
GUARD,MAIN HARNESS
$11.53¢5 763
1
#92015
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92072
92072-1414
BAND
$3.70¢1 850
1
#92075
92075-161
DAMPER
$4.65¢2 325
1
#92152
92152-1880
COLLAR,5.2X7.5X8.2
$5.07¢2 537
1
#92154A
92154-1693
BOLT,SOCKET,6X10
$1.72¢862
1
#92154B
92154-1701
BOLT,SOCKET,5X16
$1.24¢619
1
#92154C
92154-4294
BOLT,SOCKET,5X16
$2.54¢1 269
1
#92154
92154-0551
BOLT,FLANGED,6X16
$1.69¢844
1
#92161A
92161-1685
DAMPER,8X22X10
$0.96¢481
1
#92161
92161-1443
DAMPER,15X25X8.5
$1.95¢975
1
#92171A
92171-1279
CLAMP
$10.46¢5 231
1
#92171
92171-0316
CLAMP,BRAKE HOSE
$3.81¢1 906
1
#92172
92172-0821
SCREW,5X12
$0.95¢475
1
#92173A
92173-0861
CLAMP
$2.75¢1 375
1
#92173B
92173-1951
CLAMP
$1.49¢744
1
#92173C
92173-2077
CLAMP
$6.86¢3 431
1
#92173D
92173-2194
CLAMP
$1.82¢913
1
#92173E
92173-2719
CLAMP
$11.04¢5 519
1
#92173
92173-0127
CLAMP,CLIP
$17.30¢8 650
1
#92200
92200-0456
WASHER,5.2X15X1.0
$1.42¢712
1
#92210
92210-0935
NUT,PLATE,5MM
$1.88¢938
1
