445A FRAME COVER YSF

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

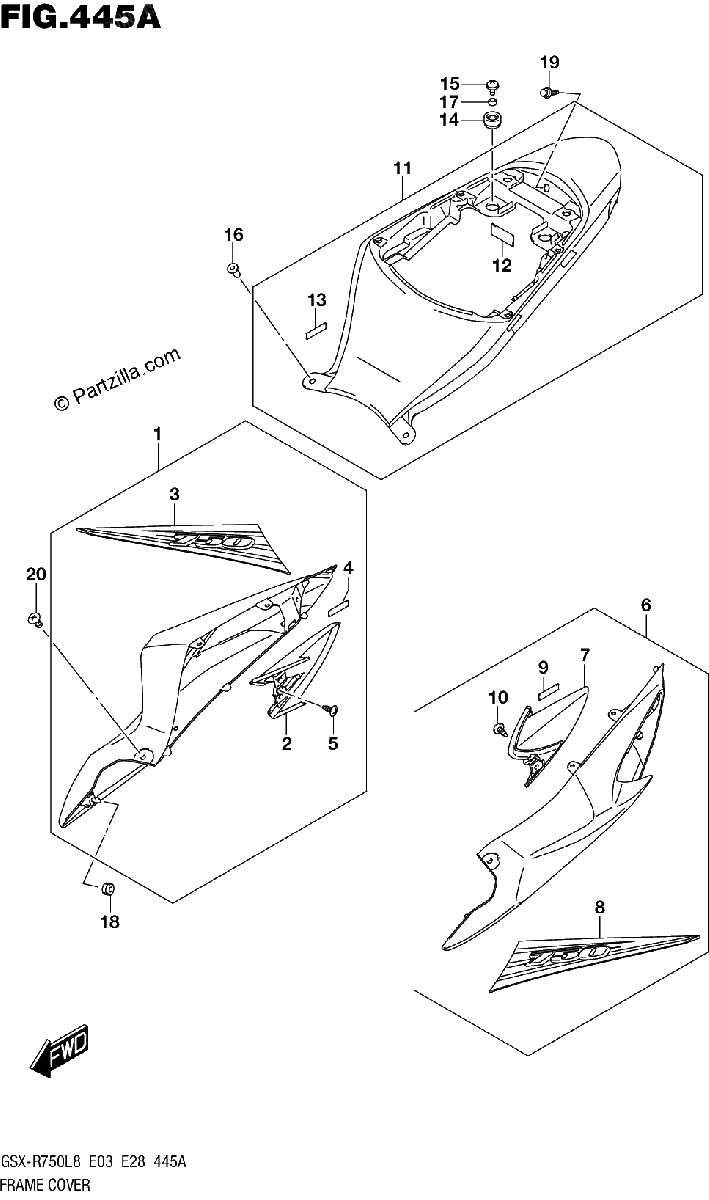

Diagrama de 445A FRAME COVER YSF

Repuestos

#1
47100-15J40-YSF
COVER, FRAME RH (BLUE)
$157.47¢78 738
1
#2
47611-14J00
.COVER, FRAME
$22.30¢11 150
1
#3
68135-15J30-BE3
.TAPE, FRAME COVER RH (BLUE/WHITE)
$32.63¢16 313
1
#4
94443-06G00
TAPE, REAR FENDER
$3.88¢1 938
1
#5
03541-0512A
SCREW
$1.79¢894
1
#6
47200-15J40-YSF
COVER, FRAME LH (BLUE)
$157.47¢78 738
1
#7
47621-14J00
.COVER, FRAME
$22.40¢11 200
1
#8
68145-15J30-BE3
.TAPE, FRAME COVER LH (BLUE/WHITE)
$32.63¢16 313
1
#9
94443-06G00
TAPE, REAR FENDER
$3.88¢1 938
1
#10
03541-0512A
SCREW
$1.79¢894
1
#11
47300-14J00
COVER, FRAME CENTER
$114.92¢57 463
1
#12
48128-14FA0
CUSHION, BOX UPPER
$8.73¢4 363
1
#13
94443-06G00
TAPE, REAR FENDER
$3.88¢1 938
1
#14
47312-37H00
CUSHION
$3.65¢1 825
1
#15
09136-06056
SCREW (6X16)
$2.74¢1 369
1
#16
09159-05019
NUT
$8.39¢4 194
1
#17
09180-06283
SPACER (6.5X10X7)
$2.46¢1 231
1
#18
09320-06504
CUSHION
$5.83¢2 913
1
#19
09409-06314-5PK
CLIP (BLACK)
$3.60¢1 800
1
#20
02142-1520B
SCREW
$3.05¢1 525
1
