130A CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

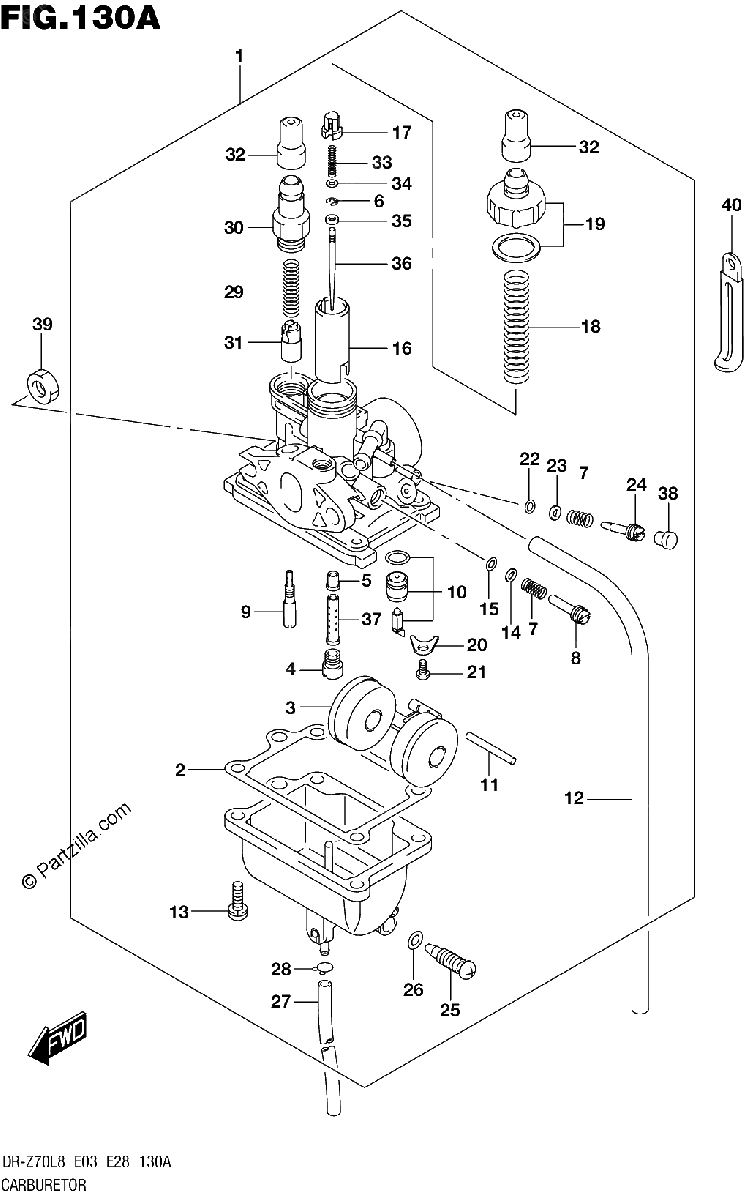

Diagrama de 130A CARBURETOR

Repuestos

#1
13200-14H01
CARBURETOR ASSY
$206.53¢103 264
1
#2
13251-02410
.GASKET
$5.89¢2 944
1
#3
13250-02500
.FLOAT
$29.52¢14 760
1
#4
09491-57005
.JET, MAIN (57.5)
$22.23¢11 115
1
#5
13341-14H00
.JET, NEEDLE (E-5M)
$54.99¢27 496
1
#6
13533-98410
.E RING
$6.11¢3 053
1
#7
13268-35010
.SPRING
$4.91¢2 455
1
#8
13483-16A01
.SCREW
$20.18¢10 091
1
#9
09492-17012
.JET, PILOT (17.5)
$29.47¢14 737
1
#10
13370-36G00
.VALVE ASSY, NEEDLE
$71.84¢35 920
1
#11
13254-20010
.PIN, FLOAT
$5.32¢2 662
1
#12
09352-50903-600
HOSE (5X9X600) | L:600-100
$8.10¢4 048
1
#13
13601-04148
.SCREW
$3.36¢1 679
1
#14
13291-35010
.WASHER
$5.20¢2 599
1
#15
13295-33010
.O RING
$4.91¢2 455
1
#16
13551-36G00
.VALVE, PISTON
$60.09¢30 044
1
#17
13418-12F40
.HOLDER
$8.95¢4 474
1
#18
13268-36G00
.SPRING
$6.35¢3 174
1
#19
13261-36G00
.CAP
$46.61¢23 305
1
#20
13373-46710
.PLATE
$7.44¢3 720
1
#21
02112-0306B
.SCREW
$1.92¢960
1
#22
13295-29900
.O RING
$4.76¢2 380
1
#23
13291-29900
.WASHER
$2.15¢1 075
1
#24
13269-43G00
.ADJUSTER (2,0)
$16.21¢8 108
1
#25
13247-09G10
.PLUG, DRAIN
$7.45¢3 726
1
#26
13278-02330
.O RING
$3.36¢1 679
1
#27
09355-30705-600
.HOSE (3X7X600) | L:600-400
$12.16¢6 078
1
#28
13529-98010
.CLIP
$3.83¢1 915
1
#29
13417-37200
.SPRING
$4.01¢2 007
1
#30
13418-14H00
.CAP, STARTER
No Disponible
1
#31
13411-22G00
.PLUNGER, STARTER
$23.78¢11 891
1
#32
13416-26F00
.CAP
$4.27¢2 133
1
#33
13481-23F00
.SPRING
$7.04¢3 519
1
#34
13382-23F00
.WASHER
$5.52¢2 760
1
#35
13387-23F00
.RING
$7.51¢3 755
1
#36
13383-14H00
.NEEDLE, JET
$23.78¢11 891
1
#37
13385-14H10
.PIPE
$23.66¢11 828
1
#38
13281-05A00
.PLUG
$5.05¢2 524
1
#39
09140-06027
NUT
$3.30¢1 650
1
#40
09404-06433
CLAMP (L:80)
$2.10¢1 052
1
