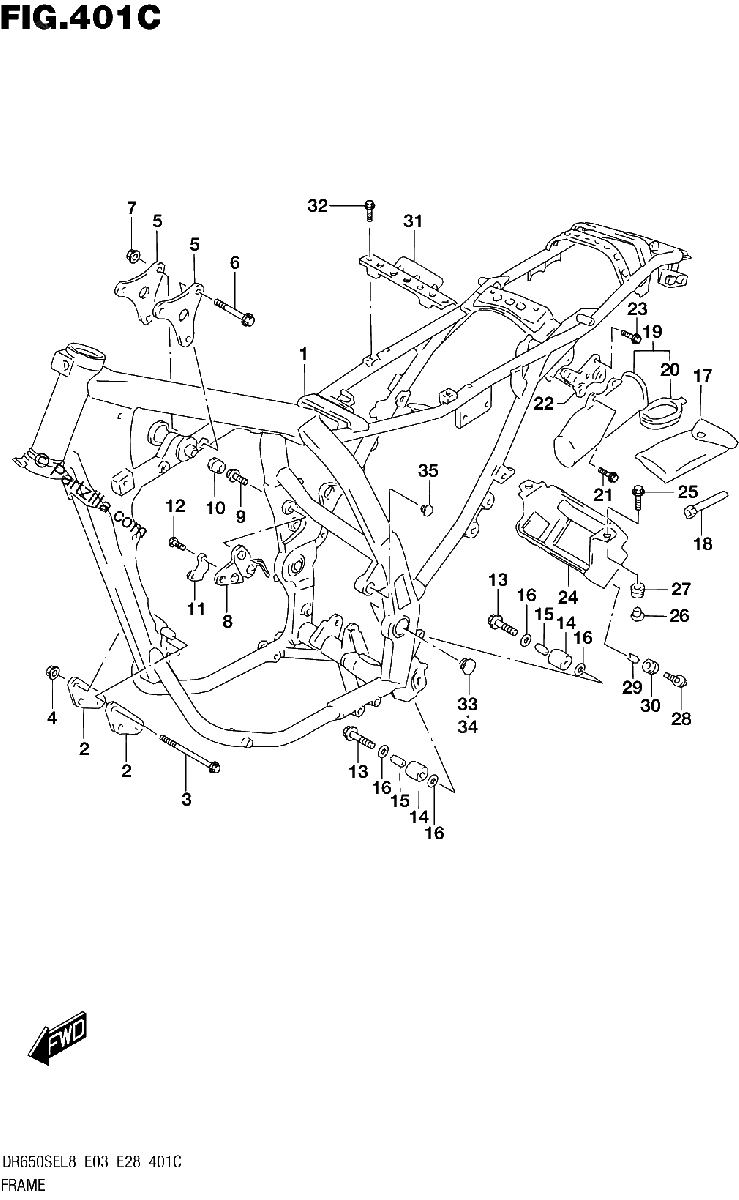

Diagrama de 401C FRAME DR650SEL8 E33

Repuestos

#1
41100-32E70-YPT
FRAME (GRAY)
$3351.59¢1 675 794
1
#2
41911-32E00
PLATE, ENGINE MOUNTING FRONT
$24.54¢12 269
1
#3
09103-08139
BOLT (8X100)
$10.28¢5 138
1
#4
08319-3108A
NUT
$3.01¢1 506
1
#5
41991-32E00
PLATE, ENGINE MOUNTING UPPER
$48.94¢24 469
1
#6
09103-08339
BOLT (8X55)
$4.16¢2 081
1
#7
08319-3108A
NUT
$3.01¢1 506
1
#8
41930-32E00-019
PLATE, REAR RH (BLACK)
No Disponible
1
#9
01550-0820A
BOLT
$2.94¢1 469
1
#10
09250-20012
PLUG (OD:22)
$11.81¢5 906
1
#11
43251-32E00
BRACKET, STOP SWITCH
No Disponible
1
#12
02162-0616B
BOLT, ADJUST
$2.69¢1 344
1
#13
09103-08178
BOLT (8X38)
$5.59¢2 794
1
#14
43911-13E00
ROLLER, CHAIN CONTROL UPPER
$26.78¢13 388
1
#15
09180-08119
SPACER (8.6X12X25.5)
$8.00¢4 000
1
#16
08211-08201
WASHER
$2.69¢1 344
1
#17
09800-21034
TOOL ASSY
$54.56¢27 281
1
#18
09816-00100
SPANNER, BOX 16
No Disponible
1
#19
41550-32E00
HOLDER, TOOL
$98.31¢49 156
1
#20
41552-37210
CAP, TOOL HOLDER
$11.99¢5 994
1
#21
09116-06006
BOLT (6X16)
$2.45¢1 225
1
#22
47440-32E00
BRACKET, TOOL HOLDER
$23.00¢11 500
1
#23
01550-0616B
BOLT
$3.19¢1 594
1
#24
41540-32E00
HOLDER, BATTERY
No Disponible
1
#25
09116-06167
BOLT (6X20)
$2.85¢1 425
1
#26
09169-06065
WASHER
$5.66¢2 831
1
#27
09320-08021
CUSHION | RH
$2.21¢1 106
1
#28
09116-06213
BOLT (6X16)
$4.13¢2 063
1
#29
09180-06038
SPACER (6.1X9X7.5)
$2.34¢1 169
1
#30
09320-08021
CUSHION | RH
$2.21¢1 106
1
#31
41561-32E00
PLATE, FITTING
$30.53¢15 263
1
#32
01550-0610B
BOLT
$3.16¢1 581
1
#33
43585-32E00
PLUG, FRAME PIVOT RH
$5.58¢2 788
1
#34
43595-32E00
PLUG, FRAME PIVOT LH
$5.58¢2 788
1
#35
43586-32E00
PLUG, FRAME BOSS
$6.60¢3 300
1
