185A RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

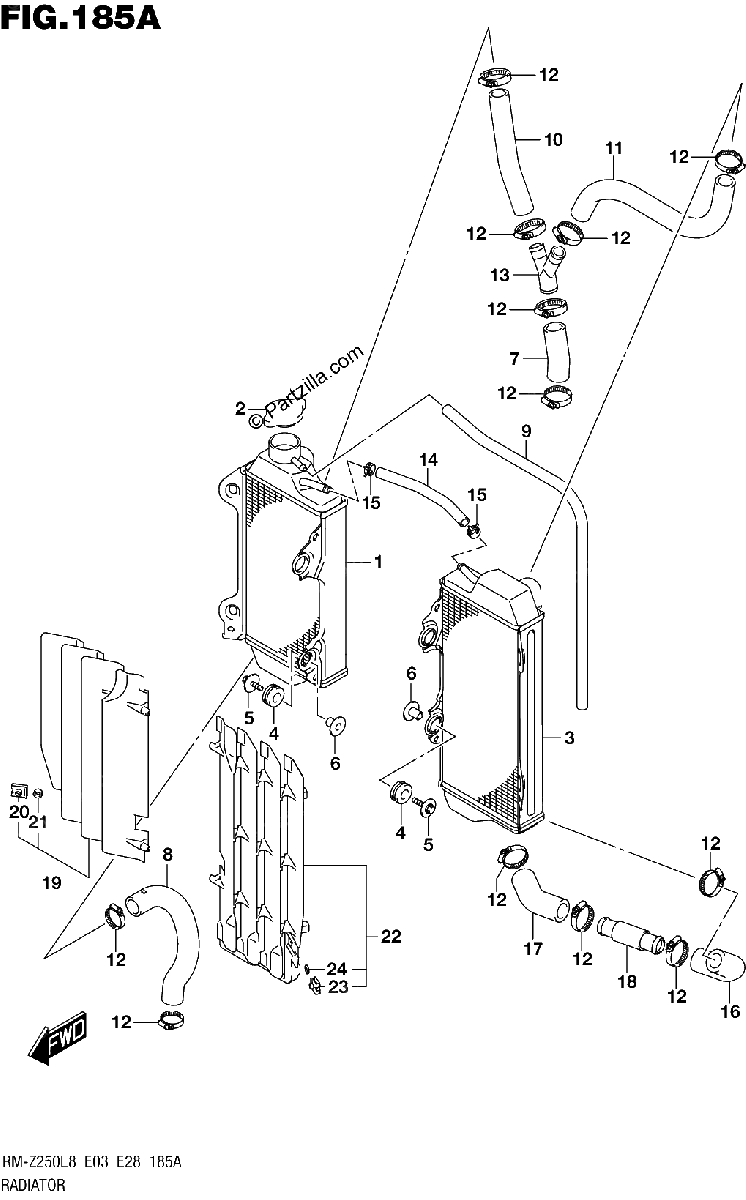

Diagrama de 185A RADIATOR

Repuestos

#1
17710-49H10
RADIATOR, WATER, RH
$616.53¢308 263
1
#2
17730-08J00
CAP
$50.67¢25 338
1
#3
17720-49H10
RADIATOR, WATER, LH
$579.19¢289 594
1
#4
17787-19A00
CUSHION, RADIATOR SUPPORT
$4.25¢2 125
1
#5
09116-06186
BOLT (6X25)
$3.36¢1 681
1
#6
09180-06243
SPACER (6.5X10.5X14.1)
$6.41¢3 206
1
#7
17851-49H10
HOSE, INLET NO.1
$20.25¢10 125
1
#8
17852-49H10
HOSE, OUTLET NO.1
$26.34¢13 169
1
#9
09351-50801-00A
HOSE (5X8X1000)
$10.69¢5 344
1
#10
17853-49H10
HOSE, INLET NO.2
$25.40¢12 700
1
#11
17854-49H20
HOSE, INLET NO.3
$32.60¢16 300
1
#12
09402-28513
CLAMP
$8.21¢4 106
1
#13
17856-28H00
JOINT, RADIATOR HOSE
$26.34¢13 169
1
#14
17855-35G00
HOSE, BYPASS
$16.84¢8 419
1
#15
09401-11415
CLIP
$2.92¢1 463
1
#16
17855-49H10
HOSE, OUTLET NO.2
$18.54¢9 269
1
#17
17858-49H00
HOSE, OUTLET NO.3
$14.65¢7 325
1
#18
17859-49H00
PIPE, OUTLET
No Disponible
1
#19
17801-49H00
LOUVER, RADIATOR RH
$46.71¢23 356
1
#20
09148-06017
.NUT
$3.81¢1 906
1
#21
09180-06129
.SPACER (6.2X10X2.2)
$1.77¢888
1
#22
17802-49H00
LOUVER, RADIATOR LH
$47.60¢23 800
1
#23
09148-06017
.NUT
$3.81¢1 906
1
#24
09180-06129
.SPACER (6.2X10X2.2)
$1.77¢888
1
