140B THROTTLE BODY VZ800L8 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

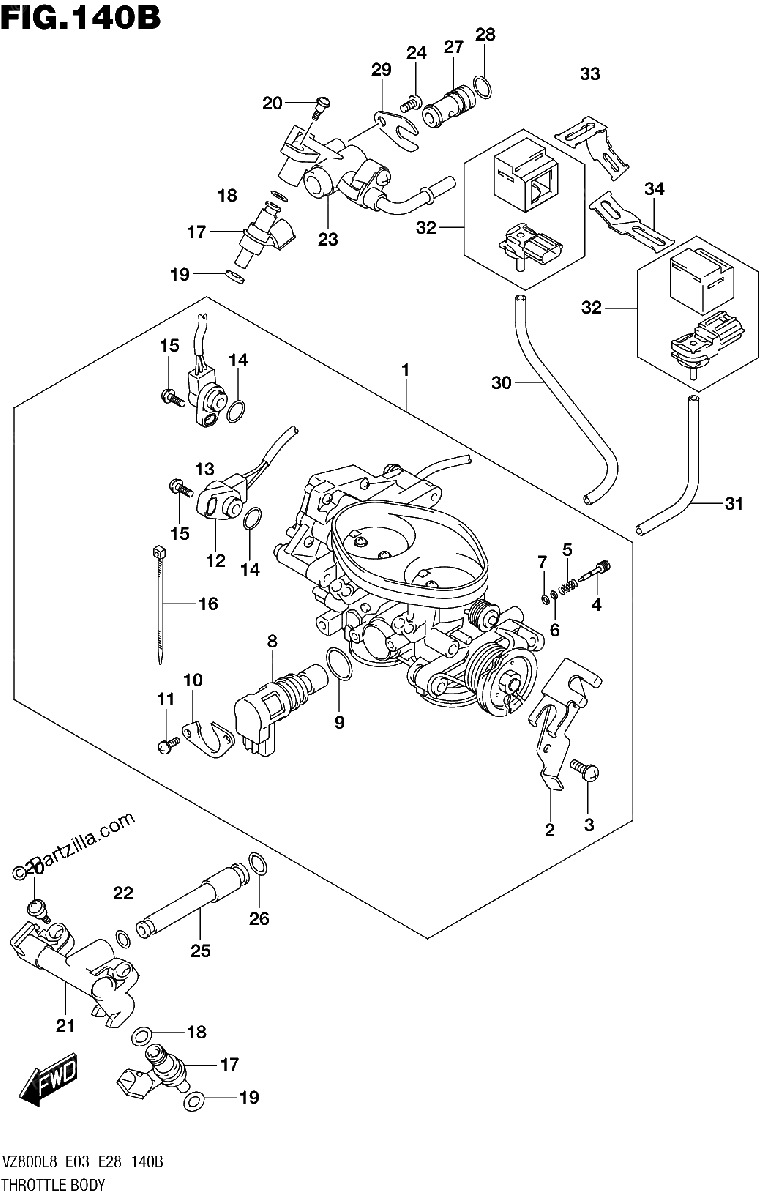

Diagrama de 140B THROTTLE BODY VZ800L8 E28

Repuestos

#1
13401-41F22
BODY, ASSY THROTTLE
$907.22¢453 612
1
#2
13565-41F20
.PLATE, STAY
No Disponible
1
#3
13601-21H00
.SCREW
No Disponible
1
#4
13269-18G00
.SCREW, AIR ADJUST
$15.97¢7 988
1
#5
13271-43E00
.SPRING
No Disponible
1
#6
13291-26E00
.WASHER
$3.65¢1 825
1
#7
13295-26E00
.O RING
$5.17¢2 588
1
#8
18117-15H12
.VALVE ASSY, ISC
$485.25¢242 625
1
#9
18119-05H00
.O RING
$5.34¢2 669
1
#10
13428-15H00
.PLATE, ISC VALVE
No Disponible
1
#11
13605-15H00
.SCREW
$9.60¢4 800
1
#12
13580-40F21
.SENSOR ASSY, THROTTLE NO.1
$327.40¢163 700
1
#13
13580-41F01
.SENSOR ASSY, THROTTLE SUB
$183.59¢91 794
1
#14
13575-40F00
.O RING
$5.01¢2 506
1
#15
13605-40F00
.SCREW
$4.55¢2 275
1
#16
09407-14407
CLAMP (L:145)
$3.65¢1 825
1
#17
15710-26GB0
INJECTOR ASSY
$345.88¢172 938
1
#18
15721-21H00
O RING
$10.82¢5 413
1
#19
15722-21H00
O RING
$13.41¢6 706
1
#20
13602-34F50
SCREW, THROTTLE COVER
$3.81¢1 906
1
#21
13473-41FA0
PIPE SET, FUEL FR
$104.10¢52 050
1
#22
15721-24F00
O RING
$10.82¢5 413
1
#23
13473-41FB0
PIPE SET, FUEL RR
$140.19¢70 094
1
#24
13602-10F10
SCREW
$5.00¢2 500
1
#25
13473-41FC0
JOINT
$18.38¢9 188
1
#26
15721-10G00
O RING
$10.82¢5 413
1
#27
13474-41F20
PLUG, STRAIGHT
$9.29¢4 644
1
#28
15721-41F20
O RING
$30.21¢15 106
1
#29
13475-41F20
PLATE, STAY
$7.52¢3 762
1
#30
13683-41FA0
HOSE
$31.69¢15 844
1
#31
13683-41FD0
TUBE, RUBBER
No Disponible
1
#32
18590-32G00
SENSOR, PRESSURE
$398.79¢199 394
1
#33
18598-41F00
BRACKET, BOOST SENSOR FR
No Disponible
1
#34
18599-39G00
BRACKET, BOOST SENSOR RR
No Disponible
1
