201A CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

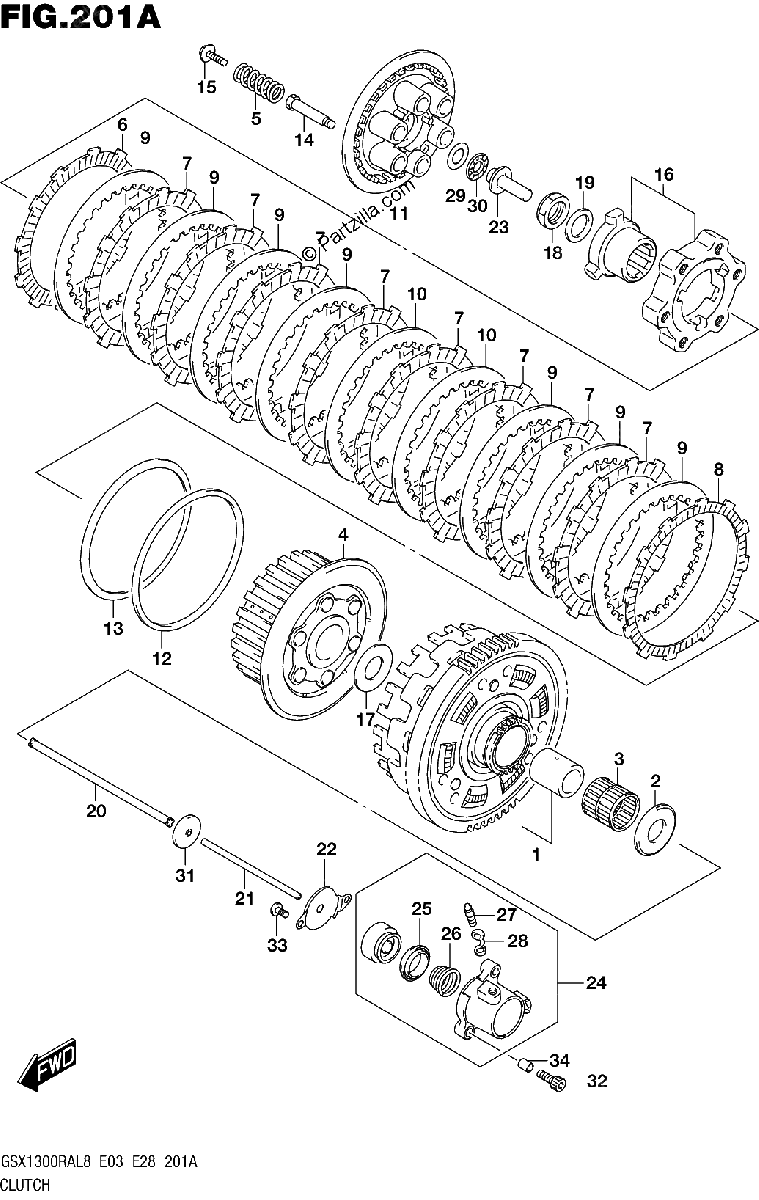

Diagrama de 201A CLUTCH

Repuestos

#1
21200-24810
GEAR ASSY, PRIMARY DRIVEN
$662.25¢331 125
1
#2
09160-25073
WASHER (25X54X2.4)
$17.50¢8 752
1
#3
09263-35013
BEARING (35X40X39.8)
$38.44¢19 222
1
#4
21410-24F00
HUB, CLUTCH SLEEVE
$203.75¢101 873
1
#5
21413-24F30
SPRING, CLUTCH
$7.34¢3 669
1
#6
21441-24F10
PLATE, CLUTCH DRIVE NO.3 (T:3.8)
$26.36¢13 179
1
#7
21441-24F30
PLATE, CLUTCH DRIVE NO.1
$35.10¢17 549
1
#8
21442-24F00
PLATE, CLUTCH DRIVE NO.2 (T:3.8)
$26.50¢13 248
1
#9
21451-24F00
PLATE, CLUTCH DRIVEN (T:2.0)
$12.72¢6 360
1
#10
21451-24F10
PLATE, CLUTCH DRIVEN NO.2 (T:2.3)
$12.72¢6 360
1
#11
21462-24F00
DISC, CLUTCH PRESSURE
$57.52¢28 761
1
#12
21471-24F00
SEAT, WAVE WASHER
$15.64¢7 820
1
#13
21472-06G00
WASHER, CLUTCH PLATE WAVE
$23.43¢11 713
1
#14
21481-24F32
BOLT, CLUTCH SPRING SUPPORT
$11.13¢5 566
1
#15
21482-24F30
BOLT, CLUTCH SPRING
$3.86¢1 932
1
#16
21610-02F12
CAM SET, CLUTCH
$295.18¢147 591
1
#17
09160-25056
WASHER (25X50X2.5)
$12.74¢6 371
1
#18
09159-24010
NUT
$14.28¢7 142
1
#19
09164-24006
WASHER
$4.05¢2 024
1
#20
23110-24F00
ROD, CLUTCH
$25.08¢12 541
1
#21
23111-26D00
ROD, CLUTCH PUSH LH
$17.42¢8 711
1
#22
23117-46E00
COVER, CLUTCH RELEASE
$7.44¢3 720
1
#23
23121-31E00
PIECE, CLUTCH PUSH
$26.99¢13 495
1
#24
23160-15H11
CYLINDER, CLUTCH RELEASE
$150.74¢75 371
1
#25
23163-10F00
.CUP
$8.15¢4 077
1
#26
23164-10F00
.SPRING
$6.38¢3 191
1
#27
59121-01A00
.BLEEDER
$9.58¢4 790
1
#28
59122-01A00
.CAP, BLEEDER
$4.76¢2 380
1
#29
09160-15045
WASHER (15.5X28X1)
$4.21¢2 105
1
#30
09263-15003
BEARING (15X28X2)
$8.97¢4 485
1
#31
09285-06015
OIL SEAL (6X34X5.5)
$8.63¢4 313
1
#32
07130-0625A
BOLT
$3.16¢1 581
1
#33
02112-0610A
SCREW
$1.84¢920
1
#34
04211-09129
PIN
$1.97¢983
1
