REAR MASTER CYLINDER GSX S1000AZL8 E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

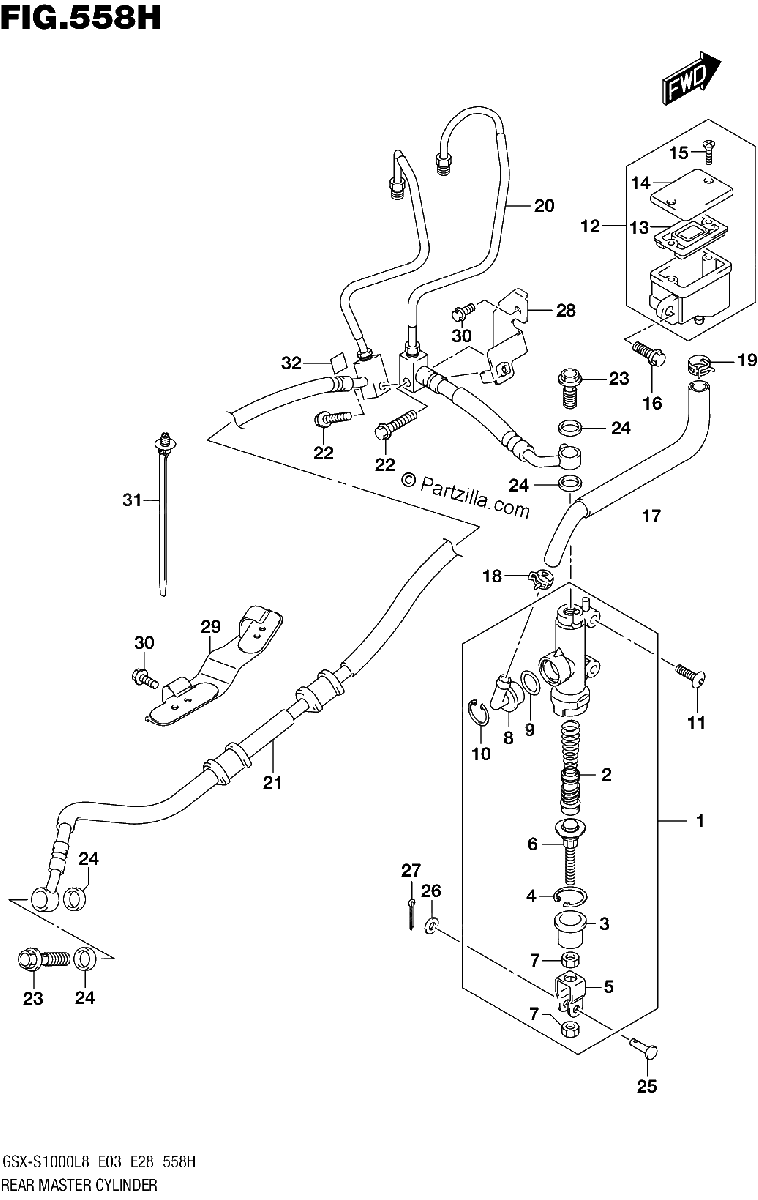

Diagrama de REAR MASTER CYLINDER GSX S1000AZL8 E33

Repuestos

#1
69600-47H30
CYLINDER ASSY, REAR MASTER
$297.56¢148 781
1
#2
69600-34810
.PISTON/CAP SET
$76.28¢38 138
1
#3
69691-00A00
..BOOT
$6.51¢3 256
1
#4
69665-47H00
.CIRCLIP
$6.78¢3 388
1
#5
69692-47H00
.YOKE
$18.84¢9 419
1
#6
69670-40A00
ROD, PUSH
$34.59¢17 294
1
#7
69693-47H00
.NUT
$3.35¢1 675
1
#8
69672-00B20
.CONNECTOR
$8.36¢4 181
1
#9
69686-34200
.O RING
$3.65¢1 825
1
#10
69674-00B20
.CIRCLIP
$4.86¢2 431
1
#11
09139-06028
SCREW (6X20)
$4.34¢2 169
1
#12
69740-44G00
TANK ASSY, REAR RESERVOIR
$78.22¢39 113
1
#13
59667-04700
.DIAPHRAGM
$11.66¢5 831
1
#14
59669-05D00
.CAP
$20.55¢10 275
1
#15
69689-04A00
.SCREW
$2.40¢1 200
1
#16
01547-0612A
BOLT
$2.63¢1 313
1
#17
69730-04K00
HOSE, RR RESERVOIR TANK
$25.85¢12 925
1
#18
09401-12404
CLIP
$3.09¢1 544
1
#19
09401-15407
CLIP
$3.73¢1 863
1
#20
69200-04K00
HOSE ASSY, RR MASTER TO UNIT
No Disponible
1
#21
69400-04K00
HOSE ASSY, RR UNIT TO CLPR
$122.00¢61 000
1
#22
01547-0625A
BOLT
$2.63¢1 313
1
#23
09360-10062
UNION
$7.57¢3 787
1
#24
09161-10009
WASHER (10X15X1.5)
$2.39¢1 194
1
#25
09200-06068
PIN (6X18.2)
$4.84¢2 419
1
#26
08322-0106A
WASHER
$2.39¢1 194
1
#27
04111-2015A
COTTER PIN
$1.59¢794
1
#28
69260-04K00
CLAMP, RR BRAKE HOSE
$12.94¢6 469
1
#29
69270-04K00
GUIDE, RR BRAKE HOSE
$26.25¢13 125
1
#30
01547-0612A
BOLT
$2.63¢1 313
1
#31
09407-17403
CLAMP (L:154)
$6.03¢3 013
1
#32
69411-04K00
PROTECTOR,BRAKE HOSE
$3.23¢1 613
1
