MUFFLER GSX S1000AZL8 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

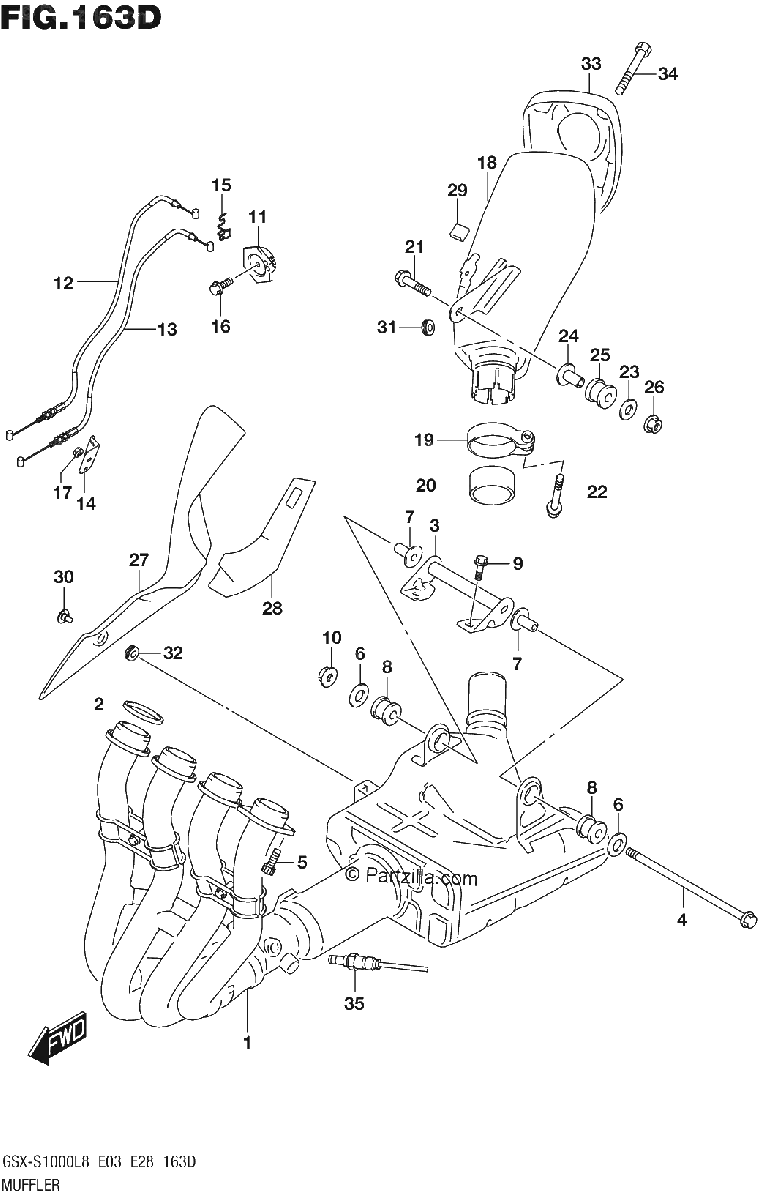

Diagrama de MUFFLER GSX S1000AZL8 E28

Repuestos

#1
14100-04K10
EXHAUST
$2352.18¢1 176 088
1
#2
14181-04K00
GASKET, EXHAUST PIPE *{NOT ILLUSTRATED}*
$9.10¢4 548
1
#3
14770-04K00
BRACKET, EXH SPRT
$32.46¢16 232
1
#4
09103-08464
BOLT (8X200)
$13.49¢6 745
1
#5
09106-08178
BOLT (8X25)
$3.56¢1 783
1
#6
09160-08503
WASHER (8.5X30X2.3)
$3.02¢1 512
1
#7
09180-08152
SPACER (8.6X12X24.2)
$6.30¢3 151
1
#8
09320-12077
CUSHION
$12.93¢6 463
1
#9
09135-08007
BOLT
$3.53¢1 765
1
#10
08316-1008A
NUT
$2.96¢1 478
1
#11
11269-18G01
PULLEY, CONTROLLER
$35.77¢17 883
1
#12
11276-04K00
CABLE, EXH VALVE NO.1
$64.32¢32 160
1
#13
11277-04K00
CABLE, EXH VALVE NO.2
$64.32¢32 160
1
#14
14250-21H00
BRACKET, EXHAUST VALVE CABLE
$12.30¢6 152
1
#15
14252-14J00
GUIDE, EXHAUST VALVE CABLE
$9.14¢4 571
1
#16
01547-0516A
BOLT
$1.87¢937
1
#17
08316-1006A
NUT
$2.62¢1 311
1
#18
14310-04K60-H01
BODY, MUFFLER
$567.93¢283 964
1
#19
14459-21H30
CLAMP, MUFFLER CONNECTOR
$36.43¢18 216
1
#20
14771-42F40
.CONNECTOR, EXHAUST | NOT ILLUSTRATED
$32.22¢16 112
1
#21
09106-08164
BOLT (8X45)
$7.73¢3 864
1
#22
09106-08162
BOLT (8X40)
$5.75¢2 875
1
#23
09160-08503
WASHER (8.5X30X2.3)
$3.02¢1 512
1
#24
09180-08152
SPACER (8.6X12X24.2)
$6.30¢3 151
1
#25
09320-12048
CUSHION
$5.53¢2 766
1
#26
08316-1008A
NUT
$2.96¢1 478
1
#27
14780-04K10
COVER, MUFFLER FRONT
$308.92¢154 462
1
#28
14784-04K00
SHIELD, MUFFLER COVER HEAT
No Disponible
1
#29
14795-10FA0
.GROMMET
$6.30¢3 151
1
#30
09139-06124
SCREW (6X12)
$5.46¢2 731
1
#31
09320-04009
BUSH
$2.22¢1 110
1
#32
09320-08066
CUSHION
$8.91¢4 456
1
#33
14791-04K20
COVER, MUFFLER REAR
$106.75¢53 377
1
#34
09106-06069
BOLT (6X15)
$4.06¢2 030
1
#35
18213-04K00
SENSOR, OXYGEN
$388.44¢194 218
1
