485B SIDE COWLING DL650XA

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

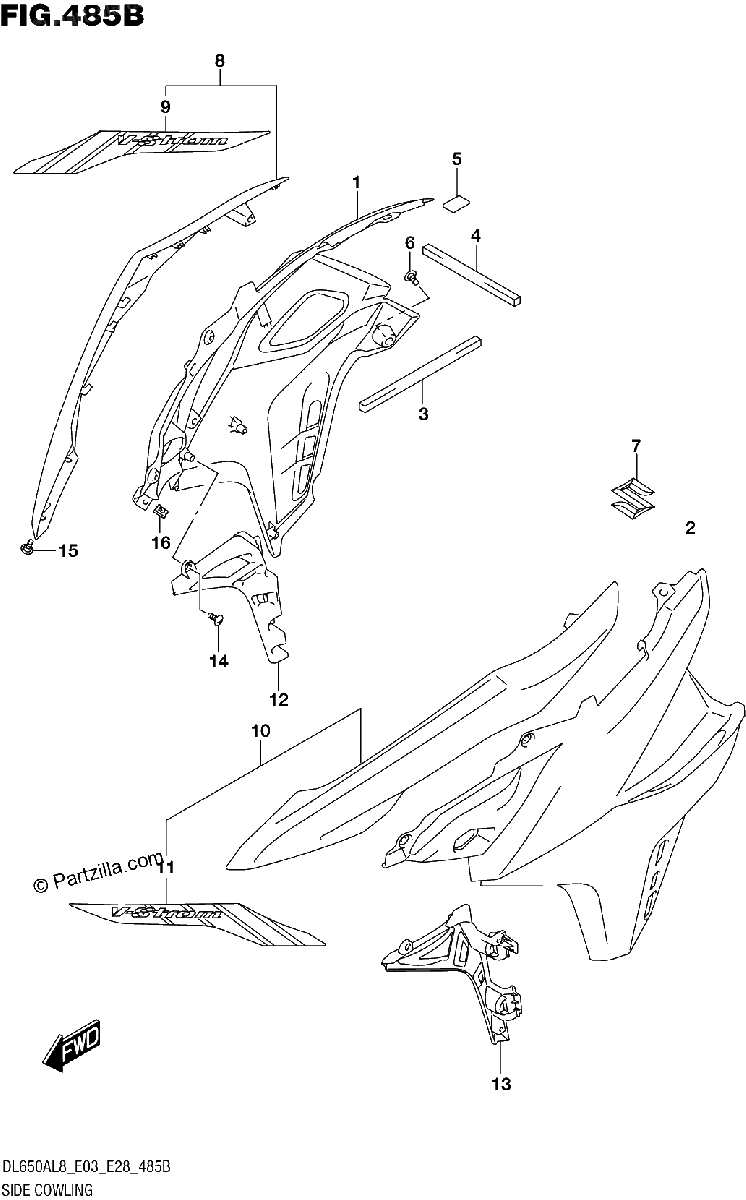

Diagrama de 485B SIDE COWLING DL650XA

Repuestos

#1
94413-28K00
COVER,SIDE COWL RH
$119.91¢59 955
1
#2
94414-28K00
COVER,SIDE COWL LH
$125.69¢62 848
1
#3
44176-31J00
CUSHION, TANK COVER SIDE NO.1
$3.42¢1 708
1
#4
44178-31J00
CUSHION, TANK COVER SIDE NO.3
$3.56¢1 783
1
#5
44612-13600
CUSHION
$5.78¢2 892
1
#6
47913-31J00
SCREW
$2.71¢1 357
1
#7
68111-47HA0
EMBLEM, in.Sin.
$44.37¢22 184
1
#12
94461-28K00
COVER,SIDE COWL INNER RH
$17.94¢8 970
1
#13
94462-28K00
COVER,SIDE COWL INNER LH
$17.62¢8 809
1
#14
03541-0512A
SCREW
$1.64¢822
1
#15
09139-05091
SCREW
$2.42¢1 208
1
#16
09148-05052
NUT
$3.65¢1 823
1
#8-1
94420-28K00-QEB
COVER,SIDE COWL RH (GRAY)
$130.90¢65 452
1
#8-2
94420-28K00-YVB
COVER,SIDE COWL RH (BLACK)
No Disponible
1
#8-3
94420-28K00-YWW
COVER,SIDE COWL RH (WHITE)
$158.24¢79 120
1
#9-1
68275-28K00-BQ6
.TAPE,COVER SIDE RH
No Disponible
1
#9-2
68275-28K00-BQ7
.TAPE,COVER SIDE RH
No Disponible
1
#9-3
68275-28K00-BQ8
.TAPE,COVER SIDE RH
$39.44¢19 722
1
#10-1
94430-28K00-QEB
COVER,SIDE COWL LH (GRAY)
$167.69¢83 846
1
#10-2
94430-28K00-YVB
COVER,SIDE COWL LH (BLACK)
No Disponible
1
#10-3
94430-28K00-YWW
COVER,SIDE COWL LH (WHITE)
$162.72¢81 363
1
#11-1
68285-28K00-BQ6
.TAPE,COVER SIDE LH
No Disponible
1
#11-2
68285-28K00-BQ7
.TAPE,COVER SIDE LH
No Disponible
1
#11-3
68285-28K00-BQ8
.TAPE,COVER SIDE LH
$39.44¢19 722
1
