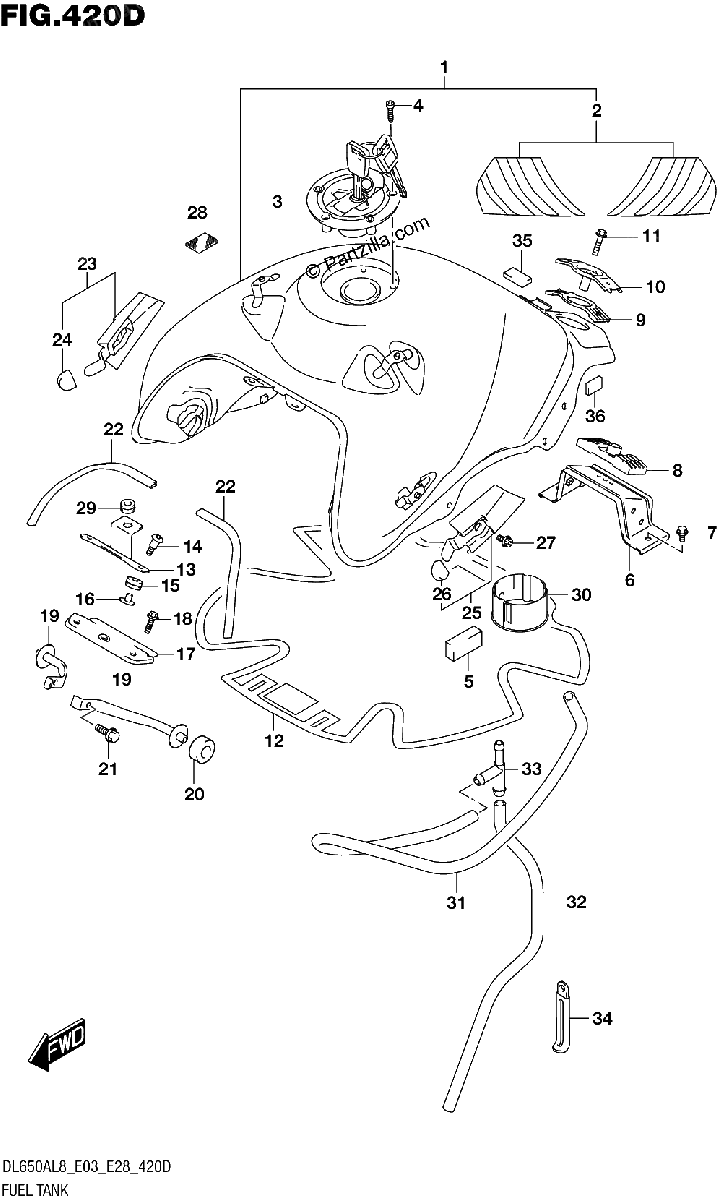

420D FUEL TANK DL650XA E33
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#3
CAP SET, FUEL TANK
$291.69¢145 844
#4
BOLT
$4.90¢2 450
#5
CUSHION,FUEL TANK SIDE
$15.90¢7 950
#6
BRACKET, REAR LOWER
No Disponible
#7
BOLT
$3.01¢1 506
#8
CUSHION, LOWER
$24.63¢12 313
#9
CUSHION, UPPER
$22.65¢11 325
#10
BRACKET, UPPER
No Disponible
#1-1
TANK ASSY,FUEL (YELLOW)
$1586.88¢793 438
#11
BOLT
$3.65¢1 825
#1-2
TANK ASSY,FUEL (BLACK)
$1591.91¢795 956
#12
SHIELD, TANK CENTER
$109.21¢54 606
#1-3
TANK ASSY,FUEL (WHITE)
$1591.91¢795 956
#13
BRACKET, FRONT COVER
$14.84¢7 419
#14
SCREW (6X25)
$3.80¢1 900
#15
CUSHION, FUEL TANK FRONT
$4.91¢2 456
#16
SPACER, FUEL TANK FRONT
$8.86¢4 431
#17
BRACKET, FUEL TANK FRONT
No Disponible
#18
BOLT (6X20)
$3.10¢1 550
#19
BRACKET, FRONT SIDE
No Disponible
#20
CUSHION, FRONT SIDE BRACKET
$6.59¢3 294
#2-1
.TAPE SET,FUEL TANK (GRAY,BLACK)
No Disponible
#21
BOLT
$2.56¢1 281
#2-2
.TAPE SET,FUEL TANK (YELLOW,BLACK)
$49.16¢24 581
#22
MOLDING, FUEL TANK
$24.22¢12 112
#2-3
.TAPE SET,FUEL TANK
$49.16¢24 581
#23
BRACKET,FUEL TANK COVER RH
$16.46¢8 231
#24
CUSHION
$2.46¢1 231
#25
BRACKET,FUEL TANK COVER LH
$16.46¢8 231
#26
CUSHION
$2.46¢1 231
#27
.BOLT
$3.13¢1 563
#28
.FASTENER, COWLING
$11.74¢5 869
#29
CUSHION
$5.83¢2 913
#30
VESSEL,FUEL TANK INNER
No Disponible
#31
HOSE,FUEL TANK DRAIN NO.1
No Disponible
#32
HOSE, FUEL TANK DRAIN NO.2
No Disponible
#33
3 WAY
$6.35¢3 175
#34
CLAMP (L:80)
$2.29¢1 144
#35
.CUSHION
$7.16¢3 581
#36
CUSHION,FRAME COVER FRONT RR
$7.75¢3 875
