474A REAR FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

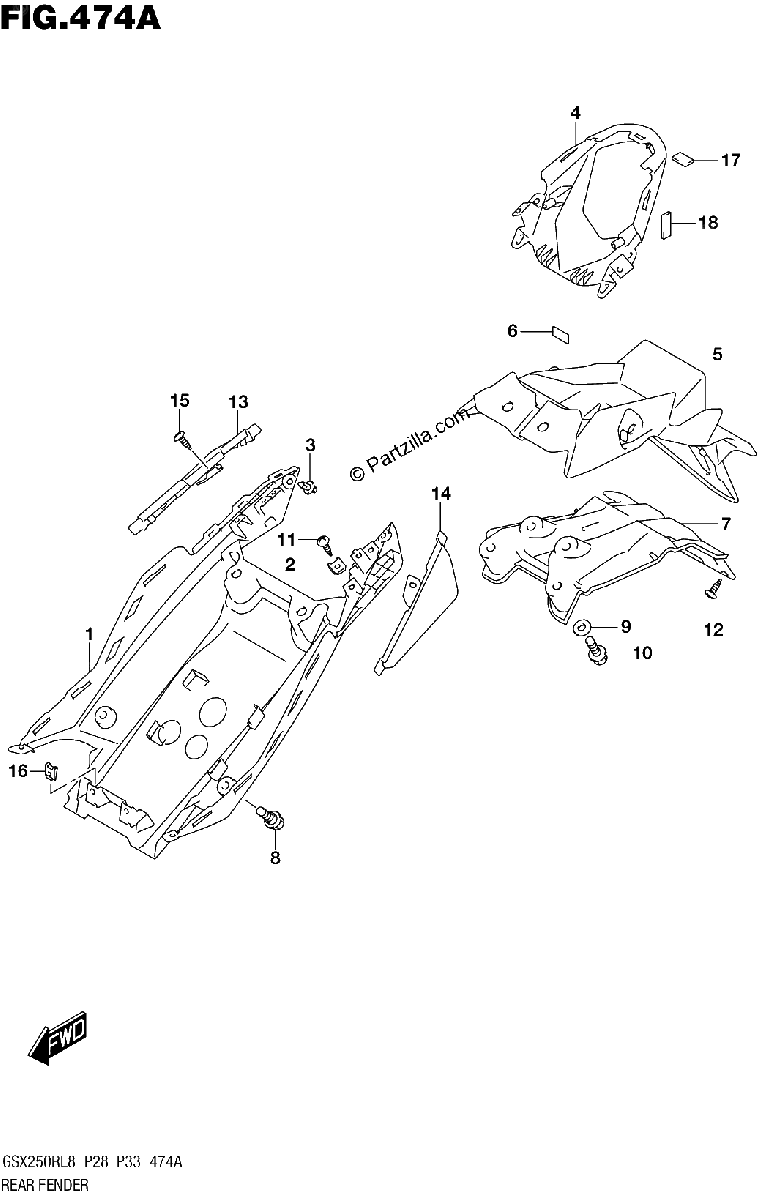

Diagrama de 474A REAR FENDER

Repuestos

#1
63111-20K00
FENDER, REAR FRONT
$49.13¢24 564
1
#2
47399-48H00
NUT, UNDER COWL
$2.96¢1 478
1
#3
48292-32GH0
CLIP, UNDER COWL
$3.22¢1 610
1
#4
63112-20K00
COVER, REAR FENDER FRONT
$34.27¢17 135
1
#5
63113-20K20
FENDER, REAR REAR
$30.57¢15 283
1
#6
63114-20K00
CUSHION, RR FENDER REAR
$3.01¢1 507
1
#7
63131-20K00
BRACKET, REAR FENDER REAR
$55.45¢27 726
1
#8
09111-06107
BOLT (6X12)
$3.09¢1 547
1
#9
09160-06152
WASHER (6.5X20X1.2)
$2.84¢1 420
1
#10
01550-0616B
BOLT
$2.93¢1 466
1
#11
03541-0516A
SCREW
$1.64¢822
1
#12
03541-0516B
SCREW
$2.12¢1 058
1
#13
47124-20K00
COVER, REAR FENDER SIDE RH
$22.42¢11 212
1
#14
47224-20K00
COVER, REAR FENDER SIDE LH
$22.02¢11 011
1
#15
03541-0516A
SCREW
$1.64¢822
1
#16
47399-48H00
NUT, UNDER COWL
$2.96¢1 478
1
#17
63116-20K00
CUSHION, RR FENDER FR NO.1
$3.01¢1 507
1
#18
63117-20K00
CUSHION, RR FENDER FR NO.2
$3.01¢1 507
1
