407A STAND

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

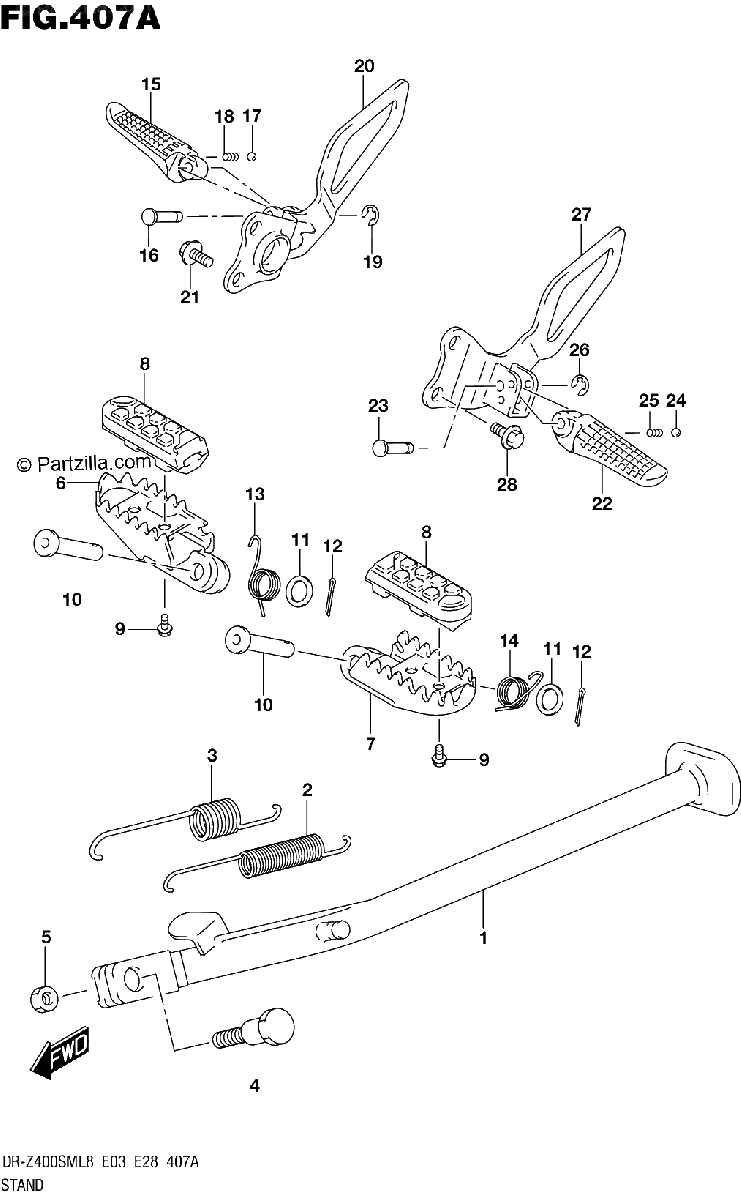

Diagrama de 407A STAND

Repuestos

#1
42310-29F20
STAND, PROP
$199.75¢99 875
1
#2
09443-15046
SPRING | INNER
$9.93¢4 963
1
#3
09443-22017
SPRING | OUTER
$9.11¢4 556
1
#4
09111-10060
BOLT (10X33)
$4.84¢2 419
1
#5
42321-03FK0
NUT
$6.16¢3 081
1
#6
43550-29E01
FOOTREST, RH
$150.56¢75 281
1
#7
43560-29E01
FOOTREST, LH
$147.73¢73 863
1
#8
43530-29F00
RUBBER, FOOTREST
$34.13¢17 063
1
#9
01547-0510A
BOLT
$3.34¢1 669
1
#10
09200-10019
PIN (10X41.5)
$8.03¢4 013
1
#11
08322-0110B
WASHER
$3.09¢1 544
1
#12
04111-2520A
COTTER PIN
$1.59¢794
1
#13
09448-18030
SPRING | RH
$6.30¢3 150
1
#14
09448-18029
SPRING | LH
$6.30¢3 150
1
#15
43611-33E11
BAR, PILLION FOOTREST RH
$75.13¢37 563
1
#16
87259-85510
PIN, PILLION FOOTREST
$6.38¢3 188
1
#17
06111-07004
.BALL
$1.59¢794
1
#18
09440-05005
.SPRING
$1.85¢925
1
#19
08332-1104B
.E RING
$2.34¢1 169
1
#20
43650-29F20
BRACKET, PILLION RH
$117.34¢58 669
1
#21
01550-0816B
BOLT
$3.57¢1 787
1
#22
43621-33E11
BAR, PILLION FOOTREST LH
$75.13¢37 563
1
#23
87259-85510
PIN, PILLION FOOTREST
$6.38¢3 188
1
#24
06111-07004
.BALL
$1.59¢794
1
#25
09440-05005
.SPRING
$1.85¢925
1
#26
08332-1104B
.E RING
$2.34¢1 169
1
#27
43750-29F00
BRACKET, PILLION LH
$104.71¢52 356
1
#28
01550-0816B
BOLT
$3.57¢1 787
1
