201A CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

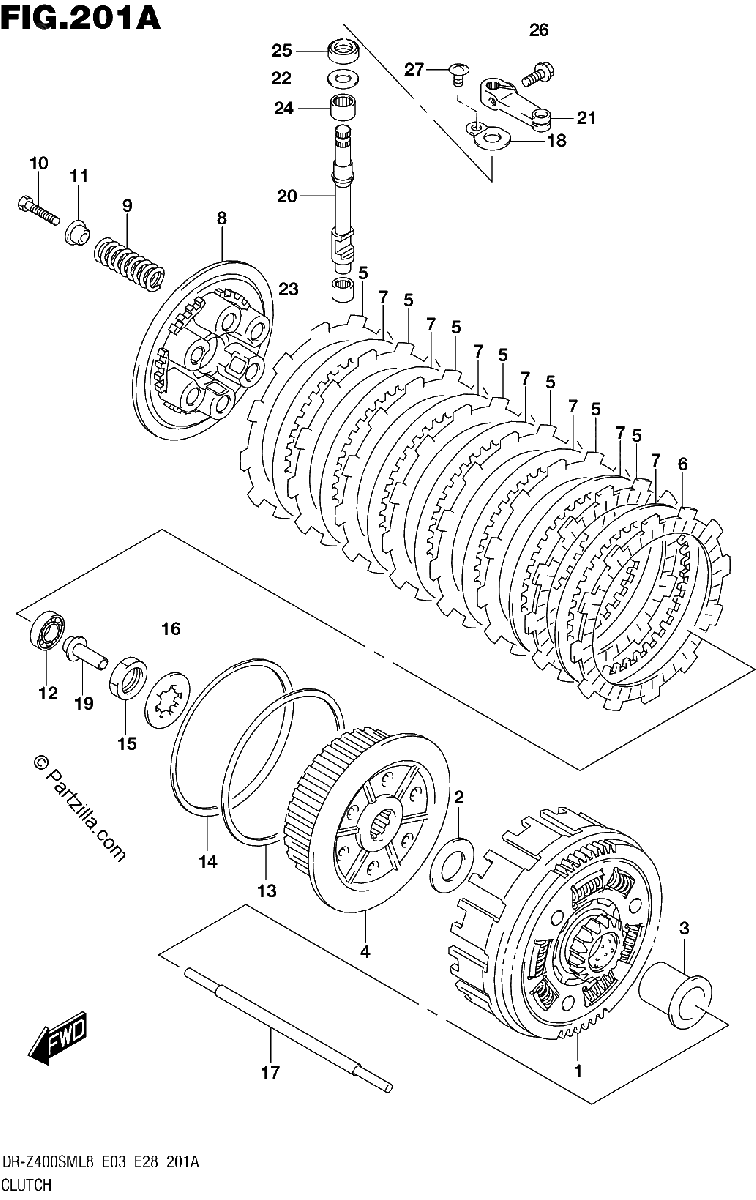

Diagrama de 201A CLUTCH

Repuestos

#1
21200-29F10
GEAR ASSY, PRIMARY DRIVEN
$543.47¢271 737
1
#2
08211-22425
WASHER
$7.66¢3 831
1
#3
21251-29F00
SPACER, PRIMARY DRIVEN GEAR
$71.81¢35 906
1
#4
21410-29F00
HUB, CLUTCH SLEEVE
$194.29¢97 144
1
#5
21441-29F00
PLATE, CLUTCH DRIVE NO.1
$27.17¢13 587
1
#6
21442-29F00
PLATE, CLUTCH DRIVE NO.2
$27.17¢13 587
1
#7
21451-44D00
PLATE, CLUTCH DRIVEN (T:1.6)
$13.45¢6 725
1
#8
21462-29F00
DISC, CLUTCH PRESSURE
$84.77¢42 387
1
#9
21413-29F00
SPRING, CLUTCH
$7.97¢3 988
1
#10
07130-0630A
BOLT
$4.88¢2 438
1
#11
21414-29F00
WASHER, CLUTCH SPRING
$7.66¢3 831
1
#12
09262-12001
BEARING (12X28X8)
$22.01¢11 006
1
#13
09160-00003
WASHER (112X122X1)
$12.14¢6 069
1
#14
09164-00008
WASHER
$22.17¢11 087
1
#15
09140-20001
NUT
$3.96¢1 981
1
#16
09167-22021
LOCK WASHER
$2.30¢1 150
1
#17
23110-29F00
ROD, CLUTCH PUSH
$31.71¢15 856
1
#18
23117-05200
RETAINER, CLUTCH RLSE OIL SEA
$6.94¢3 469
1
#19
23121-29F00
PIECE, CLUTCH PUSH
$35.27¢17 638
1
#20
23122-29F00
CAMSHAFT, CLUTCH RELEASE
$59.33¢29 663
1
#21
23271-20902
ARM, CLUTCH RELEASE
$35.29¢17 644
1
#22
09181-10195
SHIM (10X20X1)
$2.61¢1 306
1
#23
09263-10014
BEARING (10X14X10)
$15.90¢7 950
1
#24
09263-12024
BEARING (12X16X10)
$14.90¢7 450
1
#25
09282-10012
OIL SEAL (10X20X6)
$9.38¢4 688
1
#26
01547-0616A
BOLT
$2.63¢1 313
1
#27
02142-0610A
SCREW
$1.80¢900
1
