420B FUEL TANK SV650L8 E03 FOR AGQ

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

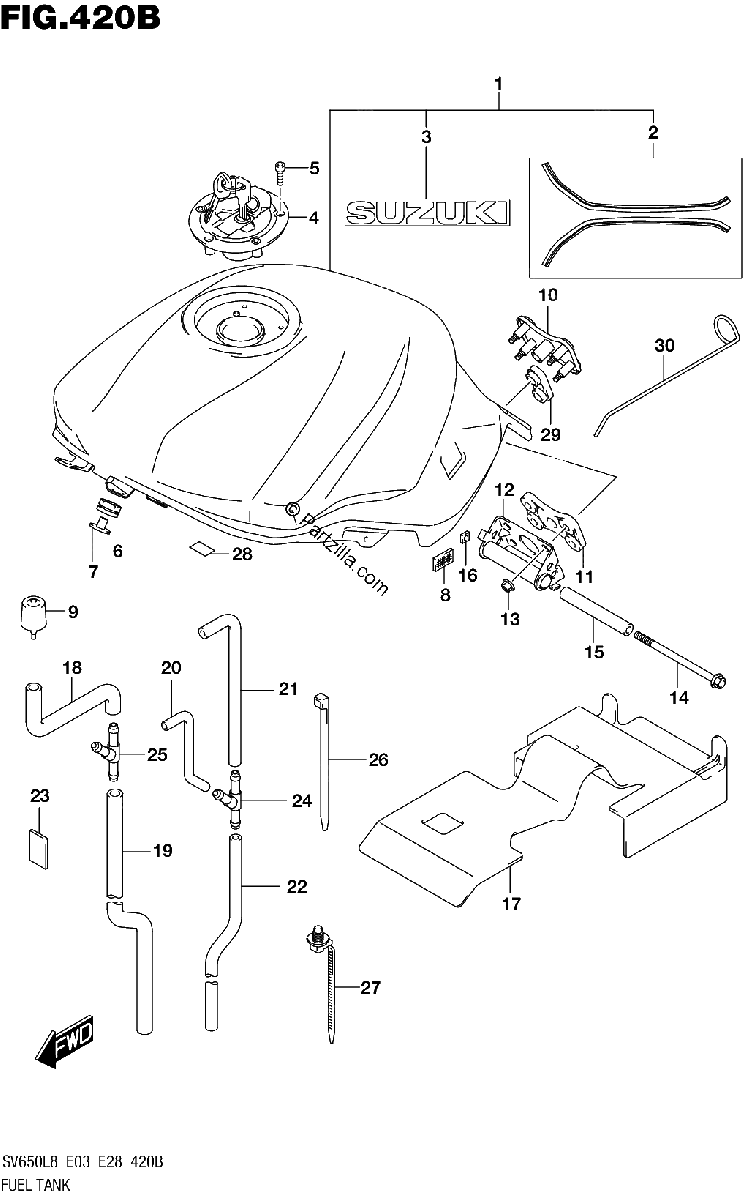

Diagrama de 420B FUEL TANK SV650L8 E03 FOR AGQ

Repuestos

#1
44100-18K80-AGQ
TANK ASSY, FUEL (BLUE/WHITE)
$1354.75¢677 375
1
#2
68110-18K10-BN9
.TAPE SET, FUEL TANK
$179.46¢89 731
1
#3
68111-47C10-YD8
.EMBLEM, "SUZUKI" (SILVER)
$31.00¢15 500
1
#4
44200-17820
CAP SET, FUEL TANK
$291.69¢145 844
1
#5
44244-11J00
BOLT
$4.90¢2 450
1
#6
44511-18K00
CUSHION, FUEL TANK FRONT
$8.73¢4 363
1
#7
44512-04K00
SPACER, FUEL TANK FRONT
$9.54¢4 769
1
#8
44572-13G00
FASTENER
$13.19¢6 594
1
#9
44542-29G00
CUSHION, FUEL TANK SIDE
$9.46¢4 731
1
#10
44570-16G00
BRACKET, REAR UPPER
No Disponible
1
#11
44542-18K00
CUSHION, FUEL TANK REAR LOWER
$24.22¢12 112
1
#12
44530-44H00
BRACKET, FUEL TANK REAR
No Disponible
1
#13
08319-3106A
.NUT
$2.63¢1 313
1
#14
09103-06060
BOLT (6X100)
$3.29¢1 644
1
#15
44561-35F00
SPACER
$17.01¢8 506
1
#16
08318-1106A
NUT
No Disponible
1
#17
44191-18K00
SHEET, HEAT SHIELD RUBBER
$77.29¢38 644
1
#18
44423-18K00
HOSE, FUEL TANK DRAIN NO.1
No Disponible
1
#19
44423-18K10
HOSE, FUEL TANK DRAIN NO.2
No Disponible
1
#20
44424-15H10
HOSE, BREATHER NO.3
$18.52¢9 263
1
#21
44424-18K01
HOSE, FUEL TANK BREATHER NO.1
No Disponible
1
#22
44424-18K10
HOSE, FUEL TANK BREATHER NO.2
No Disponible
1
#23
44427-18K00
SHIELD, DRAIN HOSE HEAT
No Disponible
1
#24
09367-06007
3 WAY
$4.14¢2 069
1
#25
09367-08010
3 WAY
No Disponible
1
#26
09407-14407
CLAMP (L:145)
$3.65¢1 825
1
#27
09407-17403
CLAMP (L:154)
$6.03¢3 013
1
#28
36611-16G00
TAPE, WIRING HARNESS
$4.10¢2 050
1
#29
44541-18K00
CUSHION, FUEL TANK REAR UPPER
No Disponible
1
#30
44560-23H00
STAY, FUEL TANK *{OPT}*
$60.69¢30 344
1
