116A OIL PAN OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

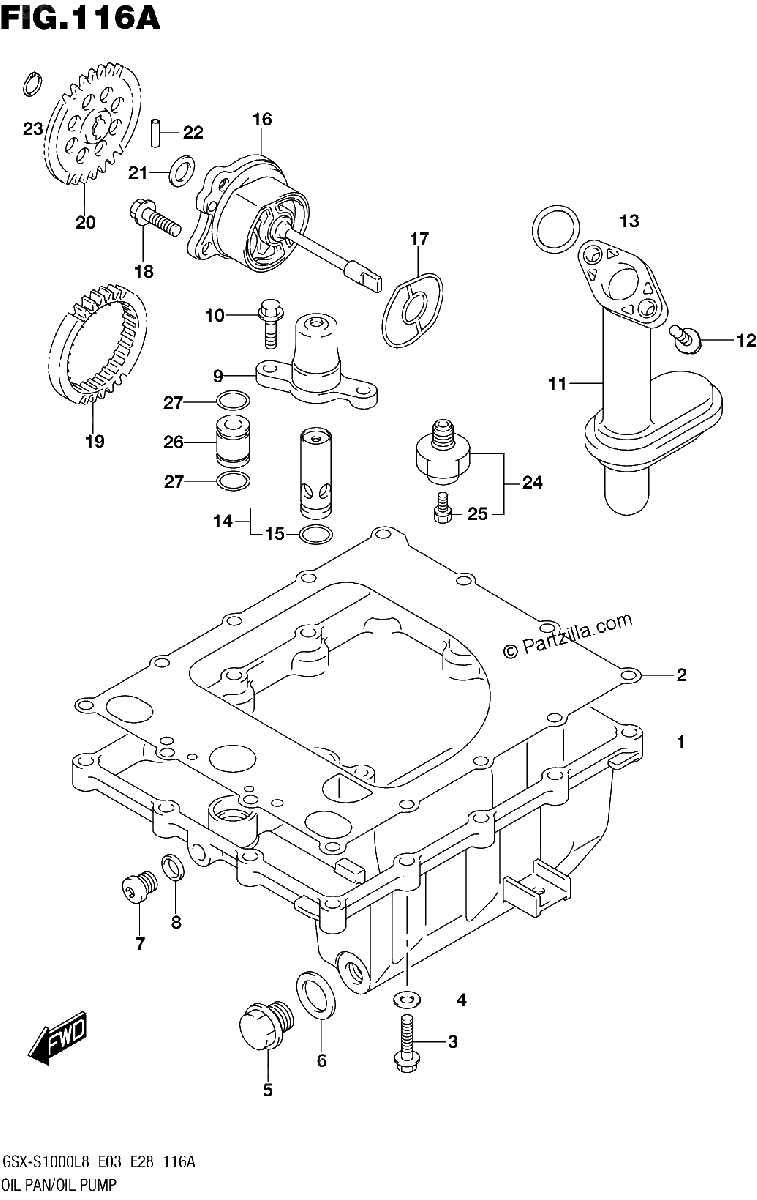

Diagrama de 116A OIL PAN OIL PUMP

Repuestos

#1
11511-21H01
PAN, OIL
$199.60¢99 800
1
#2
11489-21H00
.GASKET, OIL PAN
$23.44¢11 719
1
#3
01547-0625A
BOLT
$2.63¢1 313
1
#4
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#6
09168-14002
GASKET (13.8X18.8X4.8)
$3.44¢1 719
1
#7
09248-10010
PLUG (10X10)
$4.97¢2 488
1
#8
09168-10002
GASKET (10X14X3.6)
$2.48¢1 238
1
#9
11512-44G00
CAP, OIL RELIEF VALVE
$22.95¢11 475
1
#10
01547-0620A
BOLT
$2.63¢1 313
1
#11
16520-04K00
STRAINER, ENGINE OIL
$43.41¢21 706
1
#12
01550-0620A
BOLT
$2.56¢1 281
1
#13
09280-19008
O RING (D:2.62,ID:20.3)
$6.47¢3 238
1
#14
16440-24F00
VALVE ASSY, OIL RELIEF
$59.66¢29 831
1
#15
09280-13004
.O RING (D:1.9,ID:13)
$2.85¢1 425
1
#16
16400-21H00
PUMP ASSY, ENGINE OIL
$232.49¢116 244
1
#17
16491-35F00
O RING
$7.41¢3 706
1
#18
01547-0620A
BOLT
$2.63¢1 313
1
#19
16321-35F01
GEAR, OIL PUMP DRIVE (NT:33)
$93.66¢46 831
1
#20
16331-35F00
GEAR, OIL PUMP DRIVEN (NT:35)
$100.02¢50 012
1
#21
09181-10158
SHIM (10X18X0.5)
$2.56¢1 281
1
#22
09261-04009
PIN (4X15.8)
$1.95¢975
1
#23
08331-31109
CIRCLIP
$2.30¢1 150
1
#24
37820-33D10
SWITCH ASSY, OIL PRESSURE
$32.98¢16 488
1
#25
37822-33D00
.BOLT
$5.88¢2 938
1
#26
11281-44G00
PIPE, OIL GALLERY
$18.69¢9 344
1
#27
09280-13004
.O RING (D:1.9,ID:13)
$2.85¢1 425
1
#5-1
09247-14036
PLUG (14X20) | OIL DRAIN
$7.26¢3 631
1
#5-2
11972-17E70
PLUG, OIL DRAIN
No Disponible
1
