445H FRAME COVER GSX S1000AZL8 E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

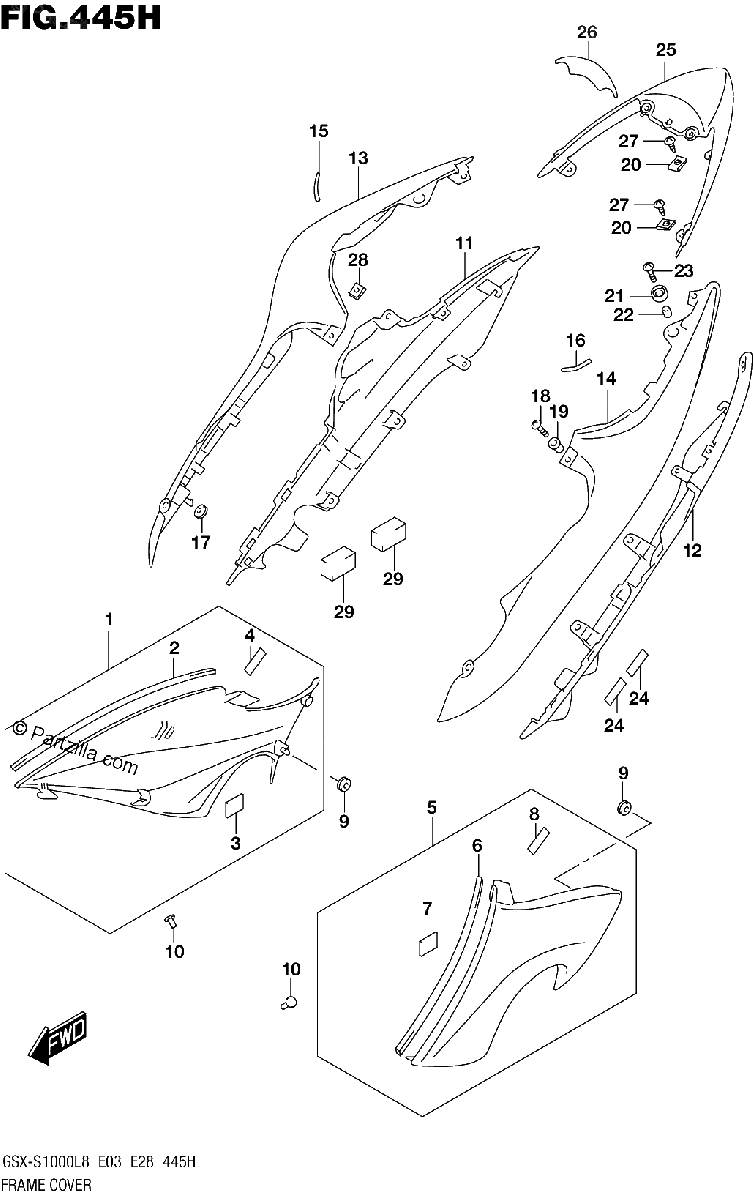

Diagrama de 445H FRAME COVER GSX S1000AZL8 E33

Repuestos

#1
47110-04K00
COVER, FRAME FRONT RH
$83.06¢41 532
1
#2
44277-37H00
.CUSHION, SIDE COVER
$5.84¢2 921
1
#3
44572-13G00
FASTENER
$12.13¢6 066
1
#4
94476-38C00
CUSHION, HEAT SHIELD
No Disponible
1
#5
47210-04K00
COVER, FRAME FRONT LH
$64.25¢32 125
1
#6
44277-37H00
.CUSHION, SIDE COVER
$5.84¢2 921
1
#7
44572-13G00
FASTENER
$12.13¢6 066
1
#8
94476-38C00
CUSHION, HEAT SHIELD
No Disponible
1
#9
09320-06504
CUSHION
$5.36¢2 680
1
#10
09409-10314
CLIP
$2.38¢1 190
1
#11
47131-04K00
COVER, FRAME REAR LOWER RH
$30.44¢15 220
1
#12
47231-04K00
COVER, FRAME REAR LOWER LH
$30.99¢15 496
1
#13
47121-04K00-YKV
COVER, FRAME REAR UPPER RH (BLACK)
$212.23¢106 116
1
#14
47221-04K00-YKV
COVER, FRAME REAR UPPER LH (BLACK)
$212.23¢106 116
1
#15
47313-04K01
TAPE, FRAME COVER RH
No Disponible
1
#16
47314-04K01
TAPE, FRAME COVER LH
$15.81¢7 906
1
#17
09320-08028
CUSHION
$3.36¢1 679
1
#18
02142-1520B
SCREW
$2.81¢1 403
1
#19
09159-05019
NUT
$7.72¢3 858
1
#20
09148-05047
NUT
$2.43¢1 213
1
#21
47312-37H00
CUSHION
$3.36¢1 679
1
#22
09180-06283
SPACER (6.5X10X7)
$2.27¢1 133
1
#23
09136-06105
SCREW (6X20)
$2.38¢1 190
1
#24
94443-06G00
TAPE, REAR FENDER
$3.56¢1 783
1
#25
47311-04K00-YKV
COVER, FRAME CENTER (BLACK) *{FOR PGZ}*
$137.39¢68 695
1
#26
47312-04K00
TAPE, FRAME COVER CTR
$15.81¢7 906
1
#27
03541-0512B
SCREW
$2.12¢1 058
1
#28
09148-05047
NUT
$2.43¢1 213
1
#29
17798-39G00
CUSHION, CENTER
$7.34¢3 669
1
