206A TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

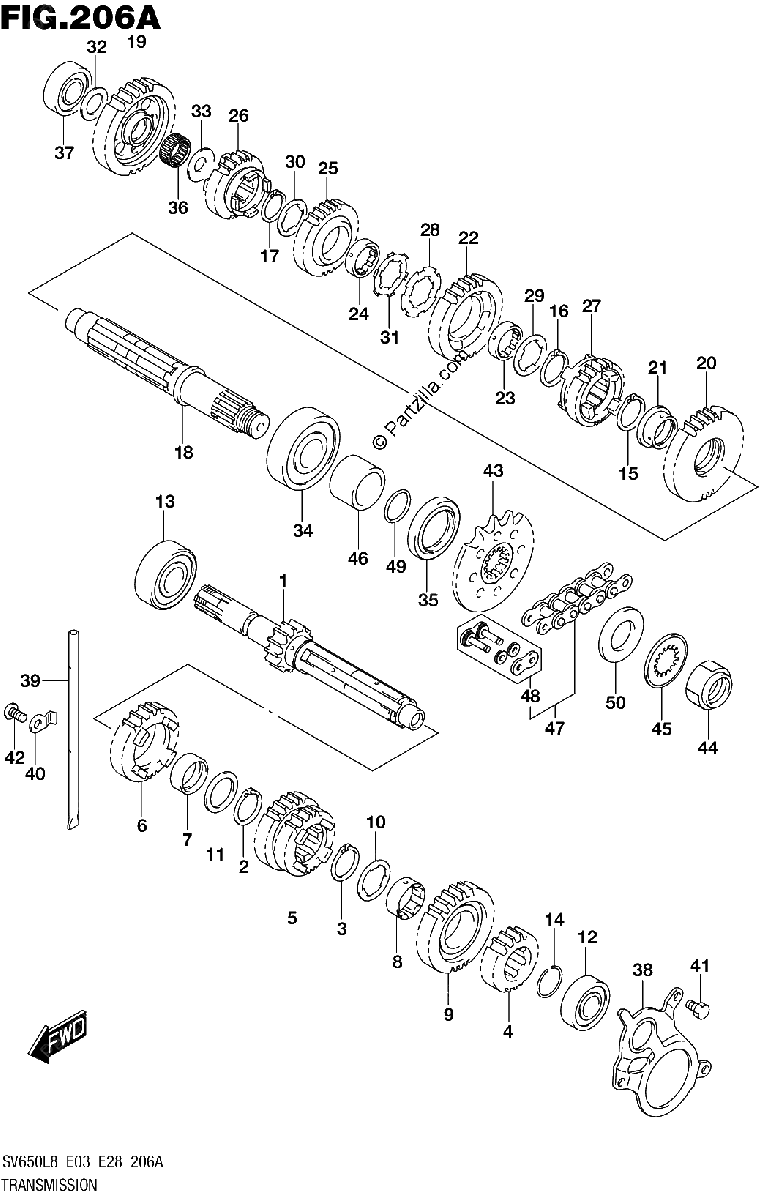

Diagrama de 206A TRANSMISSION

Repuestos

#1
24120-27G00
SHAFT, COUNTER (NT:13)
No Disponible
1
#2
24127-19F00
CIRCLIP
$4.80¢2 398
1
#3
24127-19F00
CIRCLIP
$4.80¢2 398
1
#4
24221-20F10
GEAR, 2ND DRIVE (NT:18)
No Disponible
1
#5
24231-20F10
GEAR, 3RD 4TH DRIVE
No Disponible
1
#6
24251-20F02
GEAR, 5TH DRIVE (NT:26)
No Disponible
1
#7
24252-19F00
BUSH, 5TH DRIVE GEAR
$21.25¢10 626
1
#8
24252-38A10
BUSH, 5TH
No Disponible
1
#9
24261-20F00
GEAR, 6TH DRIVE (NT:27)
No Disponible
1
#10
09167-25021
LOCK WASHER
$4.63¢2 317
1
#11
09181-25167
SHIM (25X34X1)
$3.42¢1 708
1
#12
09262-17046
BEARING (17X40X12) | LH
$45.94¢22 971
1
#13
09262-20145
BEARING (20X52X15) | RH
$45.52¢22 758
1
#14
09380-25012
CIRCLIP
$2.99¢1 495
1
#15
24127-19F00
CIRCLIP
$4.80¢2 398
1
#16
24127-19F00
CIRCLIP
$4.80¢2 398
1
#17
24127-19F00
CIRCLIP
$4.80¢2 398
1
#18
24130-44H30
SHAFT,DRIVE
No Disponible
1
#19
24311-44H00
GEAR, 1ST DRIVEN (NT:32)
$144.35¢72 174
1
#20
24321-44H10
GEAR, 2ND DRIVEN (NT:32)
$67.47¢33 735
1
#21
24322-19F10
BUSH, 2ND DRIVEN GEAR
No Disponible
1
#22
24331-44H00
GEAR, 3RD DRIVEN (NT:29)
$73.46¢36 731
1
#23
24332-24510
BUSH, DRIVEN GEAR
$23.20¢11 598
1
#24
24332-24510
BUSH, DRIVEN GEAR
$23.20¢11 598
1
#25
24341-44H00
GEAR, 4TH DRIVEN (NT:27)
$165.23¢82 616
1
#26
24351-44H10
GEAR,5TH DRIVEN (NT:25)
$132.57¢66 286
1
#27
24361-44H00
GEAR, 6TH DRIVEN (NT:23)
No Disponible
1
#28
09167-25013
LOCK WASHER
$3.97¢1 984
1
#29
09167-25021
LOCK WASHER
$4.63¢2 317
1
#30
09167-25021
LOCK WASHER
$4.63¢2 317
1
#31
09169-25001
WASHER
$3.28¢1 639
1
#32
09181-17195
SHIM (17X28X1)
$3.37¢1 685
1
#33
09181-20195
SHIM (20X30X1)
$3.09¢1 547
1
#34
09262-25125
BEARING (25X62X17) | LH
$64.83¢32 413
1
#35
09283-36011
OIL SEAL (36X50X6)
$27.61¢13 806
1
#36
09263-20115
BEARING,1ST DRIVEN GEAR
$26.60¢13 300
1
#37
09262-17023
BEARING (17X40X12) | RH
$18.11¢9 056
1
#38
24751-19F10
RETAINER, DRIVE SHAFT OIL SEA
$18.26¢9 131
1
#39
24881-12C30
GUIDE, T/M OIL
No Disponible
1
#40
24885-12C10
RETAINER, T/M OIL
No Disponible
1
#41
01500-0612A
BOLT
$2.15¢1 075
1
#42
02112-0612A
SCREW
$1.71¢857
1
#43
27511-12C10
SPROCKET, ENGINE (NT:15)
$51.43¢25 714
1
#44
09159-20004
NUT
$16.95¢8 476
1
#45
09167-25028
LOCK WASHER
$3.36¢1 679
1
#46
27531-19F10
SPACER, ENGINE SPROCKET
$47.35¢23 673
1
#47
27600-44H10-112
CHAIN ASSY, DRIVE (DID 520V0)
$355.46¢177 733
1
#48
27620-44H10
.JOINT SET, CHAIN
$19.87¢9 936
1
#49
09280-24010
O RING (D:2.4,ID:23.7)
$6.11¢3 053
1
#50
08211-25442
WASHER
$3.66¢1 829
1
