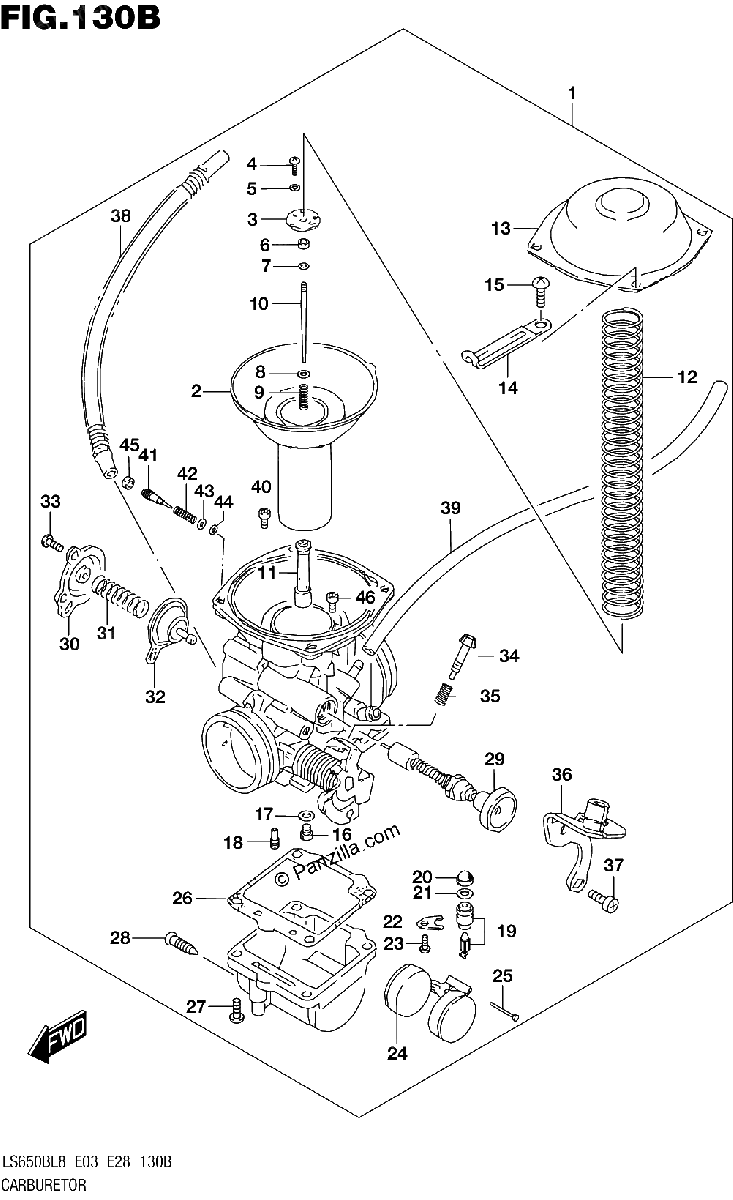

130B CARBURETOR LS650BL8 E28
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CARBURETOR ASSY
$975.52¢487 763
#2
.DIAPHRAGM ASSY
$309.13¢154 563
#3
.PLATE
$9.56¢4 781
#4
.SCREW
$2.09¢1 044
#5
.LOCK WASHER
$2.16¢1 081
#6
.RING
$7.15¢3 575
#7
.CLIP NEEDLE
$5.69¢2 844
#8
.WASHER
$4.55¢2 275
#9
.SPRING
$10.96¢5 481
#10
.NEEDLE, JET (5C17)
$24.90¢12 450
#11
.JET, NEEDLE (X-7M)
$68.16¢34 081
#12
.SPRING
$31.15¢15 575
#13
.COVER
No Disponible
#14
CLAMP (L:80)
$2.29¢1 144
#15
SCREW
$1.86¢931
#16
.JET, MAIN (145)
$22.79¢11 394
#17
.WASHER
$3.65¢1 825
#18
.JET, PILOT (52.5)
$17.50¢8 750
#19
.VALVE ASSY, NEEDLE
$117.10¢58 550
#20
.FILTER
$12.26¢6 131
#21
.O RING, NEEDLE VALVE SEAT
$7.14¢3 569
#22
.PLATE
$8.14¢4 069
#23
.SCREW
$2.01¢1 006
#24
.FLOAT
$34.55¢17 275
#25
.PIN, FLOAT
$2.88¢1 438
#26
.GASKET, FLOAT CHAMBER
$13.41¢6 706
#27
SCREW
$1.89¢944
#28
.SCREW, DRAIN
$3.56¢1 781
#29
.PLUNGER ASSY
$76.54¢38 269
#30
.COVER
$30.00¢15 000
#31
.SPRING
$5.88¢2 938
#32
.DIAPHRAGM ASSY
$63.49¢31 744
#33
.SCREW
$1.70¢850
#34
.ADJUSTER
$19.16¢9 581
#35
.SPRING
$6.97¢3 488
#36
.BRACKET ASSY
$67.63¢33 813
#37
SCREW
$1.86¢931
#38
.HOSE ASSY
$22.77¢11 388
#39
HOSE (5X8.2X600)
$11.83¢5 913
#40
.JET, PILOT (230)
$22.79¢11 394
#41
.SCREW, AIR
$13.94¢6 969
#42
.SPRING
$5.17¢2 588
#43
.WASHER
$2.34¢1 169
#44
.O RING
$5.17¢2 588
#45
.PLUG
$5.49¢2 744
#46
.JET (#45)
$22.79¢11 394
