485A SIDE COWLING YSF

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

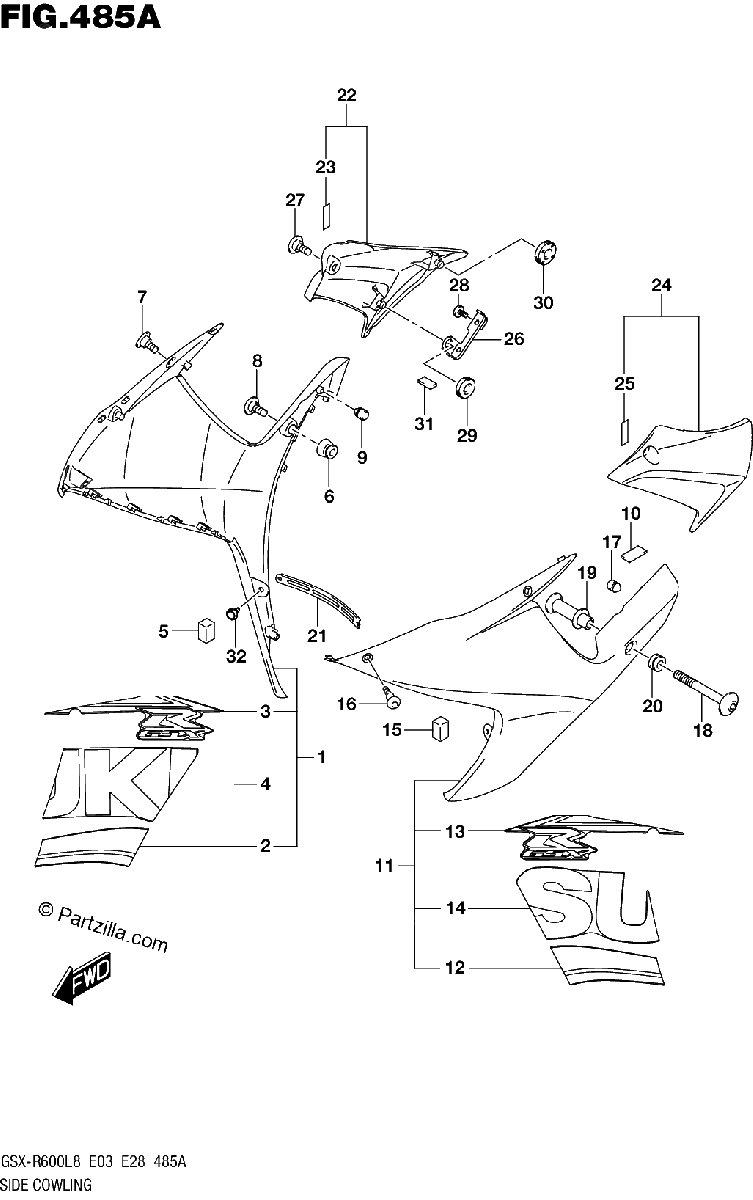

Diagrama de 485A SIDE COWLING YSF

Repuestos

#1
94450-14J90-YSF
COWLING, SIDE RH (BLUE)
$610.48¢305 238
1
#2
68685-14JA0-BDH
.TAPE, SIDE COWLING LOWER RH (BLUE/WHITE)
$44.41¢22 206
1
#3
68685-14J80-BDJ
.TAPE, SIDE COWLING UPPER RH (BLUE/WHITE)
$58.03¢29 013
1
#4
68685-14J90-AGQ
.TAPE SIDE COWLING (BLUE/WHITE)
$50.84¢25 419
1
#5
94477-14J01
CUSHION
$15.40¢7 700
1
#6
94479-15H00
CUSHION, LH
$5.50¢2 750
1
#7
09139-05064
SCREW (5X13)
$3.33¢1 663
1
#8
09139-06190
BOLT (6X20)
$4.91¢2 456
1
#9
09321-06013
CUSHION
$1.98¢988
1
#10
44543-10G00
PROTECTOR (20X40X3.0) | CUT AS REQUIRED
$6.81¢3 406
1
#11
94460-14J90-YSF
COWLING, SIDE LH (BLUE)
$610.48¢305 238
1
#12
68695-14JA0-BDH
.TAPE, SIDE COWLING LOWER LH (BLUE/WHITE)
$44.41¢22 206
1
#13
68695-14J80-BDJ
.TAPE, SIDE COWLING UPPER LH (BLUE/WHITE)
$58.03¢29 013
1
#14
68695-14J90-AGQ
.TAPE SIDE COWLING (BLUE/WHITE)
$50.84¢25 419
1
#15
94477-14J01
CUSHION
$15.40¢7 700
1
#16
09139-05064
SCREW (5X13)
$3.33¢1 663
1
#17
09321-06013
CUSHION
$1.98¢988
1
#18
94488-14J00
SCREW, SIDE COWLING LH
$4.40¢2 200
1
#19
94489-14J00
SPACER, SIDE COWLING LH
$13.36¢6 681
1
#20
09320-09016
CUSHION
$2.56¢1 281
1
#21
94498-14J00
PLATE, UNDER COWLING CENTER
$20.91¢10 456
1
#22
94570-14J00
COVER, SIDE COWLING RH
$22.51¢11 256
1
#23
94443-06G00
TAPE, REAR FENDER
$3.88¢1 938
1
#24
94580-14J00
COVER, SIDE COWLING LH
$22.51¢11 256
1
#25
94443-06G00
TAPE, REAR FENDER
$3.88¢1 938
1
#26
94491-14J00
BRACKET, COVER SIDE RH
$13.50¢6 750
1
#27
09139-05064
SCREW (5X13)
$3.33¢1 663
1
#28
09139-06062
BOLT
$3.98¢1 988
1
#29
09320-08013
.CUSHION
$2.49¢1 244
1
#30
09320-08028
CUSHION
$3.65¢1 825
1
#31
94612-31F00
CUSHION, FRONT PANEL
$6.72¢3 363
1
#32
94479-35F00
CLIP
$6.70¢3 350
1
