187A RADIATOR HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

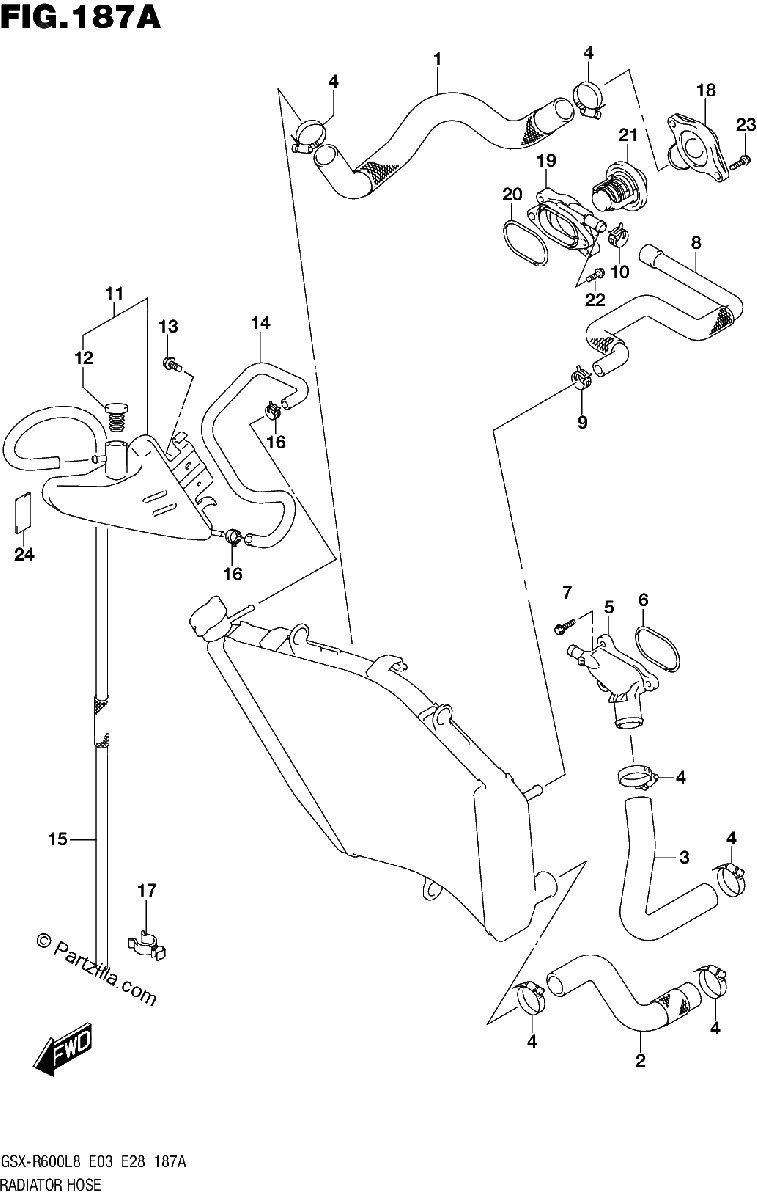

Diagrama de 187A RADIATOR HOSE

Repuestos

#1
17851-14J00
HOSE, RADIATOR INLET
$75.10¢37 550
1
#2
17852-14J00
HOSE, RADIATOR OUTLET
$62.91¢31 456
1
#3
17853-14J00
HOSE, CYLINDER INLET
$37.83¢18 913
1
#4
09402-35501
CLAMP
$11.25¢5 625
1
#5
17861-01H00
CONNECTOR, CYLINDER INLET
$91.41¢45 706
1
#6
17863-01H00
O RING
$8.40¢4 200
1
#7
01547-0620A
BOLT
$2.63¢1 313
1
#8
17854-14J00
HOSE, WATER BYPASS
$52.04¢26 019
1
#9
09401-12414
CLAMP
$3.89¢1 944
1
#10
09401-14403
CLIP
$6.25¢3 125
1
#11
17910-14J00
TANK ASSY, RESERVOIR
$101.35¢50 675
1
#12
17931-02FA0
.CAP
$6.64¢3 319
1
#13
09111-06085
BOLT (6X12)
$5.42¢2 713
1
#14
17981-18G00
HOSE, RESERVOIR TANK INLET
$17.44¢8 719
1
#15
17982-37H00
HOSE, RESERVOIR TANK OVER FLO
$23.98¢11 988
1
#16
09401-08411
CLIP
$2.30¢1 150
1
#17
09404-06429
CLAMP (L:45)
$2.33¢1 163
1
#18
17661-37H00
COVER, THERMOSTAT
$49.06¢24 531
1
#19
17662-01H00
CONNECTOR
$126.40¢63 200
1
#20
17663-01H00
O RING
$8.40¢4 200
1
#21
17670-76G00
THERMOSTAT, WATER
$43.88¢21 938
1
#22
01547-0620A
BOLT
$2.63¢1 313
1
#23
01550-0625A
SCREW
$2.56¢1 281
1
#24
46312-31D11
CUSHION, RSVR TANK | CUT AS REQUIIRED
$6.78¢3 388
1
