480A AIR INTAKE PIPE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

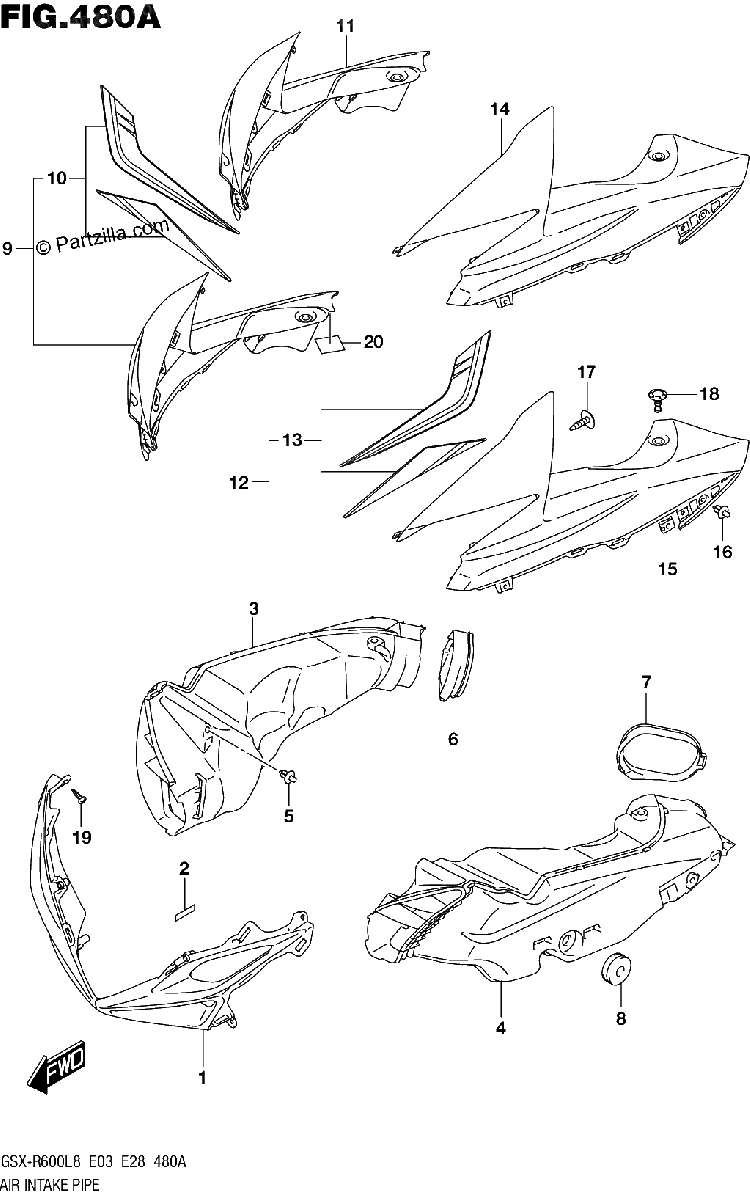

Diagrama de 480A AIR INTAKE PIPE

Repuestos

#2
94443-06G00
TAPE, REAR FENDER
$3.88¢1 938
1
#3
94420-14J00
PIPE, INTAKE RH
$129.15¢64 575
1
#4
94430-14J00
PIPE, INTAKE LH
$100.68¢50 338
1
#5
09409-06314-5PK
CLIP (BLACK)
$3.60¢1 800
1
#6
94423-14J00
MOLDING, RH
$17.10¢8 550
1
#7
94433-14J00
MOLDING, LH
$17.10¢8 550
1
#8
09320-08028
CUSHION
$3.65¢1 825
1
#9
94670-14J20-YSF
COVER, INTAKE SIDE RH (BLUE)
$232.31¢116 156
1
#10
68270-14J10-BDH
.TAPE, INTAKE COVER RH (BLUE/WHITE)
$47.60¢23 800
1
#1-1
94671-14J10-YKV
COVER, INTAKE FRONT (BLACK) | FOR YSF
$301.98¢150 988
1
#1-2
94671-14J10-YVB
COVER, INTAKE FRONT (BLACK) | FOR KGL
$213.82¢106 913
1
#12
94680-14J20-YSF
COVER, INTAKE SIDE LH (BLUE)
$206.77¢103 387
1
#13
68280-14J10-BDH
.TAPE, INTAKE COVER LH (BLUE/WHITE)
$47.60¢23 800
1
#15
09148-05052
NUT
$3.96¢1 981
1
#16
09409-06314-5PK
CLIP (BLACK)
$3.60¢1 800
1
#17
09132-05050
SCREW (5X12)
$2.40¢1 200
1
#18
94479-35F00
CLIP
$6.70¢3 350
1
#19
03541-0512A
SCREW
$1.79¢894
1
#20
33652-13E00
PROTECTOR, FRONT
$3.65¢1 825
1
#21
SPECIAL-NOTE
COLOR :
No Disponible
1
#11-1
94672-14J00-QEB
COVER, INTAKE SIDE RH (GRAY)
$166.79¢83 394
1
#11-2
94672-14J00-YMD
COVER, INTAKE SIDE RH (SILVER
$196.66¢98 331
1
#14-1
94682-14J00-QEB
COVER, INTAKE SIDE LH (GRAY)
$166.79¢83 394
1
#14-2
94682-14J00-YMD
COVER, INTAKE SIDE LH (SILVER
$179.84¢89 919
1
