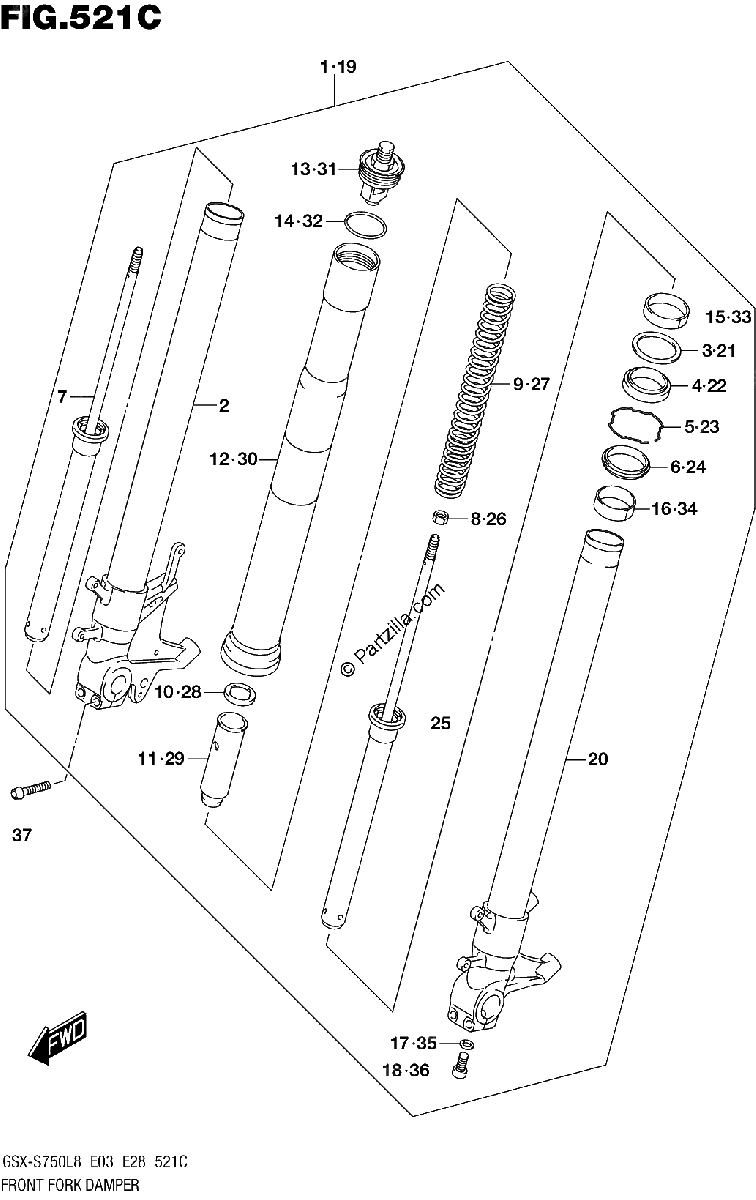

521C FRONT FORK DAMPER GSX S750ZL8 E03
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY, FRONT FORK RH
$1601.09¢800 544
#2
TUBE, INNER RH
$850.17¢425 086
#3
.WASHER
$6.39¢3 197
#4
.OIL SEAL
$22.70¢11 350
#5
.RING, OIL SEAL STOPPER
$5.69¢2 846
#6
.SEAL, DUST
$25.31¢12 656
#7
CYLINDER RH
$302.66¢151 329
#8
.NUT, ROD
$3.77¢1 886
#9
SPRING
No Disponible
#10
.GUIDE, SPRING
$12.94¢6 469
#11
.SPACER, SPRING
$32.77¢16 388
#12
TUBE, OUTER
$656.33¢328 164
#13
CAP
No Disponible
#14
.O RING
$8.53¢4 267
#15
SLIDE METAL
$21.59¢10 793
#16
PISTON
$34.09¢17 043
#17
.GASKET
$2.46¢1 231
#18
.BOLT
$6.70¢3 352
#19
DAMPER ASSY, FRONT FORK LH
$1482.49¢741 244
#20
TUBE, INNER LH
$850.17¢425 086
#21
.WASHER
$6.39¢3 197
#22
.OIL SEAL
$22.70¢11 350
#23
.RING, OIL SEAL STOPPER
$5.69¢2 846
#24
.SEAL, DUST
$25.31¢12 656
#25
CYLINDER LH
$249.07¢124 534
#26
.NUT, ROD
$3.77¢1 886
#27
SPRING
No Disponible
#28
.GUIDE, SPRING
$12.94¢6 469
#29
.SPACER, SPRING
$32.77¢16 388
#30
TUBE, OUTER
$656.33¢328 164
#31
CAP
No Disponible
#32
.O RING
$8.53¢4 267
#33
SLIDE METAL
$21.59¢10 793
#34
PISTON
$34.09¢17 043
#35
.GASKET
$2.46¢1 231
#36
.BOLT
$6.70¢3 352
#37
BOLT
$6.12¢3 059
