FRONT FORK DAMPER GSX S750AL8 E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

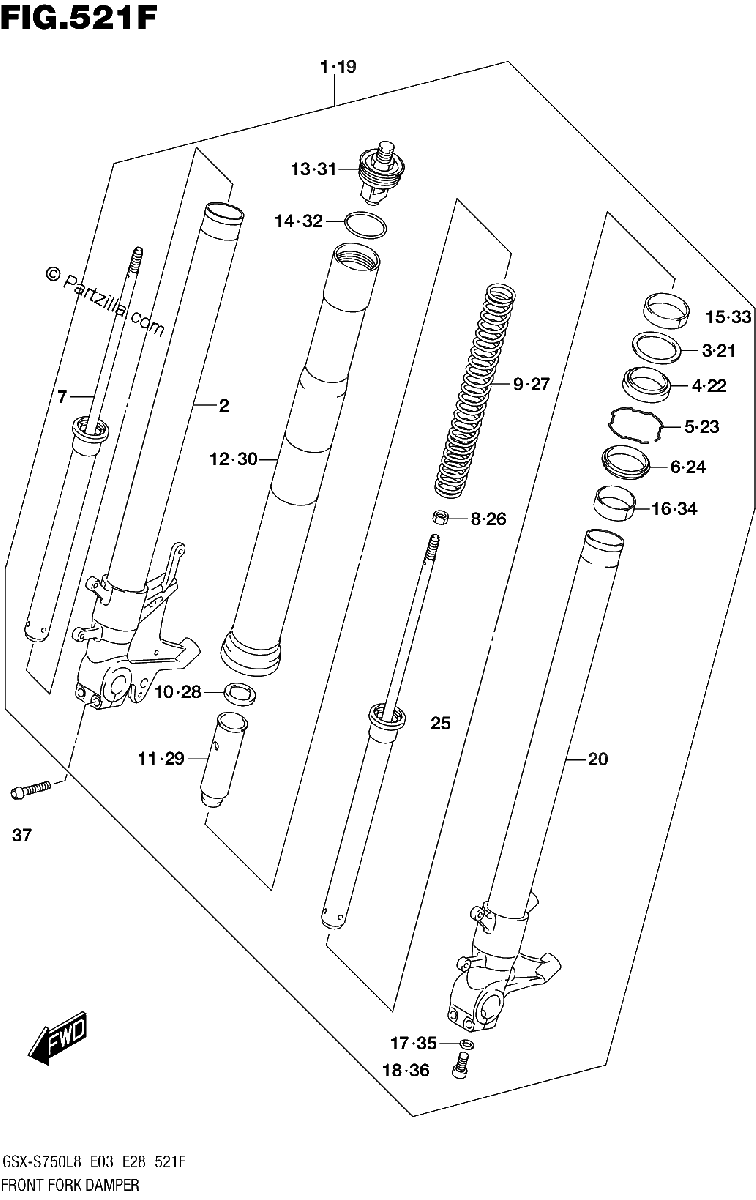

Diagrama de FRONT FORK DAMPER GSX S750AL8 E33

Repuestos

#1
51103-13K00
DAMPER ASSY, FRONT FORK RH
No Disponible
1
#2
51110-13K00
TUBE, INNER RH
$850.17¢425 086
1
#3
51158-05A00
.WASHER
$6.39¢3 197
1
#4
51153-10G50
.OIL SEAL
$22.70¢11 350
1
#5
51156-49440
.RING, OIL SEAL STOPPER
$5.69¢2 846
1
#6
51173-14F00
.SEAL, DUST
$25.31¢12 656
1
#7
51146-13K00
CYLINDER RH
$302.66¢151 329
1
#8
51352-13A60
.NUT, ROD
$3.77¢1 886
1
#9
51171-13K00
SPRING
No Disponible
1
#10
51158-40F30
.GUIDE, SPRING
$12.94¢6 469
1
#11
51176-40F30
.SPACER, SPRING
$32.77¢16 388
1
#12
51131-13K00
.TUBE, OUTER
$645.23¢322 615
1
#13
51351-13K00
CAP
No Disponible
1
#14
51117-39G20
.O RING
$8.53¢4 267
1
#15
51152-13K00
SLIDE METAL
$21.59¢10 793
1
#16
51121-26E10
PISTON
$34.09¢17 043
1
#17
51148-41310
.GASKET
$2.46¢1 231
1
#18
51147-05H00
.BOLT
$6.70¢3 352
1
#19
51104-13K00
DAMPER ASSY, FRONT FORK LH
$1641.72¢820 858
1
#20
51120-13K00
TUBE, INNER LH
$850.17¢425 086
1
#21
51158-05A00
.WASHER
$6.39¢3 197
1
#22
51153-10G50
.OIL SEAL
$22.70¢11 350
1
#23
51156-49440
.RING, OIL SEAL STOPPER
$5.69¢2 846
1
#24
51173-14F00
.SEAL, DUST
$25.31¢12 656
1
#25
51156-13K00
CYLINDER LH
$249.07¢124 534
1
#26
51352-13A60
.NUT, ROD
$3.77¢1 886
1
#27
51171-13K00
SPRING
No Disponible
1
#28
51158-40F30
.GUIDE, SPRING
$12.94¢6 469
1
#29
51176-40F30
.SPACER, SPRING
$32.77¢16 388
1
#30
51131-13K00
.TUBE, OUTER
$645.23¢322 615
1
#31
51351-13K00
CAP
No Disponible
1
#32
51117-39G20
.O RING
$8.53¢4 267
1
#33
51152-13K00
SLIDE METAL
$21.59¢10 793
1
#34
51121-26E10
PISTON
$34.09¢17 043
1
#35
51148-41310
.GASKET
$2.46¢1 231
1
#36
51147-05H00
.BOLT
$6.70¢3 352
1
#37
51166-24F60
BOLT
$6.12¢3 059
1
