FRAME COVER FOR YVZ

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

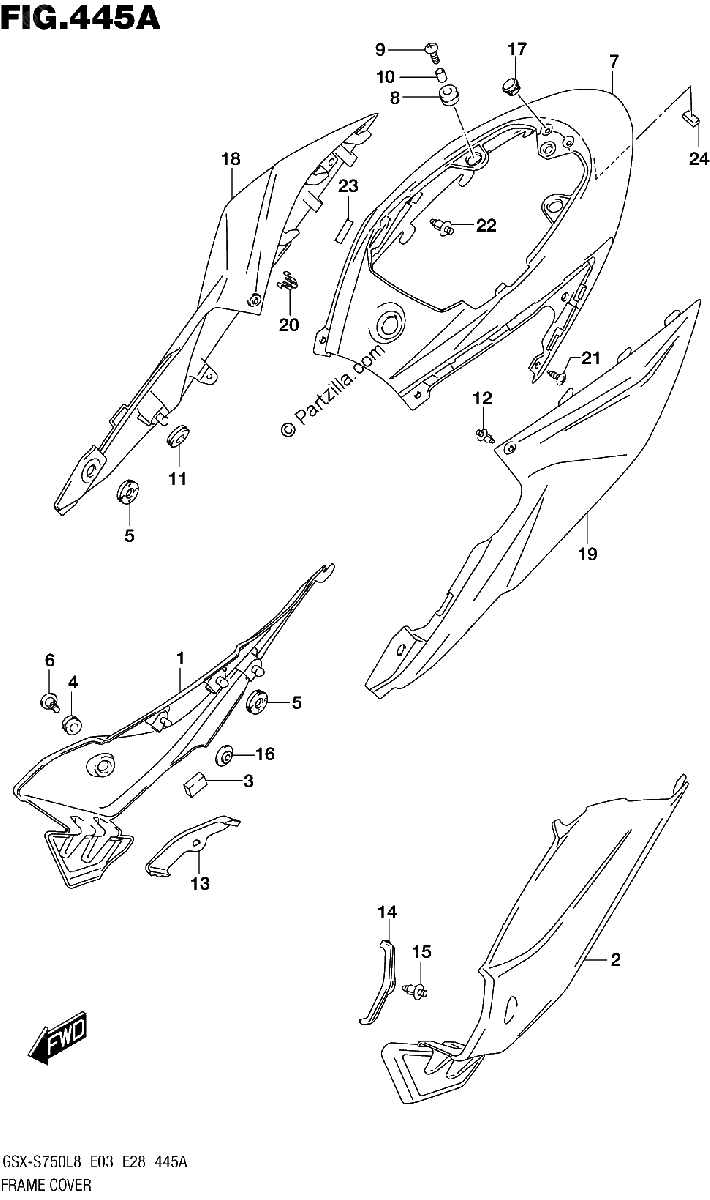

Diagrama de FRAME COVER FOR YVZ

Repuestos

#1
47511-13K00
COVER, FRAME FRONT RH
$180.86¢90 430
1
#2
47611-13K00
COVER, FRAME FRONT LH
$109.23¢54 613
1
#3
94422-06G00
CUSHION
$7.22¢3 611
1
#4
09320-09016
CUSHION
$2.36¢1 179
1
#5
09320-08028
CUSHION
$3.36¢1 679
1
#6
47118-08J00
SCREW, FRAME COVER FRONT
$5.40¢2 702
1
#7
47311-13K00-YKV
COVER, FRAME CENTER (BLACK)
$272.58¢136 292
1
#8
47312-37H00
CUSHION
$3.36¢1 679
1
#9
09136-06105
SCREW (6X20)
$2.38¢1 190
1
#10
09180-06283
SPACER (6.5X10X7)
$2.27¢1 133
1
#11
09320-08018
CUSHION | LH
$3.36¢1 679
1
#12
09409-06314-5PK
CLIP (BLACK)
$3.31¢1 656
1
#13
47711-08J00
COVER, FRAME TOP RH
$9.14¢4 571
1
#14
47811-08J00
COVER, FRAME TOP LH
$9.14¢4 571
1
#15
09409-07333
CLIP
$2.75¢1 374
1
#16
09320-06026
CUSHION
$4.94¢2 472
1
#17
45148-27J00
CUSHION, SEAT MOUNT
$21.39¢10 695
1
#18
47110-13K00-YVZ
COVER, FRAME RH (RED)
$162.95¢81 477
1
#19
47210-13K00-YVZ
COVER, FRAME LH (RED)
$162.95¢81 477
1
#20
09409-08326
CLIP
$2.93¢1 466
1
#21
03541-0512B
SCREW
$2.12¢1 058
1
#22
09409-07333
CLIP
$2.75¢1 374
1
#23
44894-24A00
.CUSHION
$2.13¢1 064
1
#24
63211-26G00
CUSHION, LIC
$12.11¢6 055
1
