107A CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

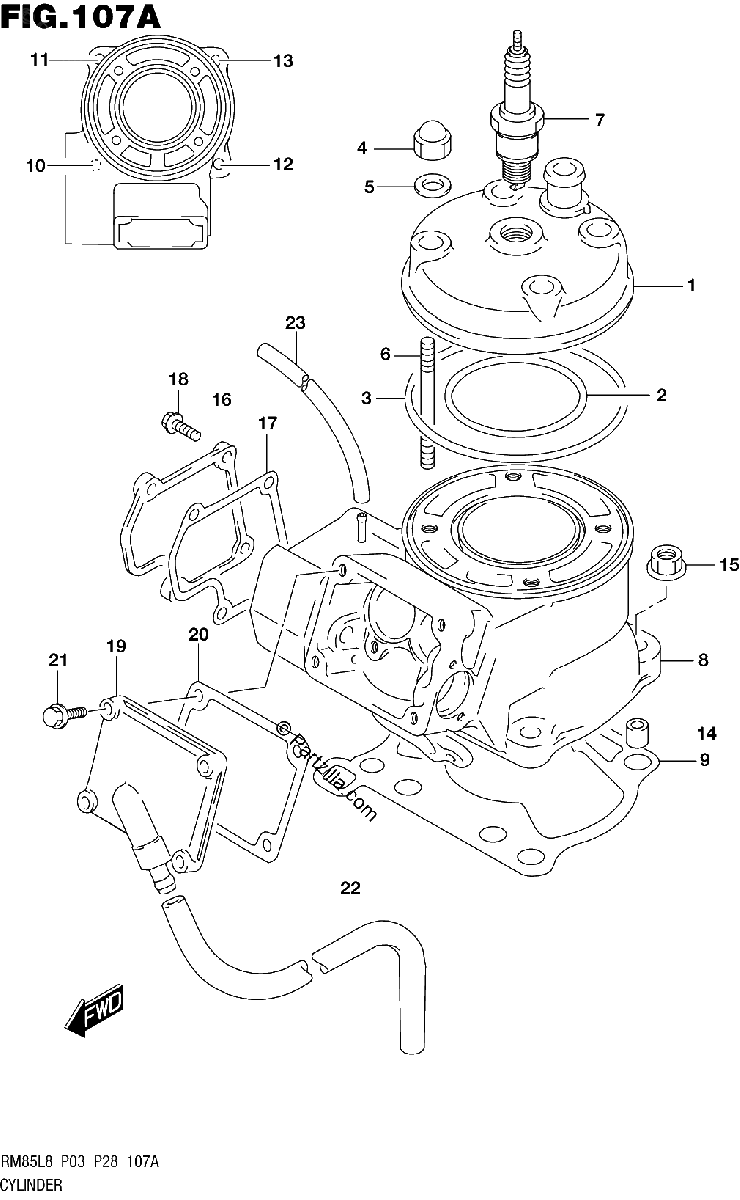

Diagrama de 107A CYLINDER

Repuestos

#1
11111-03B10
HEAD, CYLINDER
$166.95¢83 475
1
#2
11147-03B00
O RING, CYLINDER HEAD NO.1
$12.16¢6 081
1
#3
11148-03B00
O RING, CYLINDER HEAD NO.2
$6.39¢3 194
1
#4
09159-08049
NUT
$5.54¢2 769
1
#5
09168-08021
GASKET (8.5X17X2.3)
$3.36¢1 681
1
#6
09108-08227
STUD BOLT
$4.01¢2 006
1
#7
09482-00360
SPARK PLUG (BR10ES) | NGK
$3.71¢1 856
1
#8
11200-03830
CYLINDER SET
$1027.31¢513 656
1
#9
11241-03B01
GASKET, CYLINDER
$9.94¢4 969
1
#10
01421-0820A
STUD BOLT
$2.50¢1 250
1
#11
01421-0825A
STUD BOLT
$2.63¢1 313
1
#12
09108-08220
STUD BOLT
$3.74¢1 869
1
#13
01421-0835A
STUD BOLT
$3.01¢1 506
1
#14
09206-11004
PIN
$6.30¢3 150
1
#15
08316-1008A
NUT
$3.21¢1 606
1
#16
11231-02B40
COVER, CYLINDER NO.1
$45.56¢22 781
1
#17
11233-02B42
GASKET, CYLINDER COVER NO.1
$7.63¢3 813
1
#18
09103-05016
BOLT (5X16)
$2.49¢1 244
1
#19
11248-12C01
COVER, CYLINDER NO.2
$45.81¢22 906
1
#20
11238-01B30-H17
GASKET, CYLINDER COVER NO.2
$4.80¢2 400
1
#21
09103-05016
BOLT (5X16)
$2.49¢1 244
1
#22
09359-50823-600
HOSE (5X8.2X600) | L:600-150
$9.38¢4 688
1
#23
09352-50823-600
HOSE (5X8.2X600)
$11.83¢5 913
1
