216A SECONDARY DRIVE GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

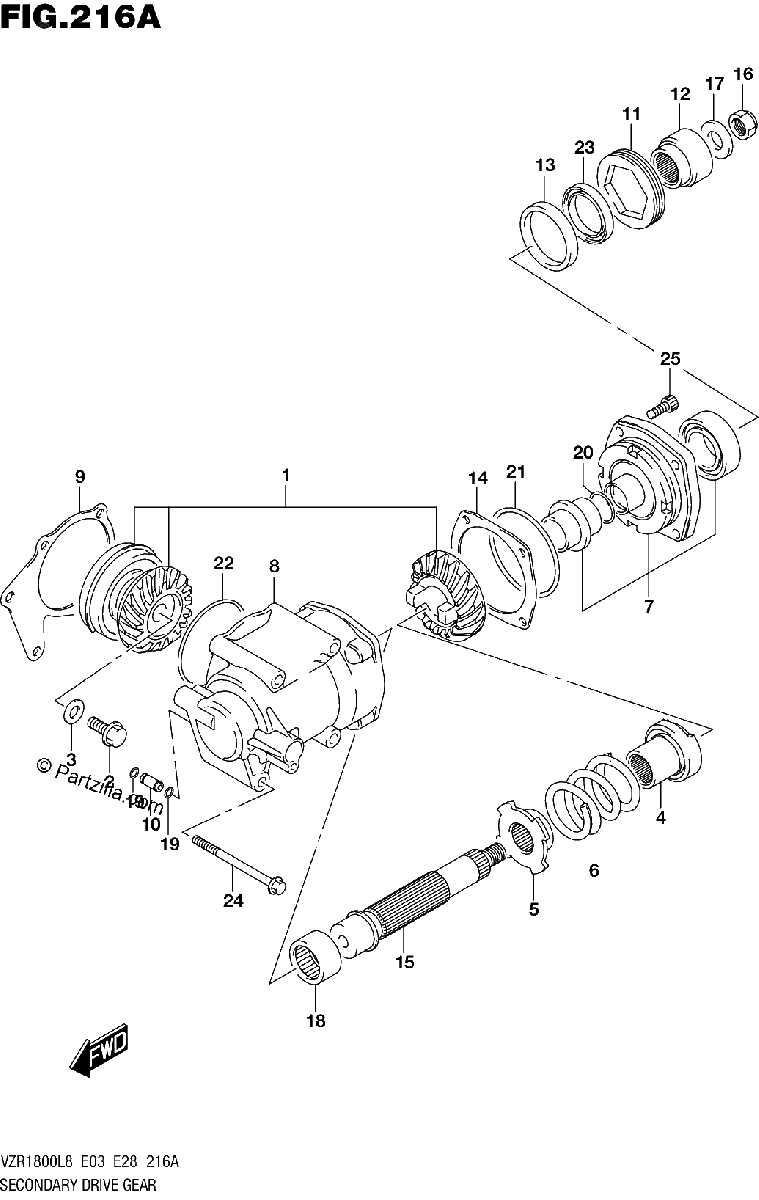

Diagrama de 216A SECONDARY DRIVE GEAR

Repuestos

#1
24910-48830
GEAR SET, SECONDARY
$1270.16¢635 081
1
#2
09103-12084
BOLT (12X24)
$11.13¢5 563
1
#3
09160-12045
WASHER (12X35X2)
$4.90¢2 450
1
#4
24923-48G10
DOG, OUTPUT CAM
$173.81¢86 906
1
#5
24924-48G10
STOPPER, CAM SPRING
No Disponible
1
#6
24925-48G00
SPRING, SECONDARY DAMPER
$68.72¢34 363
1
#7
24926-48830
STOPPER SECONDARY SET, DRIVEN
$439.44¢219 719
1
#8
24931-48G30
CASE, SECONDARY GEAR
$511.13¢255 563
1
#9
24935-48810
SHIM SET, DRIVE | T:0.40/0.45/0.50/0.5
$133.98¢66 988
1
#10
24940-26D00
PIPE, SECONDARY GEAR CASE OIL
No Disponible
1
#11
24942-26D00
STOPPER, SECONDARY DRIVEN
$97.21¢48 606
1
#12
24943-48G01
COUPLING, SECONDARY DRIVEN
$143.71¢71 856
1
#13
24944-48G00
HOUSING, OIL SEAL
$70.66¢35 331
1
#14
24945-48810
SHIM SET, SECONDARY DRIVEN | T:0.30/0.35/0.40/0.5
$135.60¢67 800
1
#15
24961-48G00
SHAFT, SECONDARY DRIVEN BEVEL
$236.48¢118 238
1
#16
09159-16003
.NUT
$5.27¢2 637
1
#17
09160-16040
WASHER (16.5X36X4)
$15.40¢7 700
1
#18
09263-32012
BEARING (32X48X22)
$147.85¢73 925
1
#19
09280-06008
O RING (D:1.7,ID:6)
$2.69¢1 344
1
#20
09280-24010
O RING (D:2.4,ID:23.7)
$6.64¢3 319
1
#21
09280-78003
O RING (D:3.7,ID:76.5)
$9.90¢4 950
1
#22
09280-92003
O RING (D:2.4,ID:90.8)
$26.48¢13 238
1
#23
09283-38011
OIL SEAL (38X54X6)
$23.52¢11 763
1
#24
01550-0895A
BOLT
$6.04¢3 019
1
#25
09106-10087
BOLT (10X30)
$8.15¢4 075
1
