104B CYLINDER HEAD FRONT VZR1800BZL8 E03

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

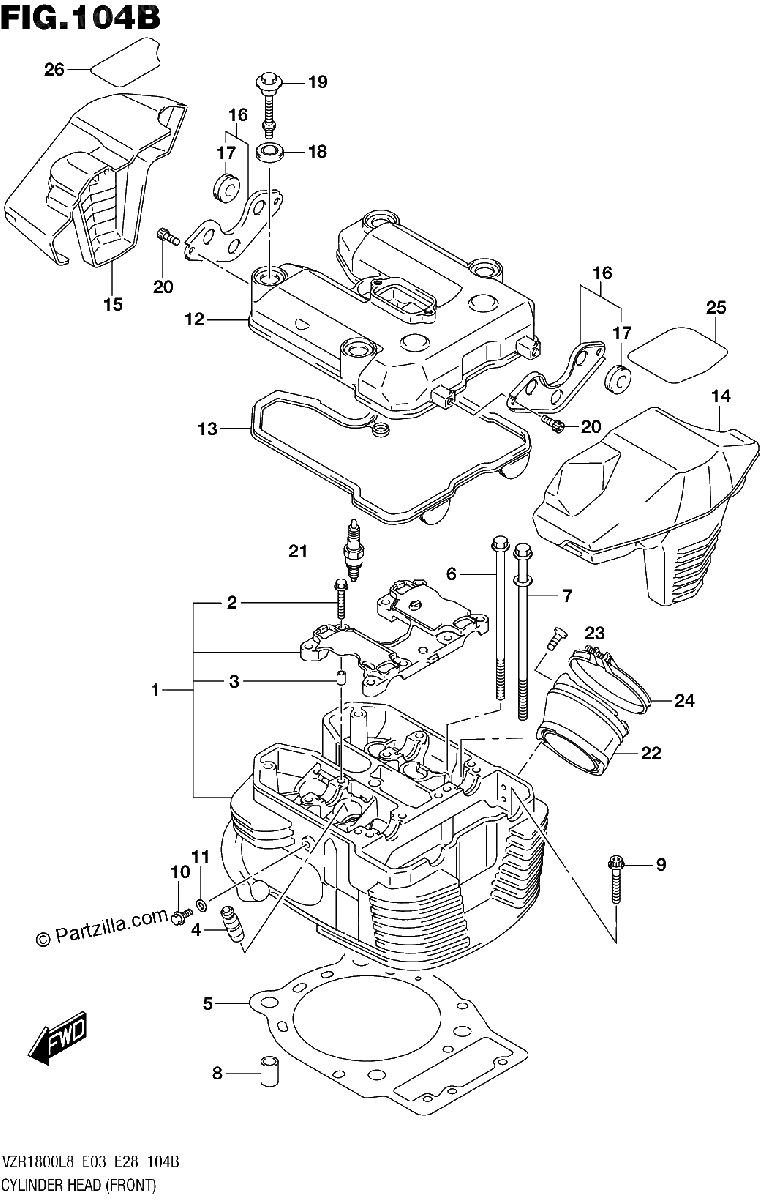

Diagrama de 104B CYLINDER HEAD FRONT VZR1800BZL8 E03

Repuestos

#1
11101-48G10
HEAD ASSY, CYLINDER FRONT
$2142.83¢1 071 415
1
#2
09103-06026
.BOLT (6X39)
$2.15¢1 075
1
#3
09206-08001
.PIN (8X11)
$2.12¢1 058
1
#4
11115-65J00-001
GUIDE, VALVE (OS 0.3) | OPT
$39.70¢19 849
1
#5
11141-48G00
.GASKET, CYLINDER HEAD FRONT | NOT ILLUSTRATED
$52.15¢26 076
1
#6
09103-08415
BOLT (8X180)
$14.01¢7 003
1
#7
09103-10396
BOLT (10X19)
$31.74¢15 870
1
#8
04211-13189
PIN
$2.62¢1 311
1
#9
07120-0670A
BOLT
No Disponible
1
#10
01550-0612A
BOLT
$2.36¢1 179
1
#11
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#12
11170-48G00
COVER, CYLINDER HEAD
No Disponible
1
#13
11173-48G00
GASKET
$38.41¢19 205
1
#14
11174-48G20
CAP, CYL HEAD COVER NO.1
$136.01¢68 005
1
#15
11175-48G20
CAP, CYL HEAD COVER NO.2
$136.01¢68 005
1
#16
11180-48G00
BRACKET HEAD COVER CAP
$12.05¢6 026
1
#17
09320-08013
.CUSHION
$2.29¢1 144
1
#18
11192-13E00
CUSHION HEAD COVER BOLT
$4.76¢2 380
1
#19
09111-06091
BOLT (6X52)
$27.58¢13 789
1
#20
07130-0612A
BOLT
$2.99¢1 495
1
#22
13101-48G00
PIPE ASSY, INTAKE
$121.59¢60 795
1
#23
09120-06008
BOLT (6X20.5)
$3.45¢1 725
1
#24
13170-22H00
CLAMP, INTAKE PIPE
No Disponible
1
#25
11178-48G00
PROTECTOR, HEAD COVER CAP NO.
No Disponible
1
#26
11178-48G10
PROTECTOR, HEAD COVER CAP NO.
No Disponible
1
#21-1
09482-00412
SPARK PLUG (CR8EK) | NGK
$11.65¢5 825
1
#21-2
09482-00413
SPARK PLUG (U24ETR) | DENSO
$15.90¢7 952
1
#21-3
09482-00410
SPARK PLUG (CR9EK) | OPT,NGK
$12.71¢6 354
1
#21-4
09482-00411
SPARK PLUG (U27ETR)
$6.68¢3 341
1
#21-5
09482-00414
SPARK PLUG (CR7EK) | OPT,NGK
$15.10¢7 550
1
#21-6
09482-00415
SPARK PLUG (U22ETR) | OPT,DENSO
No Disponible
1
