444D FRONT BRACKET DL1000AL8 E28 FOR YVB YWW

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

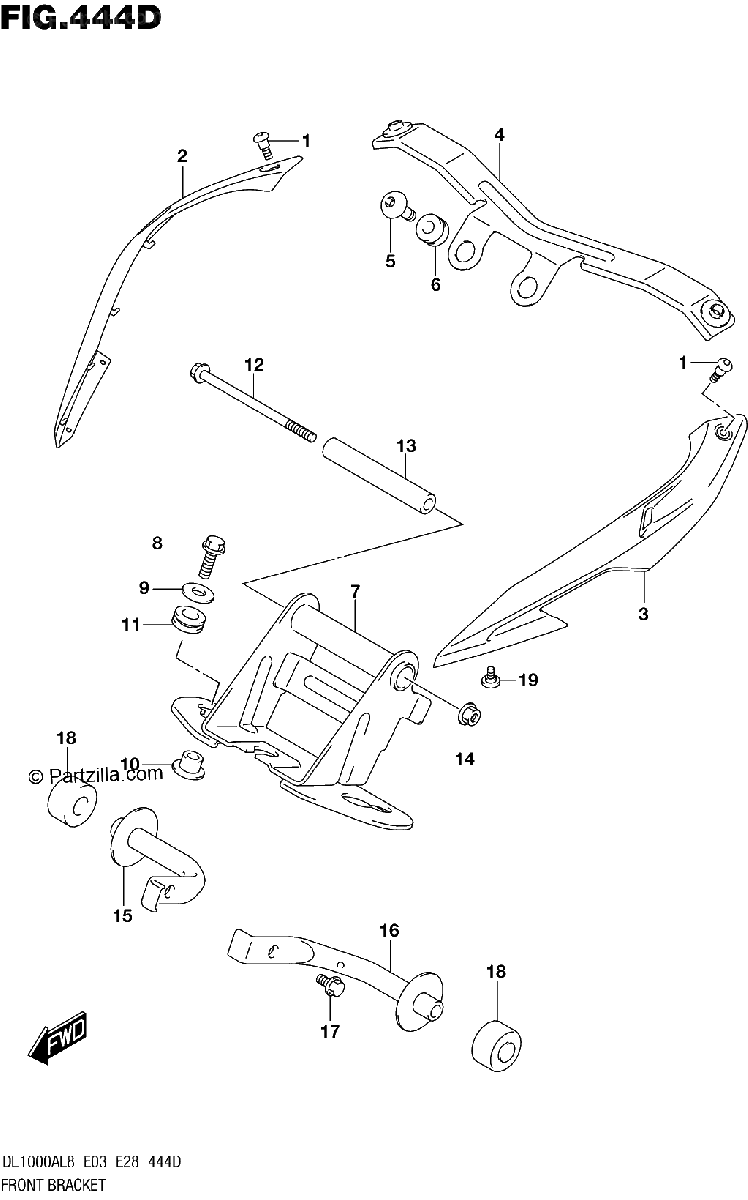

Diagrama de 444D FRONT BRACKET DL1000AL8 E28 FOR YVB YWW

Repuestos

#1
44193-31J00
SCREW
$7.19¢3 594
1
#4
44160-31J00
BRACKET, COVER
$28.88¢14 438
1
#5
09139-06190
BOLT (6X20)
$4.91¢2 456
1
#6
44164-31J00
CUSHION, COVER
No Disponible
1
#7
44520-31J01
BRACKET, FRONT
$77.38¢38 688
1
#8
09139-06192
SCREW (6X25)
$3.80¢1 900
1
#9
09160-06012
WASHER (6.5X22X1.6)
$2.10¢1 050
1
#10
44512-16G00
SPACER, FUEL TANK FRONT
$8.86¢4 431
1
#11
44511-16G00
CUSHION, FUEL TANK FRONT
$4.91¢2 456
1
#12
01550-0695A
BOLT
No Disponible
1
#13
44561-35F00
SPACER
$17.01¢8 506
1
#14
08319-3106B
NUT
$3.21¢1 606
1
#15
44560-31J00
BRACKET, SIDE LH
$22.40¢11 200
1
#16
44560-31J00
BRACKET, SIDE LH
$22.40¢11 200
1
#17
01550-0612A
BOLT
$2.56¢1 281
1
#18
44543-31J00
CUSHION, FRONT SIDE BRACKET
$6.75¢3 375
1
#19
09139-05091
SCREW
$2.63¢1 313
1
#2-1
94420-31J10-YVB
COVER, SIDE REAR RH (BLACK)
No Disponible
1
#2-2
94420-31J10-YWW
COVER, SIDE REAR RH (WHITE)
$195.25¢97 625
1
#3-1
94430-31J10-YVB
COVER, SIDE REAR LH (BLACK)
No Disponible
1
#3-2
94430-31J10-YWW
COVER, SIDE REAR LH (WHITE)
$206.84¢103 419
1
