423F FUEL TANK COVER DL1000AL8 E33 FOR YVB YWW

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

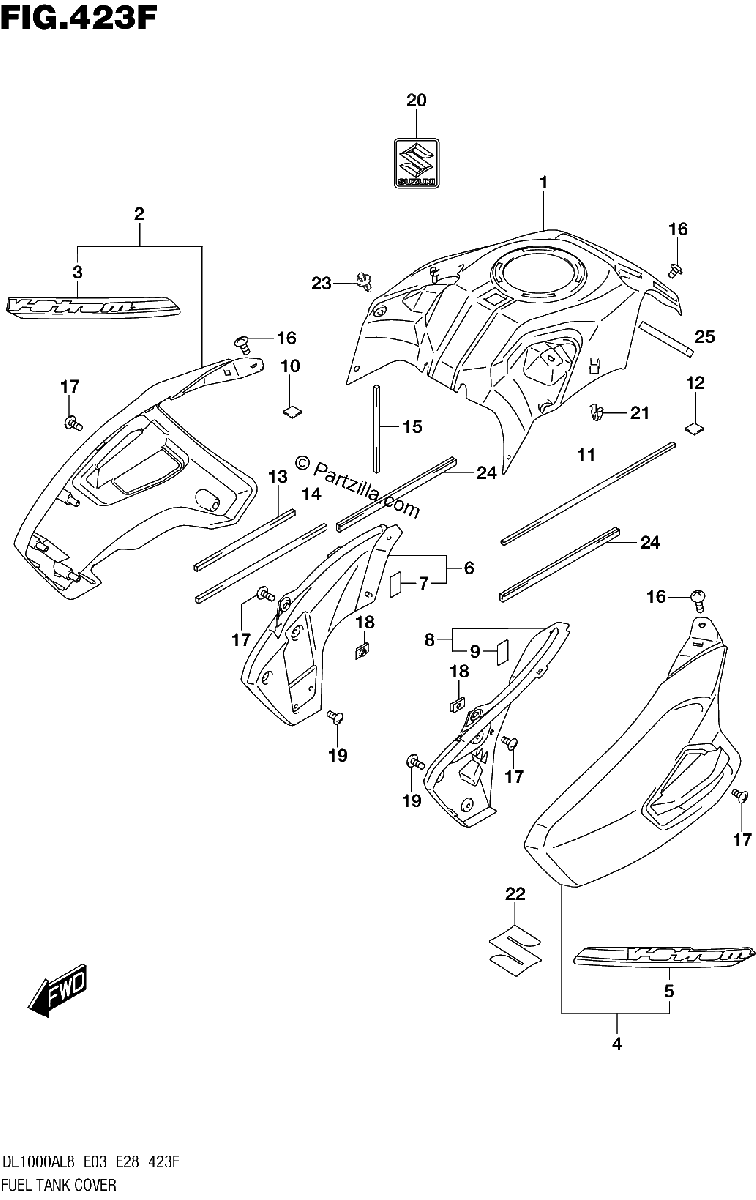

Diagrama de 423F FUEL TANK COVER DL1000AL8 E33 FOR YVB YWW

Repuestos

#1
44191-31J00-PGZ
COVER, FUEL TANK CENTER (GRAY)
$257.81¢128 903
1
#2
44170-31J20-PGZ
COVER, FUEL TANK SIDE RH (GRAY)
$238.48¢119 238
1
#3
68121-31J00-BG9
.EMBLEM, FUEL TANK COVER RH
$42.41¢21 206
1
#4
44180-31J20-PGZ
COVER, FUEL TANK SIDE LH (GRAY)
$257.17¢128 587
1
#5
68131-31J00-BG9
.EMBLEM, FUEL TANK COVER LH
$42.41¢21 206
1
#6
44270-31J00
COVER, FUEL TANK FRONT RH
$51.61¢25 806
1
#7
45517-31J00
.TAPE, FUEL TANK COVER
$10.44¢5 221
1
#8
44280-31J00
COVER, FUEL TANK FRONT LH
$51.61¢25 806
1
#9
45517-31J00
.TAPE, FUEL TANK COVER
$10.44¢5 221
1
#10
44612-13600
CUSHION
$5.78¢2 892
1
#11
44277-01H00
CUSHION, FUEL TANK COVER
$5.84¢2 921
1
#12
94642-10GA0
CUSHION, FUEL TANK COVER NO.2
$5.03¢2 513
1
#13
44176-31J00
CUSHION, TANK COVER SIDE NO.1
$3.42¢1 708
1
#14
44177-31J00
CUSHION, TANK COVER SIDE NO.2
$3.83¢1 915
1
#15
44178-31J00
CUSHION, TANK COVER SIDE NO.3
$3.56¢1 783
1
#16
09139-06172
SCREW (6X10)
$3.36¢1 679
1
#17
09139-05074
BOLT (5X13)
$3.09¢1 547
1
#18
09148-05052
NUT
$3.65¢1 823
1
#19
03241-0516B
SCREW
$2.01¢1 006
1
#20
68281-47HA0
EMBLEM, in.Sin.
$8.52¢4 261
1
#21
09409-08326
CLIP
$2.93¢1 466
1
#22
68111-47HA0
EMBLEM, in.Sin.
$44.37¢22 184
1
#23
09409-06314
CLIP
$3.31¢1 656
1
#24
44552-24B00
MOLDING, FUEL TANK
$15.89¢7 946
1
#25
45289-05H00
CUSHION
$3.31¢1 656
1
