FRONT DAMPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

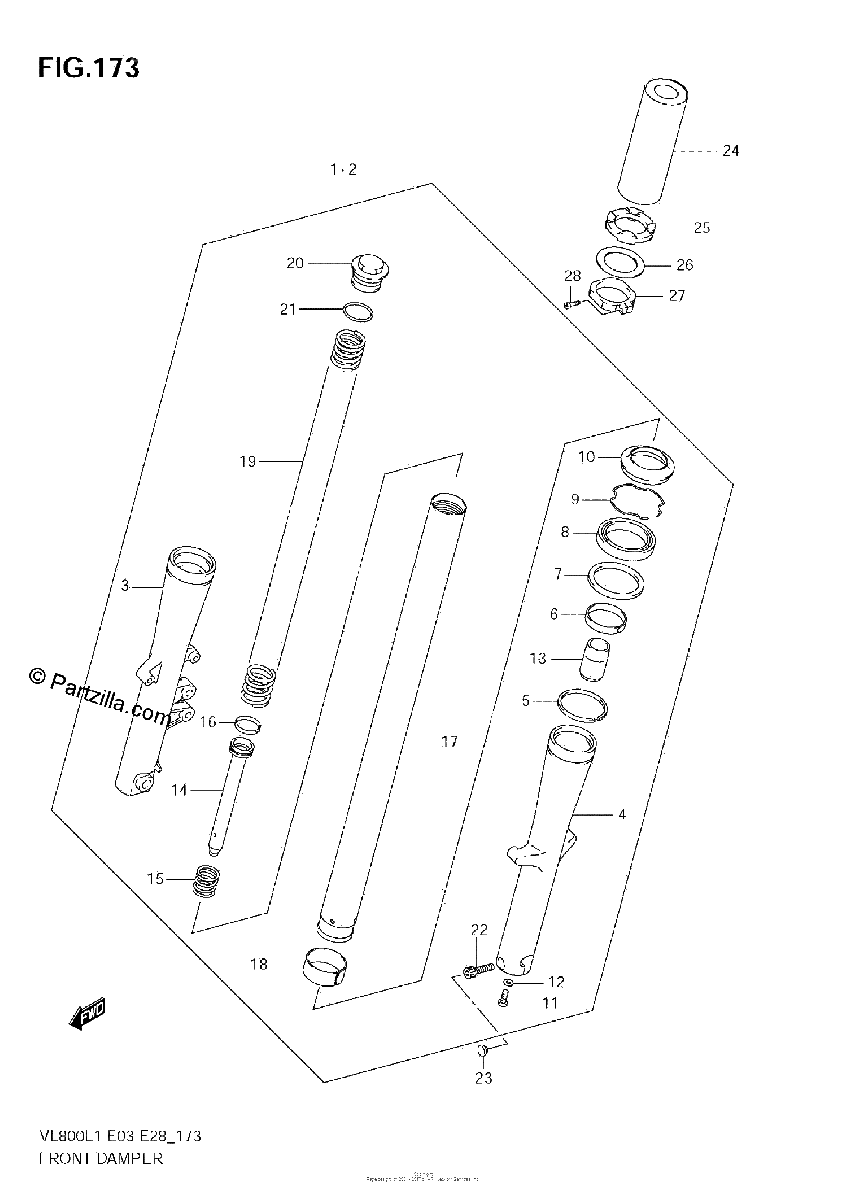

Diagrama de FRONT DAMPER

Repuestos

#1
51103-41F40
DAMPER ASSY, FRONT FORK RH
$1017.09¢508 547
1
#2
51104-41F40
DAMPER ASSY, FRONT FORK LH
$930.06¢465 031
1
#3
51131-41F20
.TUBE, OUTER RH
$718.43¢359 214
1
#4
51141-41F20
.TUBE, OUTER LH
$718.43¢359 214
1
#5
51469-41F21
.GUIDE, CASE
$21.99¢10 994
1
#6
51152-11D60
.BUSH, GUIDE
$15.64¢7 820
1
#7
51168-38B00
.SPACER, SEAL
$7.34¢3 669
1
#8
51153-08D00
.SEAL, OIL
$25.20¢12 598
1
#9
51556-38B00
.RING
$7.92¢3 962
1
#10
51571-47D50
.SEAL, DUST
$24.02¢12 012
1
#11
51147-06F10
.BOLT
$7.44¢3 720
1
#12
51148-36011
.GASKET
$3.91¢1 955
1
#13
51195-10F00
.PIECE, OIL LOCK
$37.52¢18 762
1
#14
51146-10F00
.SEAT, PIPE
No Disponible
1
#15
51177-10F00
.SPRING, REBOUND
No Disponible
1
#16
51196-47D00
.RING
$10.96¢5 480
1
#17
51110-41F40
.TUBE, INNER
$622.61¢311 305
1
#18
51121-42E00
.BUSH, SLIDE
$20.09¢10 045
1
#19
51171-41F40
.SPRING, FRONT
No Disponible
1
#20
51189-47D50
.BOLT, FORK
$64.88¢32 441
1
#21
51117-12C00
.O RING
$4.38¢2 191
1
#22
07130-10357
.BOLT
$6.24¢3 122
1
#23
09250-08014
CAP (OD:12)
$3.36¢1 679
1
#24
51464-41F21
CASE, UNDER
$207.51¢103 753
1
#25
51468-10F00
SEAT, RUBBER
$27.12¢13 558
1
#26
51467-10F70
WASHER
$15.70¢7 849
1
#27
51465-41F20
SPACER
$66.45¢33 224
1
#28
51466-10F00
BOLT
$9.37¢4 686
1
