CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

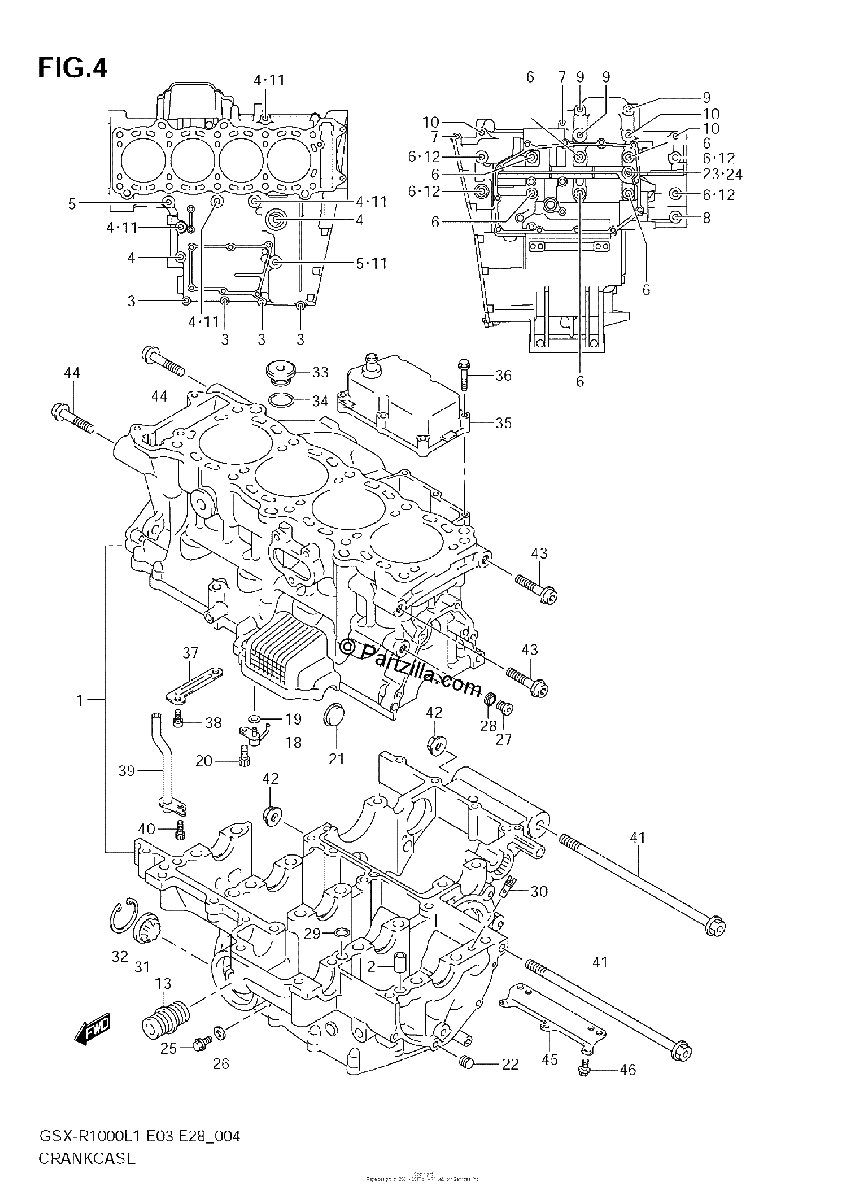

Diagrama de CRANKCASE

Repuestos

#1
11300-47880
CRANKCASE SET
No Disponible
1
#2
11319-33E50
.PIN, CRANKCASE
$6.00¢3 001
1
#3
01547-0635A
BOLT
$2.77¢1 386
1
#4
01550-0855A
.BOLT
$3.36¢1 679
1
#5
01550-0865A
.BOLT
$3.85¢1 926
1
#6
09103-09012
.BOLT (9X95)
$9.48¢4 738
1
#7
01547-0645A
BOLT
$2.91¢1 455
1
#8
01550-0835A
BOLT
$3.36¢1 679
1
#9
01550-0855A
.BOLT
$3.36¢1 679
1
#10
01550-0865A
.BOLT
$3.85¢1 926
1
#11
09168-08016
.GASKET (8.2X14X1)
$1.97¢983
1
#12
09168-10031
.GASKET (10.2X20X2.3)
$2.42¢1 208
1
#13
16591-06B01
.UNION, OIL FILTER STAND
$7.73¢3 864
1
#14
09280-00045
.O RING (D:3,ID:102)
$58.45¢29 227
1
#15
09139-06151
.BOLT (6X20) | DRIVE SHAFT BEARING
$4.98¢2 490
1
#16
12228-48B00-0E0
.BEARING, THRUST LH (GREEN)
$10.55¢5 273
1
#17
12228-48B00-0D0
.BEARING, THRUST LH (YELLOW)
$14.63¢7 314
1
#17
12228-48B00-0C0
BEARING, THRUST LH (RED)
$14.11¢7 055
1
#17
12228-48B00-0E0
.BEARING, THRUST LH (GREEN)
$10.55¢5 273
1
#17
12228-48B00-0B0
.BEARING, THRUST LH (BROWN)
$14.35¢7 176
1
#17
12228-48B00-0F0
BEARING, THRUST LH (BLUE)
$14.63¢7 314
1
#17
12228-48B00-0G0
BEARING, THRUST LH (ORANGE)
$14.63¢7 314
1
#17
12228-48B00-0H0
BEARING, THRUST LH (BLACK)
$10.89¢5 445
1
#18
11390-21H00
JET, PISTON COOLING
$53.65¢26 824
1
#19
09280-04004
O RING (D:1.2,ID:4)
$2.04¢1 018
1
#20
09106-06075
BOLT (6X12)
$2.99¢1 495
1
#21
09241-23005
PLUG
$15.03¢7 515
1
#22
09246-05006
PLUG
$5.14¢2 570
1
#23
09248-12004
PLUG (L:12)
$9.60¢4 801
1
#24
09168-12002
GASKET (12.1X16.2X3.7)
$1.90¢949
1
#25
01547-0612A
BOLT
$2.42¢1 208
1
#26
09168-06018
GASKET (6.2X13X1.2)
$2.04¢1 018
1
#27
09248-10010
PLUG (10X10)
$4.58¢2 289
1
#28
09168-10002
GASKET (10X14X3.6)
$2.28¢1 138
1
#29
09280-08012
O RING (D:1.9,ID:7.8)
$3.98¢1 989
1
#30
09493-28012
JET (140)
$20.38¢10 189
1
#31
11971-33210
.LENS, OIL LEVEL CHECK
$19.96¢9 982
1
#32
08331-4130A
CIRCLIP
$3.28¢1 639
1
#33
09259-26011
PLUG (26X9)
$11.94¢5 969
1
#34
09280-22008
O RING (D:3.1,ID:22.7)
$2.43¢1 213
1
#35
11380-47H00
COVER, BREATHER
$175.70¢87 848
1
#36
01547-0630A
BOLT
$2.77¢1 386
1
#37
11382-47H00
PLATE, BREATHER OIL RETURN
No Disponible
1
#38
09106-06075
BOLT (6X12)
$2.99¢1 495
1
#39
11383-47H00
PIPE, BREATHER OIL RETURN
No Disponible
1
#40
07130-0612A
BOLT
$2.99¢1 495
1
#41
09103-12110
BOLT (12X220)
$33.66¢16 830
1
#42
09159-12054
NUT
$10.56¢5 278
1
#43
09106-10089
BOLT (10X45)
$18.25¢9 125
1
#44
09106-10090
BOLT (10X55)
$22.57¢11 287
1
#45
11322-47H00
PLATE, LOWER
No Disponible
1
#46
09103-06188
BOLT (6X10)
$3.51¢1 754
1
