TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

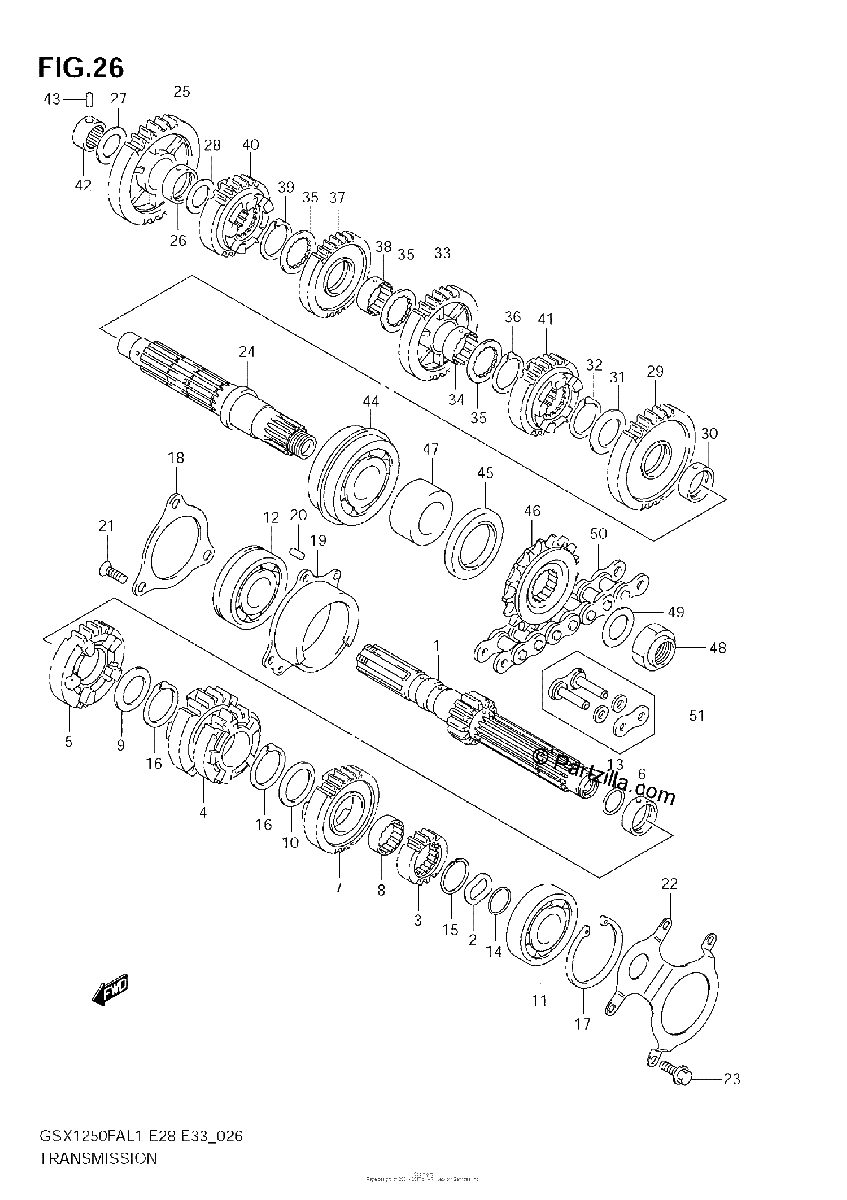

Diagrama de TRANSMISSION

Repuestos

#1
24120-18H10
SHAFT, COUNTER (NT:13)
No Disponible
1
#2
24127-18H00
WASHER, COUNTER
No Disponible
1
#3
24221-18H10
GEAR, 2ND DRIVE (NT:17)
No Disponible
1
#4
24231-18H00
GEAR, 3RD & 4TH DRIVE (NT:20/23)
No Disponible
1
#5
24251-18H00
GEAR, 5TH DRIVE (NT:25)
No Disponible
1
#6
24252-35F00
BUSH 5TH DRIVE GEAR
$33.35¢16 675
1
#7
24261-18H00
GEAR, 6TH DRIVE (NT:28)
No Disponible
1
#8
24262-35F10
BUSH, 6TH DRIVE GEAR
$38.75¢19 375
1
#9
09160-27008
WASHER (27X36X1)
$4.84¢2 419
1
#10
09167-27001
LOCK WASHER
$3.09¢1 544
1
#11
09262-20080
BEARING (20X52X15) | LH
$50.88¢25 438
1
#12
09262-25163
BEARING (25X62X17)
No Disponible
1
#13
09280-17004
O RING (D:1.9,ID:16.6)
$4.81¢2 406
1
#14
09280-20001
O RING (D:1,ID:19.5)
$1.93¢963
1
#15
09380-27004
CIRCLIP
$4.34¢2 169
1
#16
09380-27006
CIRCLIP
$3.55¢1 775
1
#17
08331-41529
CIRCLIP
$5.84¢2 919
1
#18
24751-18H00
RETAINER, COUNTER SHAFT RH
No Disponible
1
#19
24771-18H10
HOUSING, COUNTER SHAFT, RH
No Disponible
1
#20
04221-06129
PIN
$2.25¢1 125
1
#21
09139-06159
SCREW (6X20)
$5.38¢2 688
1
#22
24741-18H10
RETAINER, CLUTCH PUSH ROD
No Disponible
1
#23
09103-06236
BOLT (6X12)
$3.52¢1 763
1
#24
24131-18H20
SHAFT, DRIVE
No Disponible
1
#25
24311-18H00
GEAR, 1ST DRIVEN (NT:40)
No Disponible
1
#26
24312-02F00
BUSH, 1ST DRIVEN
$38.00¢19 000
1
#27
09181-20251
SHIM (20X34X1)
$3.61¢1 806
1
#28
09181-22223
SHIM (22X34X1)
$3.71¢1 856
1
#29
24321-18H00
GEAR, 2ND DRIVEN (NT:35)
No Disponible
1
#30
24322-02F01
BUSH, 2ND DRIVEN
$29.04¢14 519
1
#31
09160-27008
WASHER (27X36X1)
$4.84¢2 419
1
#32
09380-27006
CIRCLIP
$3.55¢1 775
1
#33
24331-18H00
GEAR, 3RD DRIVEN (NT:31)
No Disponible
1
#34
24332-46H00
BUSH, 4TH DRIVEN
$52.59¢26 294
1
#35
24333-02F00
WASHER, 3RD 4TH DRIVEN GEAR
$6.13¢3 063
1
#36
09380-27006
CIRCLIP
$3.55¢1 775
1
#37
24341-18H00
GEAR, 4TH DRIVEN (NT:30)
No Disponible
1
#38
24332-46H00
BUSH, 4TH DRIVEN
$52.59¢26 294
1
#39
09380-27006
CIRCLIP
$3.55¢1 775
1
#40
24351-18H00
GEAR, 5TH DRIVEN (NT:29)
No Disponible
1
#41
24361-18H00
GEAR, 6TH DRIVEN (NT:30)
No Disponible
1
#42
09263-20087
BEARING (20X34X13.5)
$65.85¢32 925
1
#43
09261-06003
PIN (6X10)
$1.94¢969
1
#44
09267-30011
BEARING (30X62X23.8)
$219.46¢109 731
1
#45
09283-42018
OIL SEAL (42X62X7)
$42.76¢21 381
1
#46
27510-21A40
SPROCKET, ENGINE (NT:18)
$208.44¢104 219
1
#47
27531-18H00
SPACER, SPROCKET
No Disponible
1
#48
09159-20004
NUT
$18.43¢9 213
1
#49
09160-25035
WASHER (25X40X1.4)
$4.94¢2 469
1
#50
27600-24F20-120
CHAIN ASSY (RK50GSVZ3M,120LE)
$466.13¢233 063
1
#51
27620-24F20
JOINT SET
$29.59¢14 794
1
