FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

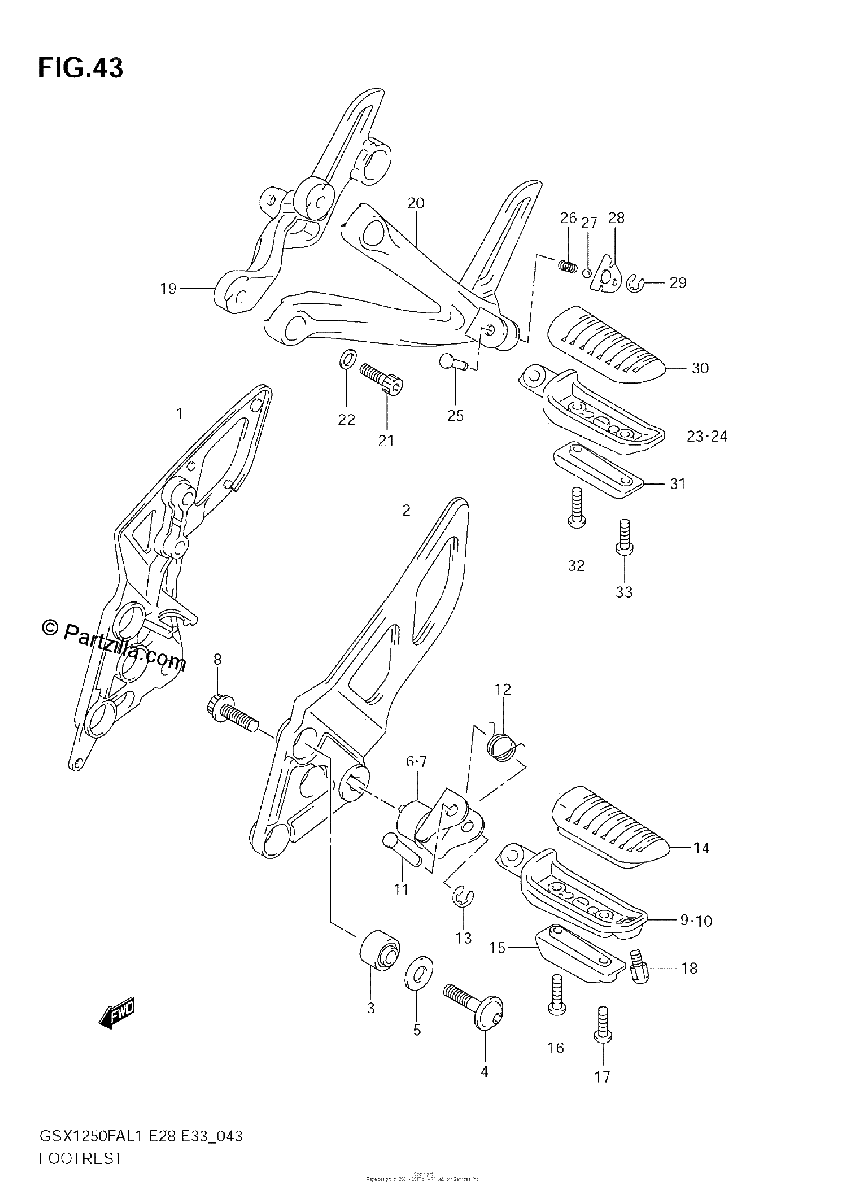

Diagrama de FOOTREST

Repuestos

#1
43511-38G00
BRACKET, FRONT FOOTREST RH
$227.84¢113 919
1
#2
43521-38G00
BRACKET, FRONT FOOTREST LH
$227.84¢113 919
1
#3
09319-08047
BUSH (8.2X22.3X16.5)
$15.43¢7 716
1
#4
09106-08147
BOLT (8X30)
$6.85¢3 427
1
#5
09161-12009
WASHER (12.6X24X1.9)
$5.21¢2 605
1
#6
43530-18H00
HOLDER, FOOTREST RH
No Disponible
1
#7
43540-18H00
HOLDER, FOOTREST LH
No Disponible
1
#8
09106-10064
BOLT (10X28)
$5.29¢2 645
1
#9
43511-44G00
BAR, RH
$74.35¢37 174
1
#10
43521-44G00
BAR, LH
$74.35¢37 174
1
#11
09208-08018
PIN
$3.32¢1 662
1
#12
09448-14047
SPRING
$4.60¢2 300
1
#13
08332-1106A
.E RING
$1.71¢857
1
#14
43550-44G00
.RUBBER, FOOTREST
$44.16¢22 080
1
#15
43536-44G00
BALANCER, FRONT FOOTREST
$64.05¢32 027
1
#16
02142-0530B
SCREW
$3.24¢1 621
1
#17
02142-0525B
SCREW
$3.28¢1 639
1
#18
43576-07D01
BOLT, BANK SENSOR
$9.71¢4 853
1
#19
43811-18H10
BRACKET, PILLION RH
$227.84¢113 919
1
#20
43821-18H00
BRACKET, PILLION LH
$223.62¢111 809
1
#21
09106-08172
BOLT (8X25)
$2.55¢1 277
1
#22
09164-08015
WASHER
$3.47¢1 737
1
#23
43611-44G00
.BAR, PILLION FOOTREST RH
$68.10¢34 052
1
#24
43621-44G00
.BAR, PILLION FOOTREST LH
$68.10¢34 052
1
#25
09208-08020
PIN
$4.00¢2 001
1
#26
09440-05003
SPRING
$1.77¢886
1
#27
06111-07004
.BALL
$1.46¢730
1
#28
43816-01H02
PLATE
$7.30¢3 651
1
#29
08332-1106A
.E RING
$1.71¢857
1
#30
43550-44G00
.RUBBER, FOOTREST
$44.16¢22 080
1
#31
43534-44G00
BALANCER
$53.21¢26 605
1
#32
02142-0525A
SCREW
$2.70¢1 351
1
#33
02142-0520A
.SCREW | INNER
$1.69¢845
1
