REAR CUSHION LEVER E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

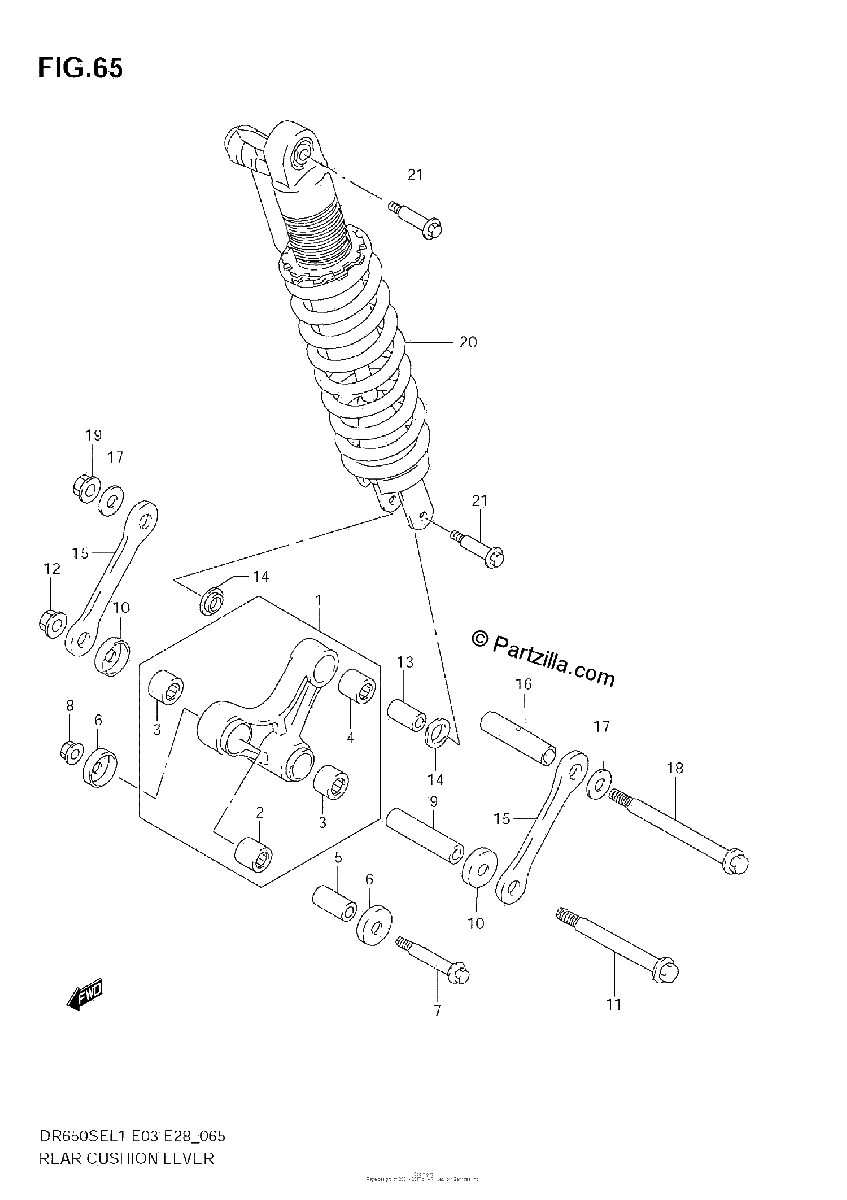

Diagrama de REAR CUSHION LEVER E33

Repuestos

#1
62600-32840
LEVER SET, REAR CUSHION
$391.03¢195 517
1
#2
09263-20073
.BEARING (20X27X30)
$19.56¢9 781
1
#3
09263-21012
.BEARING (21X27X20)
$27.22¢13 610
1
#4
09263-17027
.BEARING (17X24X20)
$21.37¢10 683
1
#5
62317-27C10
SPACER, LOWER
$18.91¢9 453
1
#6
62162-28E00
SEAL, CENTER
$12.06¢6 032
1
#7
62658-01C60
BOLT, REAR CUSHION LEVER FRON
$16.82¢8 412
1
#8
08319-3112A
NUT
$4.05¢2 024
1
#9
62626-13E00
SPACER, CENTER (15X21X74)
$32.58¢16 290
1
#10
62682-13E00
SEAL, CENTER DUST
$15.02¢7 510
1
#11
62621-27C20
BOLT, CENTER (14X109)
$60.09¢30 044
1
#12
08319-3114A
NUT
$10.60¢5 302
1
#13
62684-40A10
SPACER, REAR (10X17X30)
$13.71¢6 854
1
#14
62624-13E00
SEAL, REAR DUST
$11.60¢5 802
1
#15
62641-32E00
ROD, REAR CUSHION LEVER
$78.40¢39 198
1
#16
62626-14D00
SPACER, ROD (14X20X74)
$38.15¢19 073
1
#17
08211-14321
WASHER
$4.63¢2 317
1
#18
62621-17C00
BOLT, ROD (14X112)
$28.66¢14 329
1
#19
08319-3114A
NUT
$10.60¢5 302
1
#20
62100-32E10-28W
ABSORBER ASSY, REAR SHOCK (WHITE)
$1566.24¢783 121
1
#21
62648-14500
BOLT, UPPER
$4.91¢2 455
1
