REAR WHEEL DL650 L1 E3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

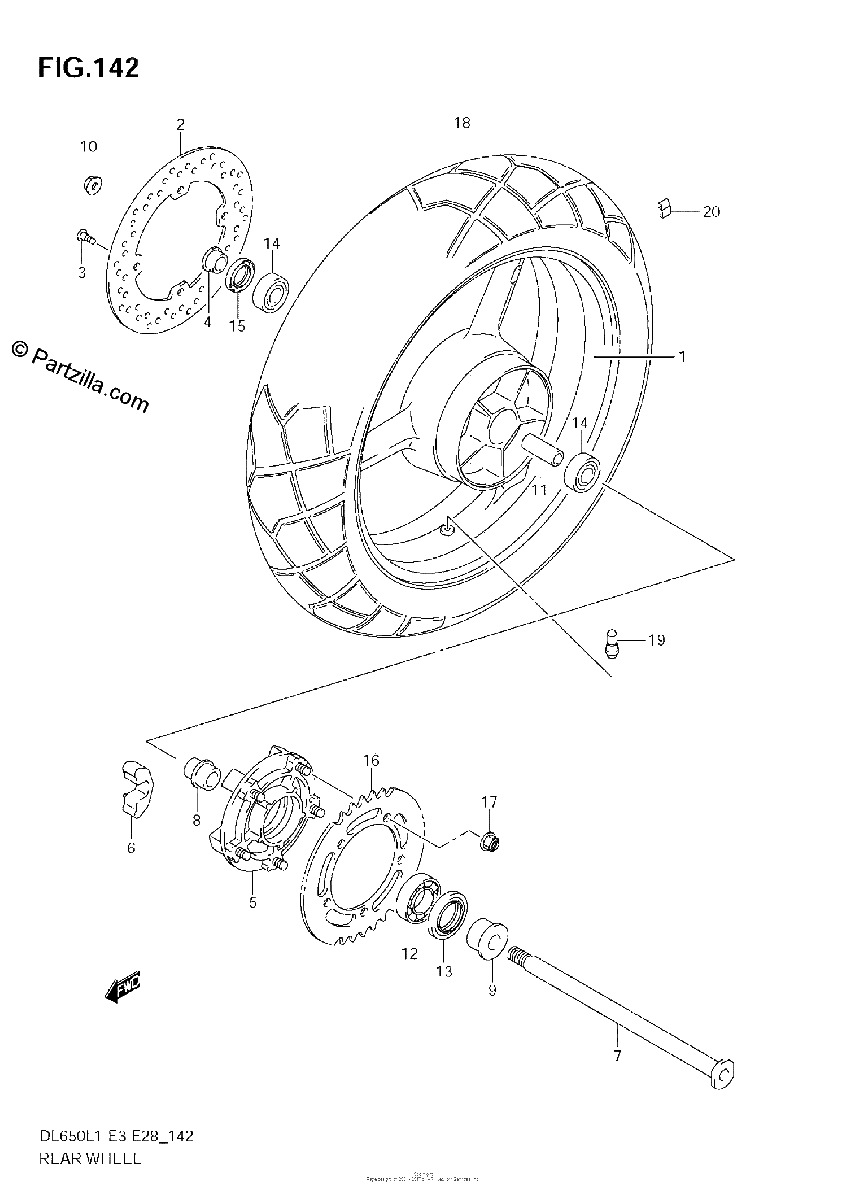

Diagrama de REAR WHEEL DL650 L1 E3

Repuestos

#1
64111-06G10-019
WHEEL, REAR (17M/CXMT4.00) (BLACK) | FOR YAY/YME
No Disponible
1
#1
64111-06G10-YD8
WHEEL, REAR (17M/CXMT4.00) (SILVER) | FOR YHG/YPA
No Disponible
1
#2
69211-06G00
DISC, REAR BRAKE
$414.91¢207 456
1
#3
09106-08160
BOLT (8X21)
$4.20¢2 100
1
#4
64741-10F00
SPACER, REAR AXLE RH
$25.45¢12 725
1
#5
64610-35F40
DRUM, REAR SPROCKET
$416.16¢208 081
1
#6
64651-35F10
ABSORBER, REAR HUB SHOCK
$14.10¢7 050
1
#7
64711-03F00
AXLE, REAR
$182.90¢91 450
1
#8
64733-06G00
RETAINER, REAR SPROCKET DRUM
$43.78¢21 888
1
#9
64751-27G00
SPACER, REAR AXLE LH
$41.44¢20 719
1
#10
08319-3118A
NUT
$32.15¢16 075
1
#11
09180-20112
SPACER (20.8X27.2X124)
$49.15¢24 575
1
#12
09262-32022
BEARING (32X65X17)
$46.31¢23 156
1
#13
09285-39001
OIL SEAL (39X65X7)
$12.48¢6 238
1
#14
08123-62047
BEARING
$20.75¢10 375
1
#15
09285-28001
OIL SEAL (28X47X7)
$14.68¢7 338
1
#16
64511-27G00
SPROCKET, REAR (NT:47-525)
$109.44¢54 719
1
#17
08319-3110A
NUT
$3.55¢1 775
1
#18
65110-06G11
TIRE, REAR (150/70R17M/C 69H) | BRIDGESTONE
$304.81¢152 406
1
#19
43130-24A00
VALVE ASSY, WHEEL RIM (TR412)
$10.55¢5 275
1
#20
43224-73H10
BALANCER, WHEEL NO.2 | 20G
$4.80¢2 400
1
#20
43222-73H10
BALANCER, WHEEL NO.1 | 10G
$7.85¢3 925
1
#20
43226-73H10
BALANCER, WHEEL NO.3 | 30G
$5.60¢2 800
1
