RADIATOR HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

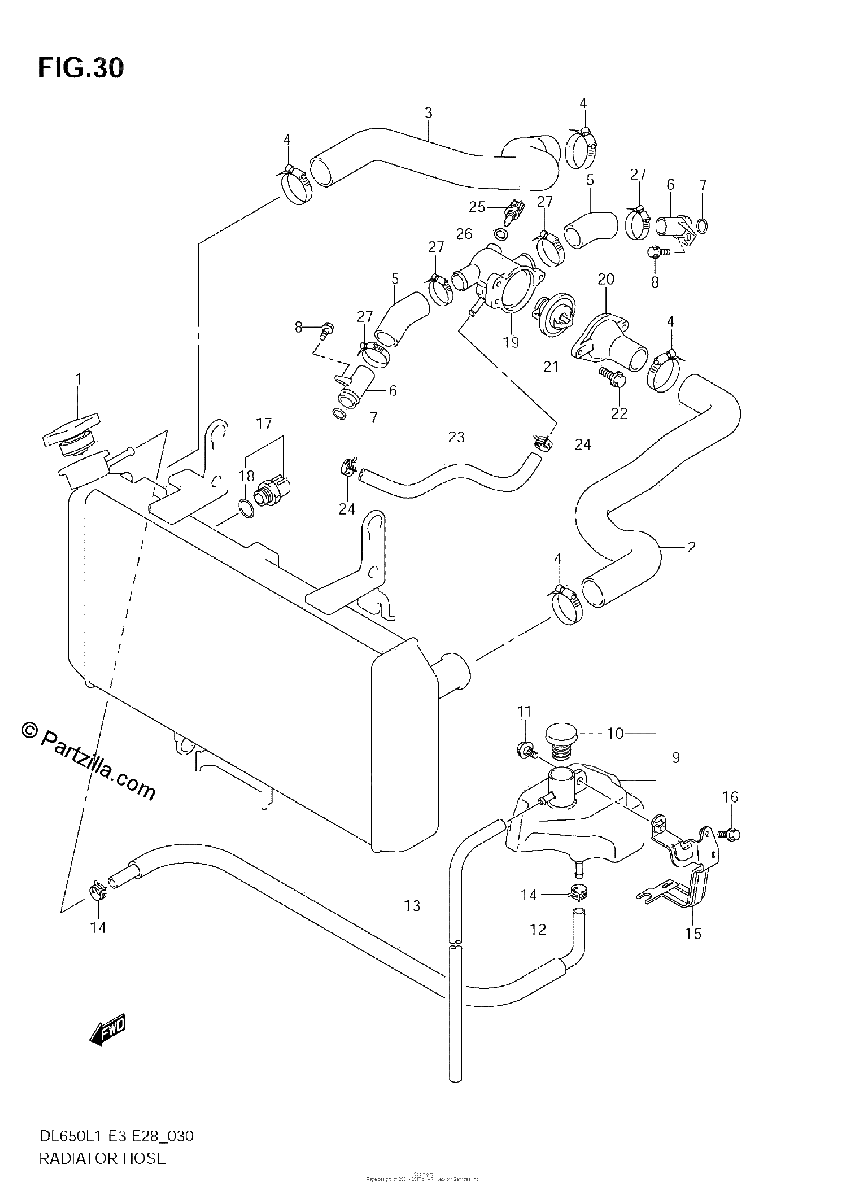

Diagrama de RADIATOR HOSE

Repuestos

#1
17730-08J00
CAP
$46.62¢23 310
1
#2
17851-27G00
HOSE, RADIATOR INLET
$52.73¢26 364
1
#3
17852-27G10
HOSE, RADIATOR OUTLET
$39.18¢19 590
1
#4
09402-38512
CLAMP
$12.86¢6 429
1
#5
17853-19F00
HOSE, CONNECTOR INLET
$16.18¢8 090
1
#6
17890-06G20
UNION, CONNECTOR HOSE
$16.30¢8 148
1
#7
09280-18008
O RING (D:3.2,ID:17.8)
$6.30¢3 151
1
#8
07130-0612A
BOLT
$2.99¢1 495
1
#9
17910-27G10
TANK ASSY, RESERVOIR
$70.12¢35 058
1
#10
17931-02FA0
.CAP
$6.11¢3 053
1
#11
09111-06085
BOLT (6X12)
$4.99¢2 496
1
#12
17900-27810
HOSE, RESERVOIR TANK INLET
$27.34¢13 668
1
#13
17982-38810
HOSE, RESERVOIR TANK OVERFLOW, NO.1
$21.56¢10 781
1
#14
09401-08411
CLIP
$2.12¢1 058
1
#15
17920-27G10
BRACKET, RESERVOIR TANK
No Disponible
1
#16
01550-0610A
.BOLT
$2.36¢1 179
1
#17
17680-50F10
SWITCH, RADIATOR FAN
$97.12¢48 559
1
#18
17689-50F00
.O RING
$3.02¢1 512
1
#19
17662-02F11
CONNECTOR, THERMOSTAT INLET
$79.87¢39 934
1
#20
17663-17G00
CAP, THERMOSTAT CONNECTOR
$36.43¢18 216
1
#21
17670-06G50
THERMOSTAT, WATER
$28.27¢14 133
1
#22
01550-0616A
BOLT
$2.36¢1 179
1
#23
17856-19F00
HOSE, CONNECTOR TO WATER PUMP
$21.25¢10 626
1
#24
09401-12414
CLAMP
$3.58¢1 788
1
#25
13650-57F00
SENSOR, WATER TEMP
$150.97¢75 486
1
#26
09168-12017
GASKET (12X17X1)
$2.36¢1 179
1
#27
09402-28513
CLAMP
$7.56¢3 778
1
