FRONT CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

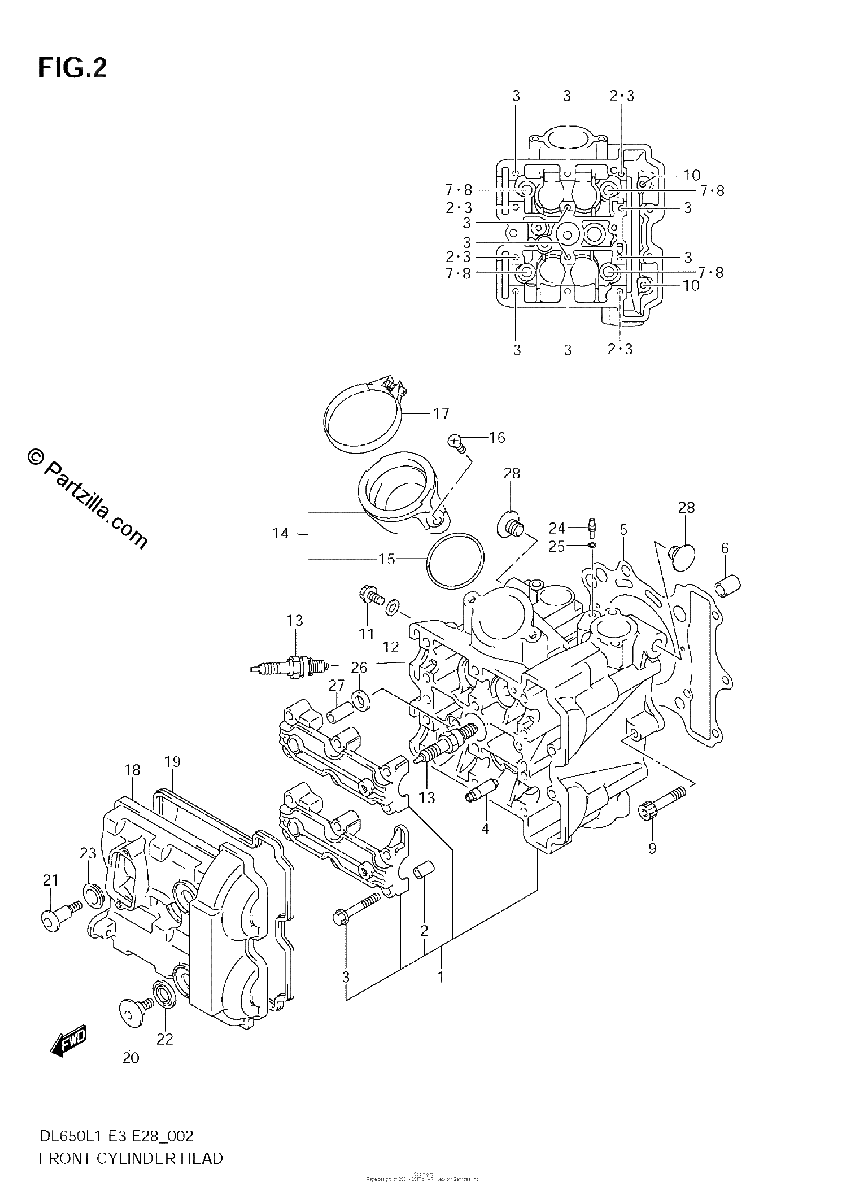

Diagrama de FRONT CYLINDER HEAD

Repuestos

#1
11101-17G20
HEAD ASSY, CYLINDER FRONT
No Disponible
1
#2
09206-08001
.PIN (8X11)
$2.12¢1 058
1
#3
09103-06266
.BOLT (6X40)
$2.55¢1 277
1
#4
11115-18D72
GUIDE, VALVE (OS:0.3) | OPT
$39.08¢19 538
1
#5
11141-20F00
GASKET, CYLINDER HEAD
$49.10¢24 553
1
#6
04211-13189
PIN
$2.62¢1 311
1
#7
09160-10082
WASHER (10.5X19X2) | FRONT
$1.93¢966
1
#8
09103-10272
BOLT (10X160)
$16.80¢8 401
1
#9
07120-0640B
BOLT
$3.65¢1 823
1
#10
09103-06103
BOLT (6X70)
$3.02¢1 512
1
#11
09103-06222
BOLT (6X12)
$2.74¢1 368
1
#12
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#13
09482-00459
SPARK PLUG (DENSO,U27ESR-N) | OPT,DENSO
$6.68¢3 341
1
#13
09482-00456
SPARK PLUG (CR8E)
$7.18¢3 588
1
#13
09482-00515
SPARK PLUG (U22ESR-N)
$6.54¢3 272
1
#13
09482-00516
SPARK PLUG (CR7E)
$6.89¢3 444
1
#13
09482-00458
SPARK PLUG (CR9E) | OPT
$6.89¢3 444
1
#13
09482-00457
SPARK PLUG (U24ESR-N)
$6.68¢3 341
1
#14
13101-17G10
PIPE ASSY, INTAKE FRONT
$68.71¢34 356
1
#15
09280-46006
.O RING (D:2.4,ID:47X42)
$7.58¢3 789
1
#16
02122-0616B
SCREW
$2.37¢1 185
1
#17
09402-62208
CLAMP
$7.22¢3 611
1
#18
11171-17G10
COVER, CYLINDER HEAD FRONT
$250.32¢125 160
1
#19
11173-19F01
GASKET, CYLINDER HEAD COVER
$37.40¢18 699
1
#20
09106-07021
BOLT (7X17.5)
$4.88¢2 438
1
#21
09106-07010
BOLT (7X31)
$5.11¢2 553
1
#22
11191-27E00
WASHER
$4.46¢2 231
1
#23
11192-13E00
CUSHION HEAD COVER BOLT
$4.76¢2 380
1
#24
09493-80005
JET(8)
$19.63¢9 815
1
#25
09280-04004
O RING (D:1.2,ID:4)
$2.04¢1 018
1
#26
11182-35F00
GASKET, 2ND AIR PASSAGE
$3.61¢1 805
1
#27
09206-08007
.PIN (6.2X8X16)
$3.14¢1 570
1
#28
11151-27G00
CAP
$4.58¢2 289
1
