CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

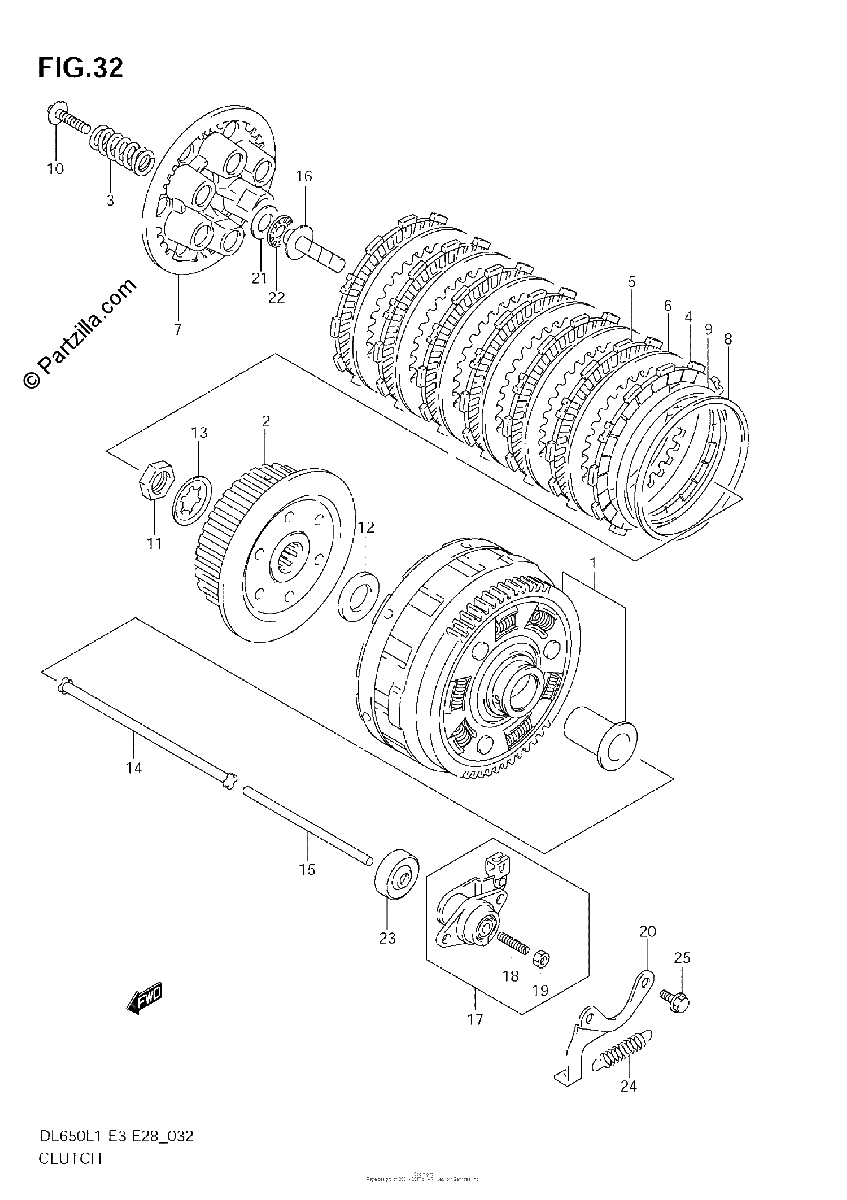

Diagrama de CLUTCH

Repuestos

#1
21200-17860
GEAR ASSY, PRIMARY DRIVEN
$534.81¢267 406
1
#2
21411-44101
HUB, CLUTCH SLEEVE
$89.80¢44 900
1
#3
21413-17G01
SPRING, CLUTCH
$8.00¢4 000
1
#4
21442-29F00
PLATE, CLUTCH DRIVE NO.2
$27.17¢13 587
1
#5
21441-29F20
PLATE, CLUTCH DRIVE
$27.17¢13 587
1
#6
21451-28C31
PLATE, CLUTCH DRIVEN (T:1.6)
$14.07¢7 038
1
#7
21462-14301
DISC, CLUTCH PRESSURE
$80.10¢40 050
1
#8
21471-17G00
SEAT, WAVE WASHER
$15.88¢7 938
1
#9
21472-17G00
WASHER, CLUTCH PLATE WAVE
$28.60¢14 300
1
#10
09116-06203
BOLT (6X30)
$3.75¢1 875
1
#11
09140-20001
NUT
$3.96¢1 981
1
#12
09160-20067
WASHER (20X36X3)
$12.78¢6 388
1
#13
09167-20009
WASHER
$2.63¢1 313
1
#14
23110-44111
ROD, CLUTCH PUSH RH
$19.33¢9 663
1
#15
23111-24A01
ROD, CLUTCH PUSH LH
$15.86¢7 931
1
#16
23121-44100
PIECE, CLUTCH PUSH
$34.77¢17 388
1
#17
23200-11D00
SCREW ASSY, CLUTCH RELEASE
$78.86¢39 431
1
#18
09134-06010
.SCREW (6X25)
$3.66¢1 831
1
#19
08310-00067
NUT
$2.39¢1 194
1
#20
23226-19F01
SUPPORT, CLUTCH RELEASE
$10.22¢5 113
1
#21
09160-15045
WASHER (15.5X28X1)
$4.58¢2 288
1
#22
09263-15003
BEARING (15X28X2)
$9.75¢4 875
1
#23
09285-06015
OIL SEAL (6X34X5.5)
$9.38¢4 688
1
#24
09443-08001
SPRING
$3.65¢1 825
1
#25
01500-0616B
BOLT
$3.59¢1 794
1
